20+ CAD Drawings of Decks You'll Want to Walk On

20+ CAD Drawings of Decks You'll Want to Walk On

Whether you're looking to build a new deck or add onto an existing one, we've rounded up materials that you'll find helpful for your next project.

*Free registration on CADdetails.com is required to obtain the models.


Metal Structural Floor Decks

 12766-091 3 Inch Composite Decking

12766-091 3 Inch Composite Decking

The following are profiles of corrugated panels for roofing, flooring and siding used as a frame to pour concrete over. They are available in stainless steel and galvanized steel. Custom shapes can be made to meet your specifications. Fax specs to (804) 285-0780 or call (800) 825-0717. Also, please view our detailed specs of each profile by either clicking on the name of each individual line drawing or by viewing our products & services page.


 1276-055 Type A Deck

1276-055 Type A Deck

The following are profiles of corrugated panels for roofing, flooring and siding used as a frame to pour concrete over. They are available in stainless steel and galvanized steel. Custom shapes can be made to meet your specifications.

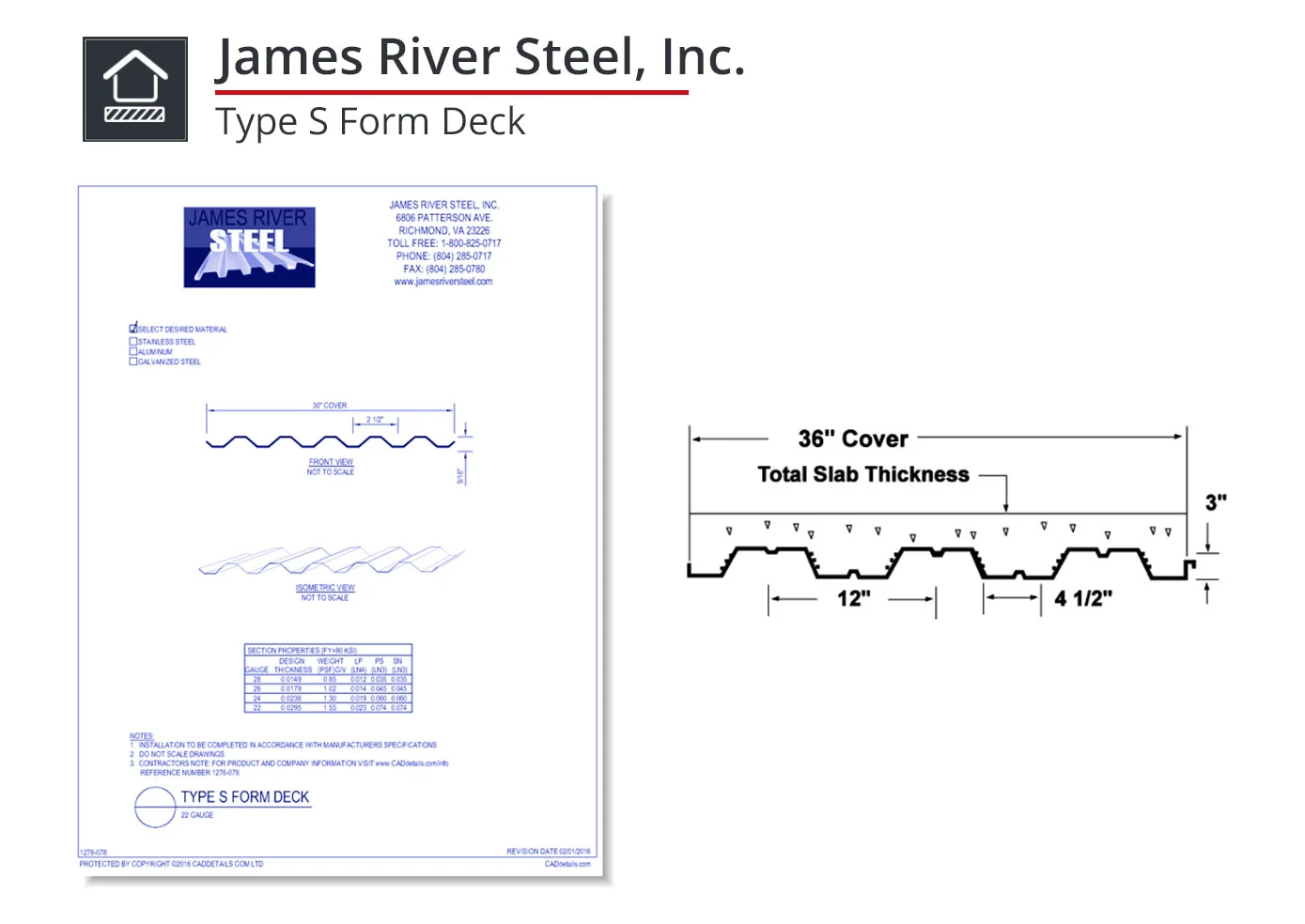

 1276-078 Type S Form Deck

1276-078 Type S Form Deck

The following are profiles of corrugated panels for roofing, flooring and siding used as a frame to pour concrete over. They are available in stainless steel and galvanized steel. Custom shapes can be made to meet your specifications.


Wood Structural Floor Decks

 1602-017 GeoDeck

1602-017 GeoDeck

GeoDeck was voted About.com’s 2012 Best Decking based on retention of original color, mildew resistance, sagging and flexing, insect resistance,and stain resistance. GeoDeck’s industry-leading, patented formula is the core of what makes us a cut above the competition.


 1602-028 TerrainDeck Perimeter Strip

1602-028 TerrainDeck Perimeter Strip

TerrainDeck™ is a reduced maintenance deck system that has the appearance of natural wood. TerrainDeck™ is offered in two naturally beautiful colors: Rustic Red and Copper Canyon. Feature strips, perimeter boards, and fascia boards are available to complete the TerrainDeck image.


 1602-022 TerrainDeck S4S

1602-022 TerrainDeck S4S

TerrainDeck™ is a reduced maintenance deck system that has the appearance of natural wood. TerrainDeck™ is offered in two naturally beautiful colors: Rustic Red and Copper Canyon. Feature strips, perimeter boards, and fascia boards are available to complete the TerrainDeck image.


Plastic Structural Floor Decks

 1276-082 1 1/2 Inch Composite Decking

1276-082 1 1/2 Inch Composite Decking

The following are profiles of corrugated panels for roofing, flooring and siding used as a frame to pour concrete over. They are available in stainless steel and galvanized steel. Custom shapes can be made to meet your specifications.


 1276-087 2 Inch Composite Decking

1276-087 2 Inch Composite Decking

The following are profiles of corrugated panels for roofing, flooring and siding used as a frame to pour concrete over. They are available in stainless steel and galvanized steel. Custom shapes can be made to meet your specifications.


 1276-091 3 Inch Composite Decking

1276-091 3 Inch Composite Decking

The following are profiles of corrugated panels for roofing, flooring and siding used as a frame to pour concrete over. They are available in stainless steel and galvanized steel. Custom shapes can be made to meet your specifications.


Wood Composite Structural Floor Decks

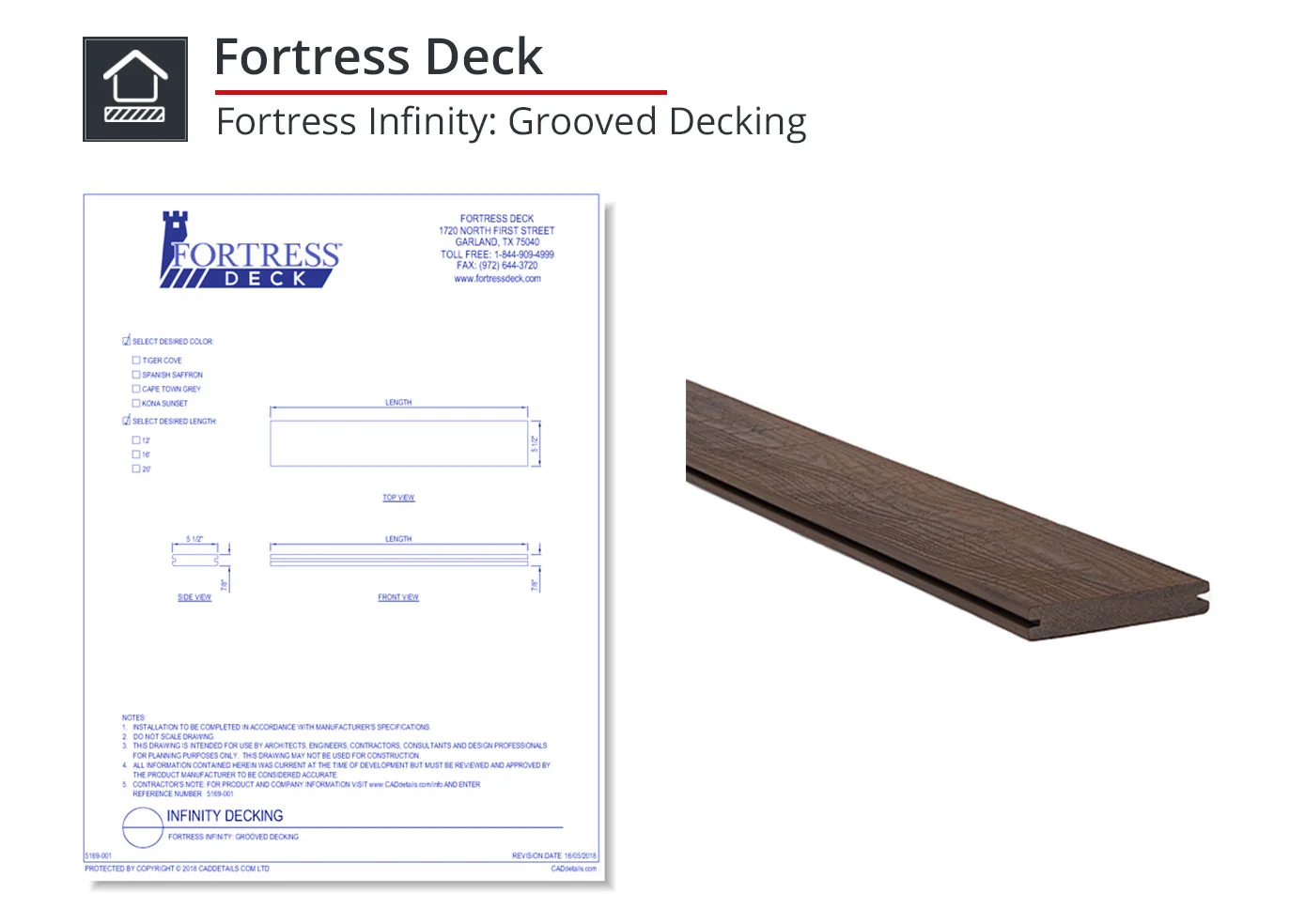

 5169-001 Infinity Decking

5169-001 Infinity Decking

FORTRESS INFINITY GROOVED DECKING

  • 0.91”H x 5.5”W
  • 12’ / 16’ / 20’ lengths
  • Grooved, dual finished boards
  • Designed for use with hidden Hulk fasteners for a clean, fastener-free surface.

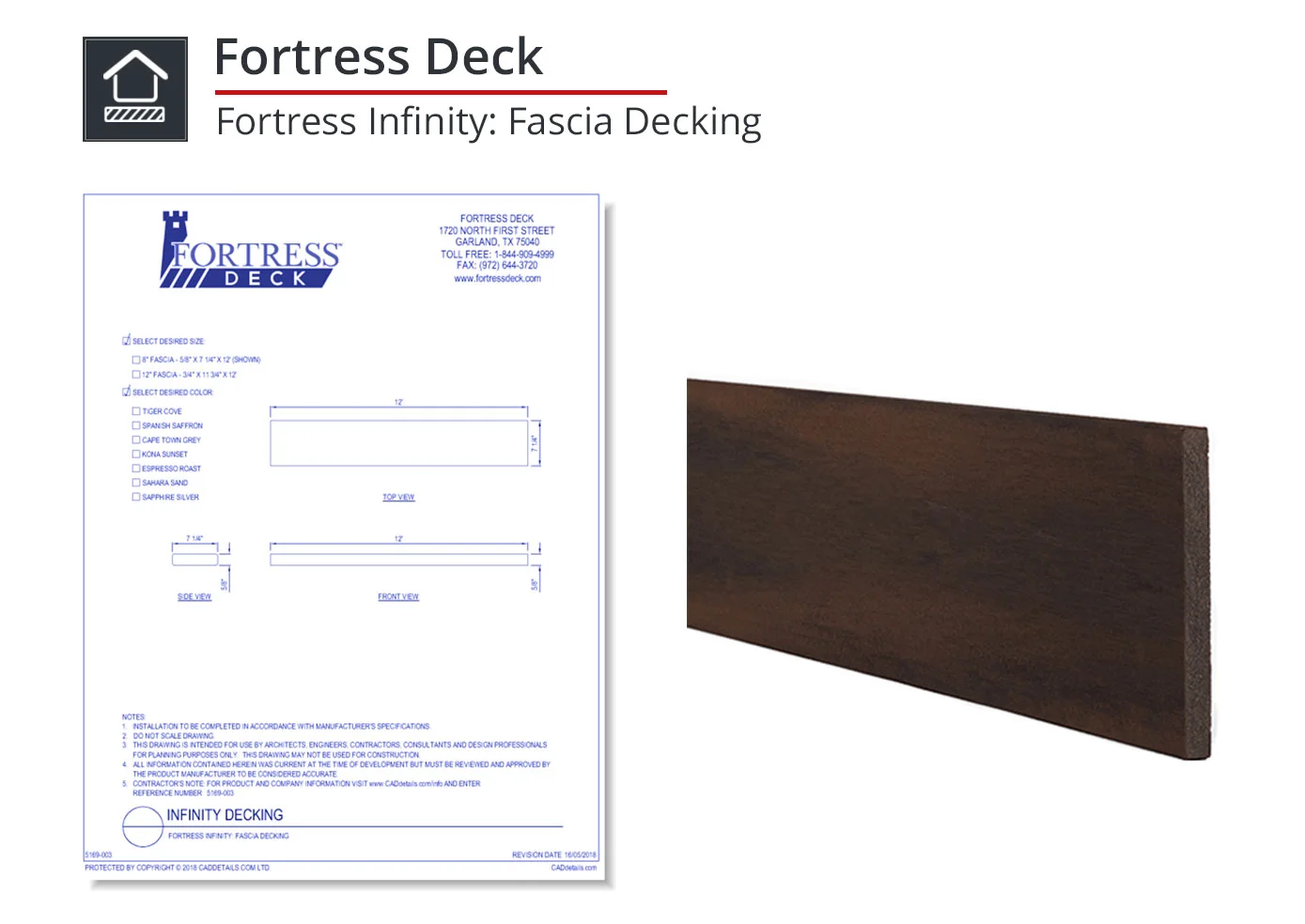

 5169-003 Fortress Infinity: Fascia Decking

5169-003 Fortress Infinity: Fascia Decking

 FORTRESS INFINITY FASCIA DECKING

  • 0.61”H x 7.25”W x 12’L
  • 0.71”H x 11.75”W x 12’L
  • Brushed surface fascia boards used for trim around decking and stair risers.

 5169-002 Fortress Infinity: Squared Decking

5169-002 Fortress Infinity: Squared Decking

FORTRESS INFINITY SQUARED DECKING

  • 0.91”H x 5.5”W x 20’ L
  • Dual-surfaced square deck boards for use as an accent, deck board, stair tread, or top cap.

Adjustable Deck Support

 512-059 Level.it Residential Deck Supports

512-059 Level.it Residential Deck Supports

Bison Level.It adjustable deck supports are the simple solution to your decking needs! Use on rooftops, balconies, over cracked concrete patios, even on-grade! Works with any surface material, from wood tiles, traditional stringer and plank decks, natural stone, composites or concrete. With Level.it, if you can dream it, you can do it!


 512-080 Versadjust Industrial Deck Supports

512-080 Versadjust Industrial Deck Supports

The Versadjust, adjustable deck supports V-Series line reaches heights from 2 ¼ inches to 24 inches, has a 1250 pound weight bearing capacity and contains built-in slope compensation from 0 – ½ inch per foot slope. Suitable for residential and commercial projects alike, Versadjust pedestals give maximum design flexibility for a variety of surface materials including wood deck tiles, concrete pavers and more. Wooden decking tiles supported by Bison Versadjust pedestals integrate seamlessly creating a roof deck system that is as simple as it is beautiful.


Bridge Decking

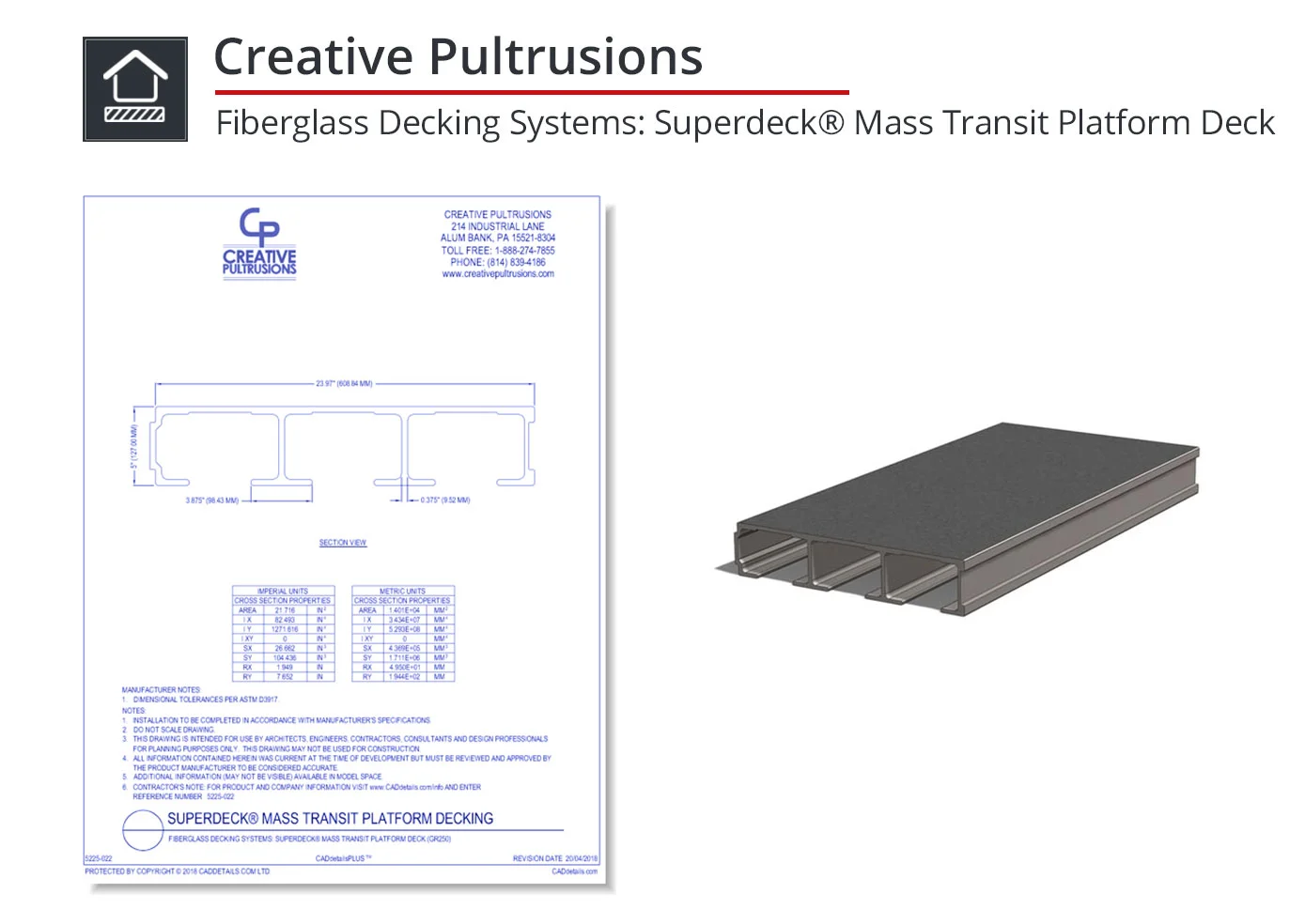

 5225-022 Superdeck Mass Transit Platform Decking

5225-022 Superdeck Mass Transit Platform Decking

The FRP deck was developed specifically for mass transit decking applications where corrosion control and downtime are of primary concern.

The fiberglass deck can be delivered prefabricated with an integral tactile and wearing surface ready to bolt into place with a unique connection system that offers performance and speed of installation.

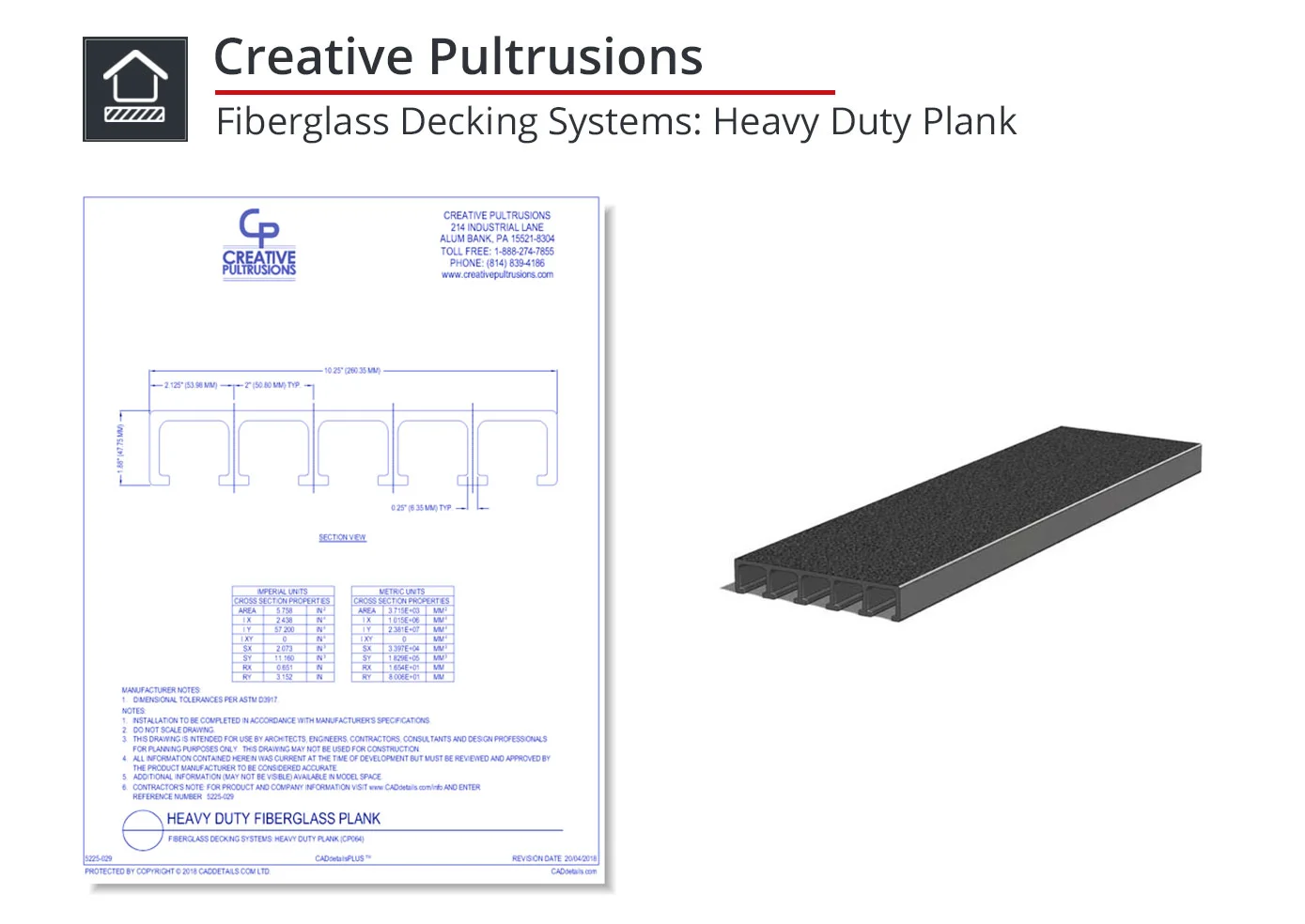

 5225-029 Heavy Duty Plank

5225-029 Heavy Duty Plank

Heavy Duty Plank is a heavy duty fiberglass deck section that was originally designed to replace wood decks on military trailers.

The heavy duty FRP deck is ideal for demanding applications such as rails-to-trails decks, trailer decking, trench covers and commercial decks and platforms.


 5225-021 Superdeck

5225-021 Superdeck

FRP deck that was designed, tested and evaluated for HS25-44 bridge deck applications. Superdeck® was designed to replace steel, concrete and aluminum decks where deicing salts create corrosion related issues.

Superdeck® is also ideal for reducing the dead load on existing structures. The FRP deck can be installed very quickly and by traditional attachment means that create composite action between the deck and girders.


Railing

 2003-116 Evolutions Rail Builder

2003-116 Evolutions Rail Builder

Some simply love the dramatic lines – others appreciate a practical place to set drinks or small plates. Designed for value-conscious homeowners, Evolutions Rail Builder Style offers the same clean, flat, continuous top rail design as Evolutions Rail Contemporary Style in an affordable alternative with metal infill and glass channel kit. Add lighting for drama and added safety or order custom curved railing for a unique look.

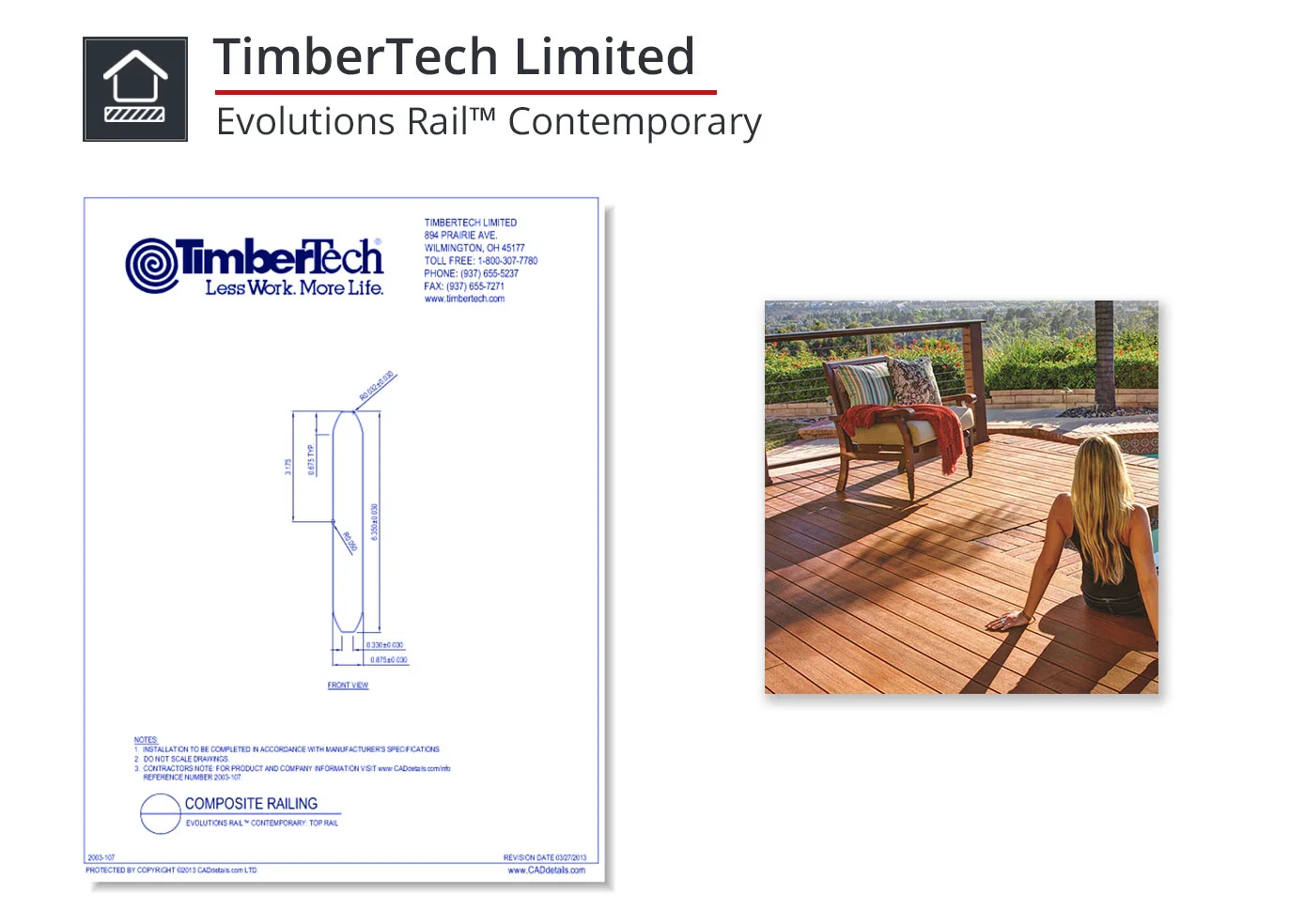

 2003-107 Evolutions Rail Contemporary

2003-107 Evolutions Rail Contemporary

High-style, modern aesthetics meet low-maintenance sensibility. Evolutions Rail is a composite railing system that features a sleek, continuous top rail – uninterrupted by posts – and ingeniously designed to accommodate your choice of four dramatic infill options: stainless steel cable, aluminum, composite balusters or glass channel kit. Homeowners can mix and match different rail component colors, curve the rail and add a deck lighting system.


 2003-007 RadianceRail

2003-007 RadianceRail

Smooth lines. No visible hardware. Both add to the high-end look of RadianceRail composite railing, TimberTech’s most sought-after railing product. RadianceRail composite railing colors match or complement all our planks. Homeowners can mix and match differing post and rail colors, curve the rail and add a deck lighting system for a truly upscale look that reflects their unique styles. Gates are also available.


Waterproofing for Decking

 2342-032 Duradek

2342-032 Duradek

Duradek, The Original sheet vinyl pedestrian traffic membrane for waterproofing decks and balconies was developed to solve leak problems 40 years ago. The old liquid applied and concrete topping products were the only options previously available, and they were failing repeatedly. Property owners and builders complained about leaks, unsightly appearance, expensive repairs and time-consuming maintenance.


 2342-040 Tiledek

2342-040 Tiledek

There is nothing like the look of tile or slate on that outdoor deck. But the beauty is soon forgotten when water pours into your home, seemingly through the tile. And then you discover that all the attention on the job was towards the tile with little thought given to proper waterproofing. Rot repair is intrusive and expensive, not to mention the cost of replacing the tile.


Looking for even more design files of doors? Browse CADdetails' CAD Drawings library, or immediately download a large selection of floor design files by clicking  here
