20+ CAD Drawings of Fireplaces to Keep You Cozy

20+ CAD Drawings of Fireplaces to Keep You Cozy

With the cooler weather approaching, it’s time to consider ways to keep cozy this winter. In this article we’ve gathered 20+ CAD drawings of various fireplaces and fireplace accessories that will heat up your home.

*Free registration on CADdetails.com is required to obtain the models.


Electric Fireplaces


This insert features Amantii’s exclusive FIRE & ICE® Flame Presentation that allows users to choose from a kaleidoscope of flame colors including rose, violet, blue, yellow and orange. Each insert fireplace comes with a large 1 piece logset installed. Optional decorative media of EMBER or FIRE & ICE® are available for purchase.



The WM-FM-48-5823-BG is a stunning electric fireplace featuring Amantii’s exclusive FIRE & ICE® flame presentation. The WM-FM series models can be built in flush or wall mounted with included brackets.

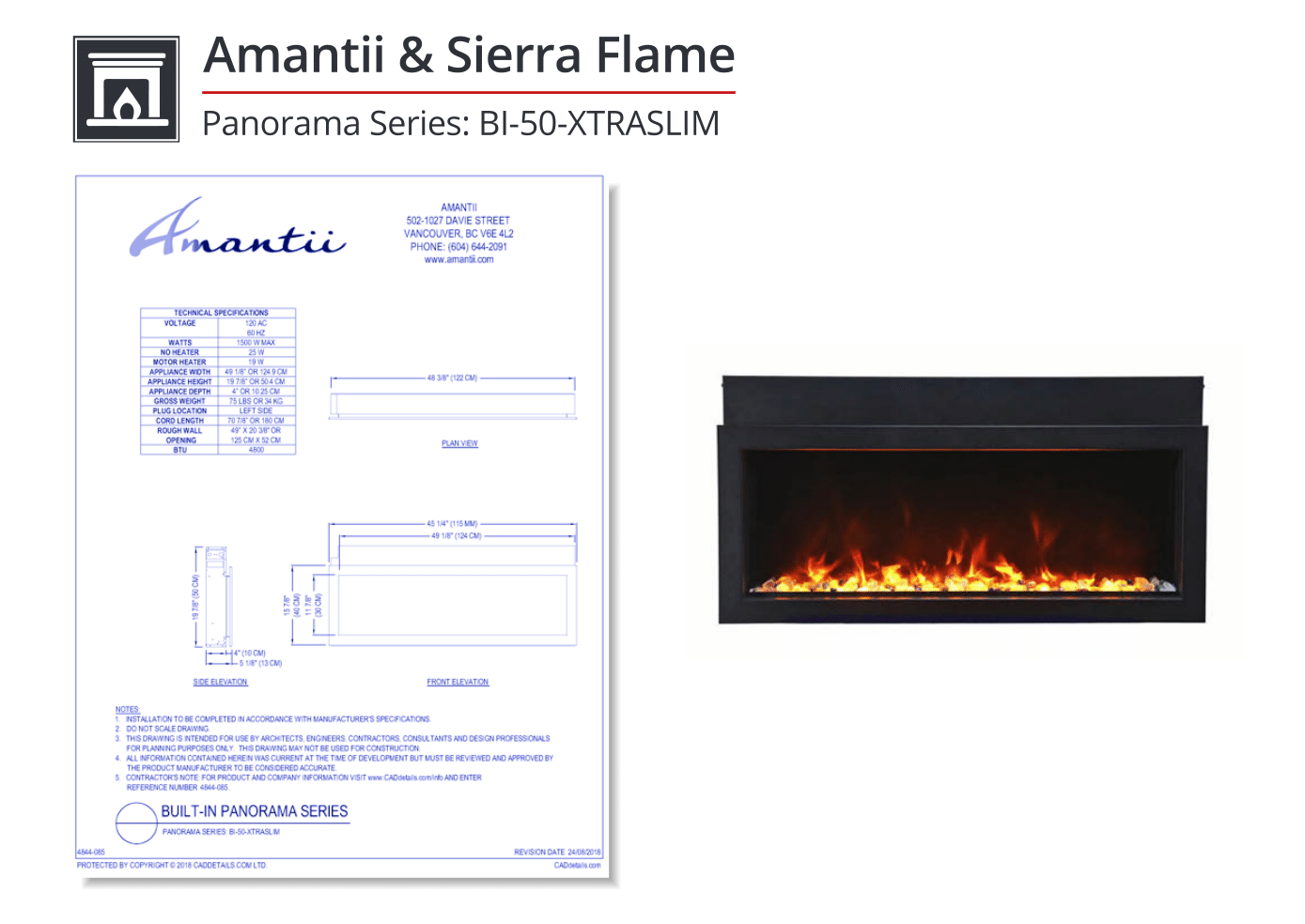

The BI-XTRASLIM, built by Amantii, is a stylish 4" deep electric fireplace series that makes a stunning addition to any space – Indoor or Outdoor – Available in 3 sizes, you will find a fireplace that is perfect for any space in your home, business or commercial space.


Fireplace Inserts


Since introducing the first Valor Legend insert model in 1991, we continue to adapt and improve on all aspects of our flagship line. With constant innovation in product design and function, our objective is to exceed the expectations of Valor customers on every level. Easy-to-use, energy saving features position the Valor G3 insert as a leader in efficient, effective zone heating - a true upgrade in heat control, product reliability and overall home comfort.



With over two decades of design innovation and four generations of Legend gas insert DNA, it’s no surprise that the Legend G3.5 exudes radiance, high efficiency and the ultimate in comfort control.



The Valor Legend insert family spans over two decades of reliable home comfort for North America, showcasing a wide array of diverse products. Considered the ‘big brother’ in this collection, the G4 Series is designed to fit existing large fireplace openings without sacrificing presence and performance. The result, an impressive flame viewing area highlighted by a proportional surround that compliments, not overpowers.


Fireplace Mantels


A juxtaposition of various architectural styles, the Livorno stone fireplace surrounds are truly intriguing pieces to use when forming your space.



The reign of France’s Louis XVI brought about a revival of ancient Greek and Roman artistic styles, hence the Neoclassical period. The fluted Louis XVI mantel is a fine example of this style, with its attention to bold geometric shapes, and crisp rectilinear lines.



A step above stone fireplace mantels for sale locally and beyond, the elegant St. Charles combines elements from neoclassical and modern design to create a well-rounded handcrafted piece that appeals to even the most discerning creative eye.


Gas Fireplaces


The Champlain direct-vent gas stove delivers extraordinary heating power. A cast iron heat exchanger system increases warm radiant and convective airflow. The included remote control and optional convection blower allow you to maintain your desired comfort level.



The Stowe is a smaller sized freestanding gas unit – it performs with high results and will efficiently heat a large room or small home.



Panoramic three-sided viewing plus efficient performance.


Wood Fireplaces


The Renaissance Rumford® 1000 is the ideal wood-burning fireplace. Its patented design delights the senses with the sound of crackling wood, heat from its flame and visually offering the perfect focal point for any room. When the glass door is closed, there is no heat loss up the chimney, making it more efficient than a conventional masonry fireplace.



The Opel is our most popular fireplace. Part of the growing Opel family, the Opel 2C is a catalytic fireplace with elegantly shaped double doors.



The Pearl is crafted with the perfect combination of refined, yet rustic styling. Advanced wood burning technology restricts smoky emissions and maximizes heat efficiency. Capable of heating 1,500 square feet, the Pearl can be outfitted with an optional Heat Dump blower to ensure your comfort. Unlike a wood stove, excess heat from the fireplace can be drawn to the basement or an adjacent room with the flick of a switch.


Solid Fuel Fireplaces


Perfect for a large room or a smaller home, the Craftsbury heats with the classic good looks of embossed cast iron. Offering medium heating capacity and small dimensions, the Craftsbury is remarkably functional adaptable.



Our largest soapstone stove, the Equinox possesses the strength to heat your entire home. Pack the generous firebox and enjoy an unmatched, long-lasting HeatLife - true of only a Hearthstone



A true workhorse, the Mansfield is a top-seller among hearth professionals. Providing up to 14 hours of sustained heat on a single load of wood, the Mansfield delivers comfortable warmth throughout your home.


Fireplace Accessories

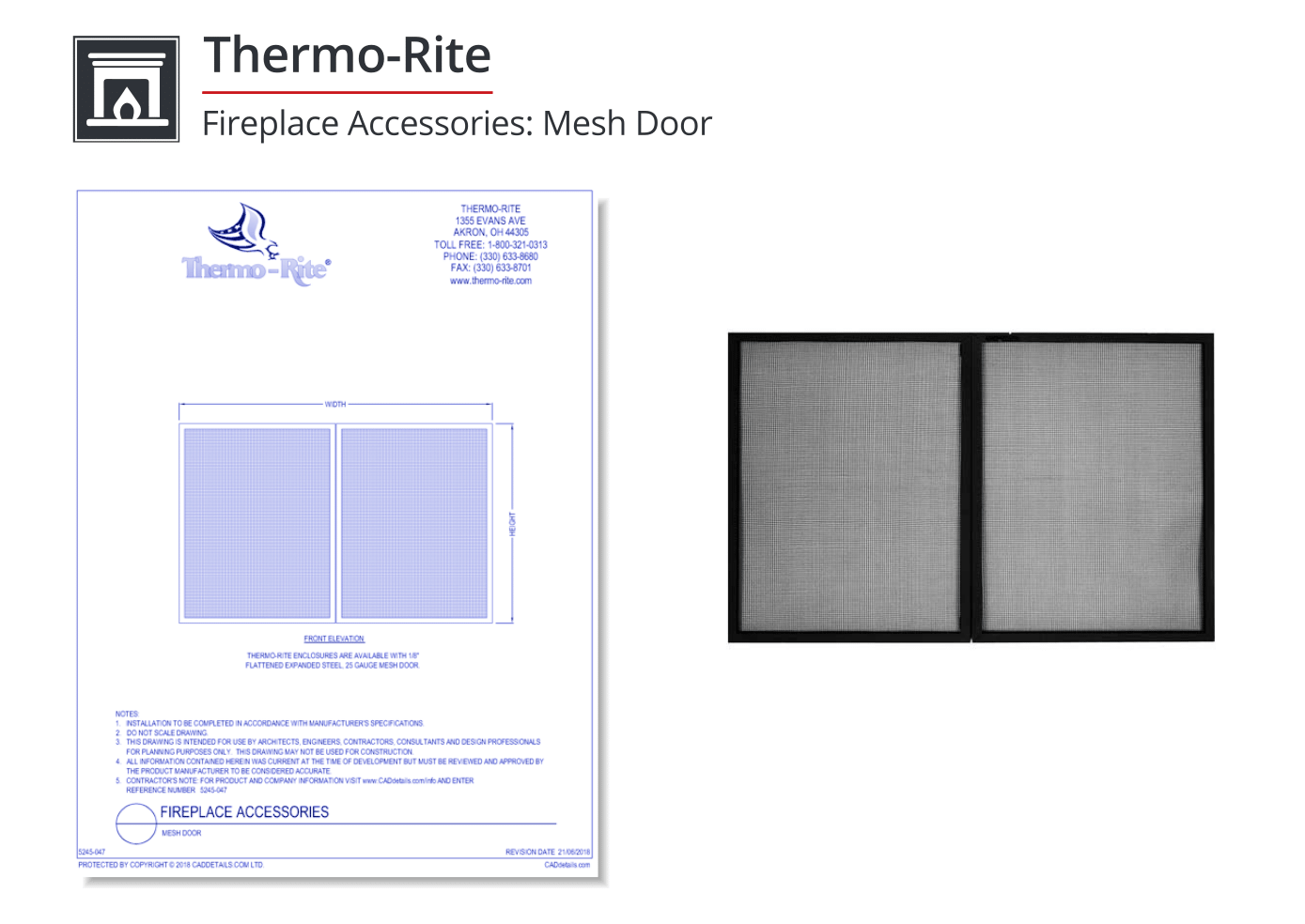

Thermo-Rite enclosures are available with 1/8" flattened expanded steel, 25 gauge mesh door.



Thermo-Rite enclosures are available with optional heavy 19 gauge mesh curtains or 1/8" flattened expanded steel, 25 gauge mesh door.



All Mesh Curtain Panels (24" wide) Heavy 19 gauge wire. Finished with rust preventative, high temp black enamel.


Ornamental Fire Bowls


The Asian Wok 31" w x 10" h with a 10" base shown in main photo in Bronze color, copper glass and an 84K BTU Cross fire burner.

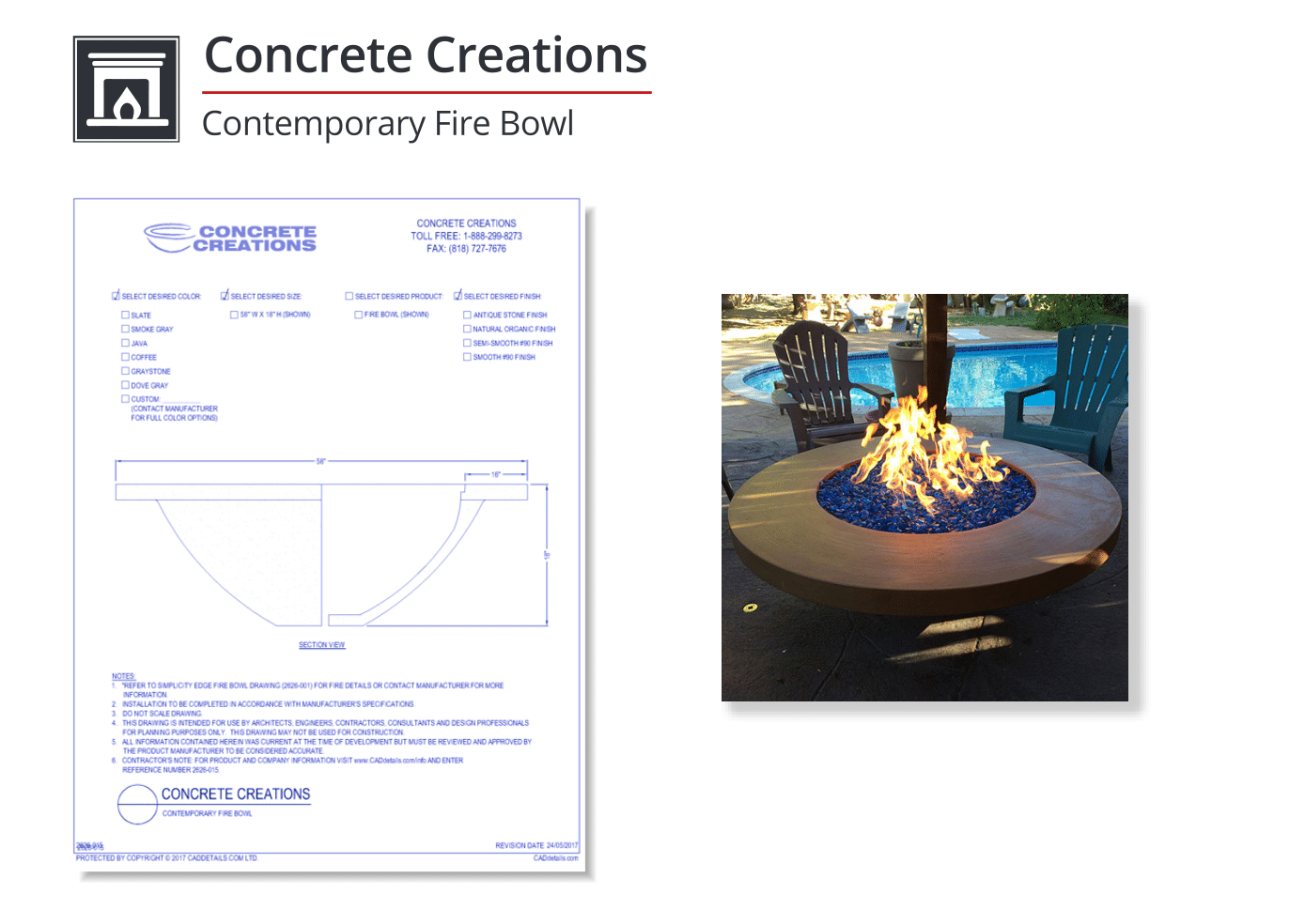

Contemporary Fire Bowl 56" x18" 11.5" lip, Smooth #90 finish, Spanish Gold color.



The Meron Bowl comes in a rounded design or a more flat design depending on the ratio between width and height.


Looking for even more design files of fireplaces? Browse CADdetails' CAD Drawings library, or immediately download a large selection of fireplace design files by clicking  here
