Looking to upgrade your business’ restroom facility, or build from scratch? These 20+ CAD Drawings will hep you with your project!

Brizo is a luxury fittings brand for those who understand that fashion isn’t merely about the clothes they wear—it’s about their entire lifestyle. To that end, Brizo designs and crafts high-end collections for the kitchen, bath and shower that prove form and function, in the right hands, can be one and beautifully the same.

TISSUE HOLDERS

Clarion Bathware manufacturers a wide range of gel-coated fiberglass and acrylic products for residential and ADA housing use. Clarion Bathware also offers an extensive selection of units designed for individuals who require assisted care.

BATHTUBS

Comfort Designs (CD) entered the senior living bathing fixture arena in the early nineties. It set out to become the bath choice of developers and designers and quickly became the leader, developing a wide array of code compliant and accessible showers and tub showers for both new construction and renovations.

SHOWERS

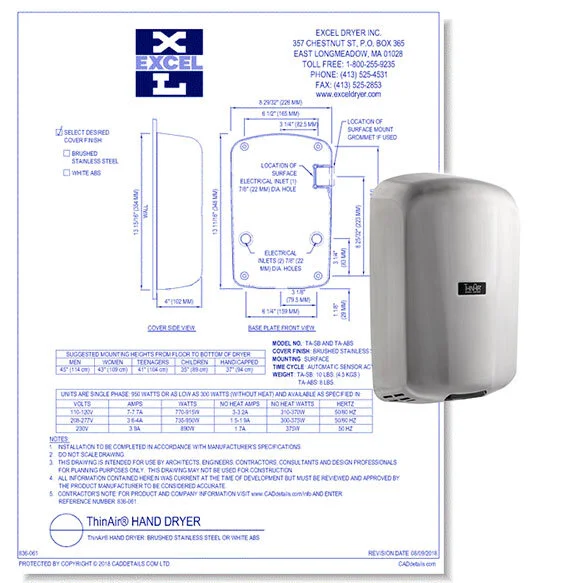

Excel Dryer, Inc., acquired by Denis Gagnon in 1997, manufactures the industry’s finest quality American made hand dryers and hair dryers featuring the XLERATOR® Hand Dryer, the New Industry Standard! XLERATOR Hand Dryers dry hands completely in 8 seconds, and use 80 percent less energy than conventional dryers.

HAND DRYERS

Headquartered in Muskego, Wisconsin, Inpro Corporation is the nation’s premier manufacturer of building products, offering the most choices and best service in door and wall protection, decorative surfaces, expansion joint systems, cubicle track & privacy curtains and signage & wayfinding. Inpro products are used in the healthcare, senior living, hospitality, education, government and retail sectors.

SINK & FAUCET COMBINATION

Knickerbocker Partition Corp. was incorporated in 1951 and is one of the oldest manufacturers of commercial restroom partitions worldwide. They have consistently been at the forefront of new technology and ideas; providing unparalleled speed and service.

SHOWER & TOILET STALLS / PARTITIONS

Mansfield Plumbing Products (MPP), founded in 1929, is a leading United States producer of top quality, high design, performance plumbing fixtures and fittings for use in residential, commercial and institutional markets. MPP is recognized for their strong commitment to service, quality and value.

TOILETS

Thunderbird Products is a manufacturer of copper roof drains, deck drains, parapet drains, roof vents, wall vents, gutters, and other copper items. Thunderbird roof drains and vents are made of superior long-lasting copper.

FLOOR DRAINS

Interested in more design files? Download CADdetails’ QuickPacks to instantly receive design files ready for use in your next project.
