Despite the cooler weather approaching, there’s still plenty of time to enjoy the sunshine while keeping cozy on your porch. In this post we’re taking a look at products you can incorporate into your next project such as porch lights, porch screens, balusters, and more.

*Free registration on CADdetails.com is required to obtain the models.


Balusters

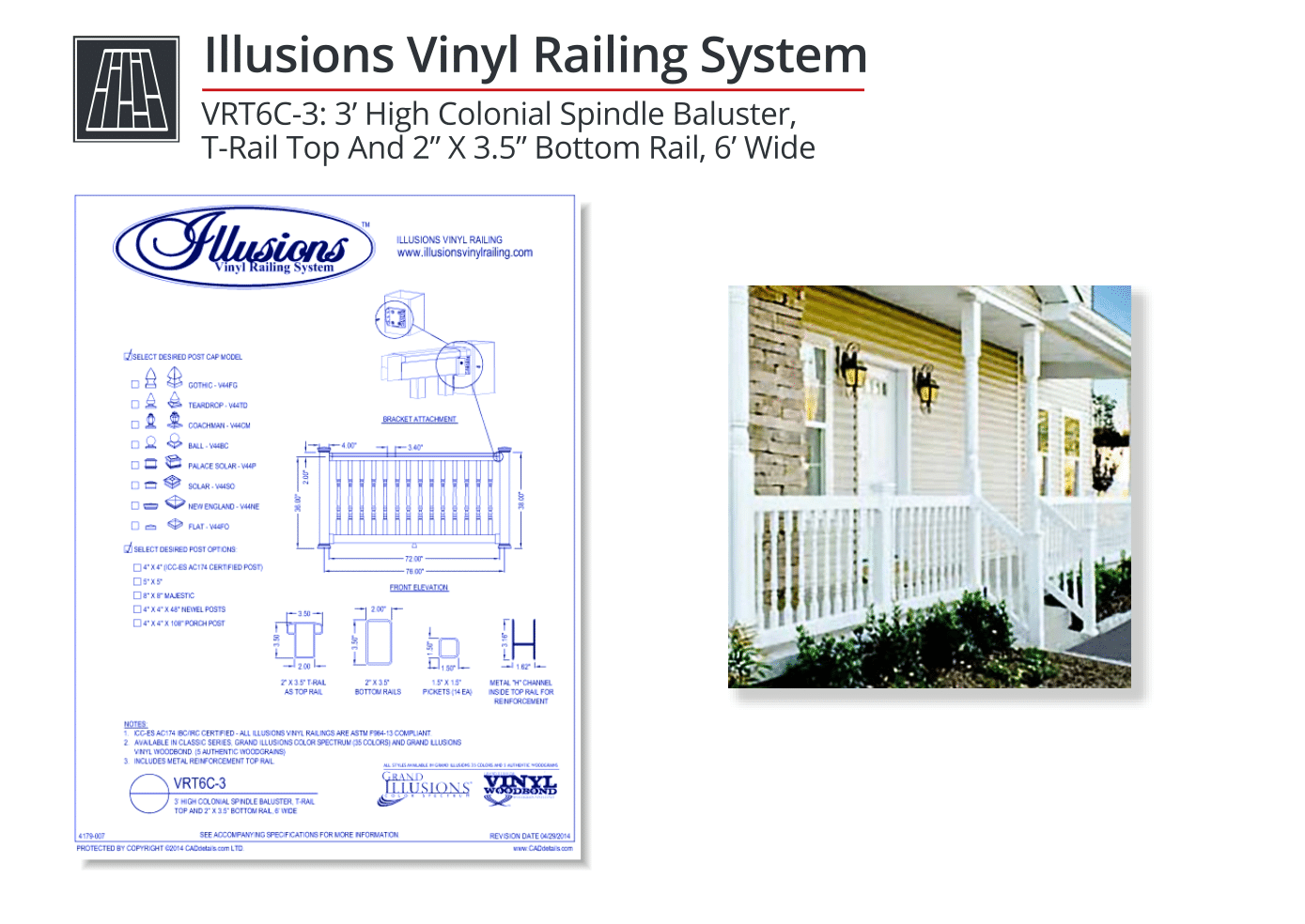

Illusions® Vinyl Railing System™ meets the highest building code standards in the nation. Approved for both commercial and residential applications, it is sure to provide a safe and attractive solution to all of your railing needs. Ask your fence dealer for it by name.



Illusions® Vinyl Railing System™ meets the highest building code standards in the nation. Approved for both commercial and residential applications, it is sure to provide a safe and attractive solution to all of your railing needs. Ask your fence dealer for it by name.

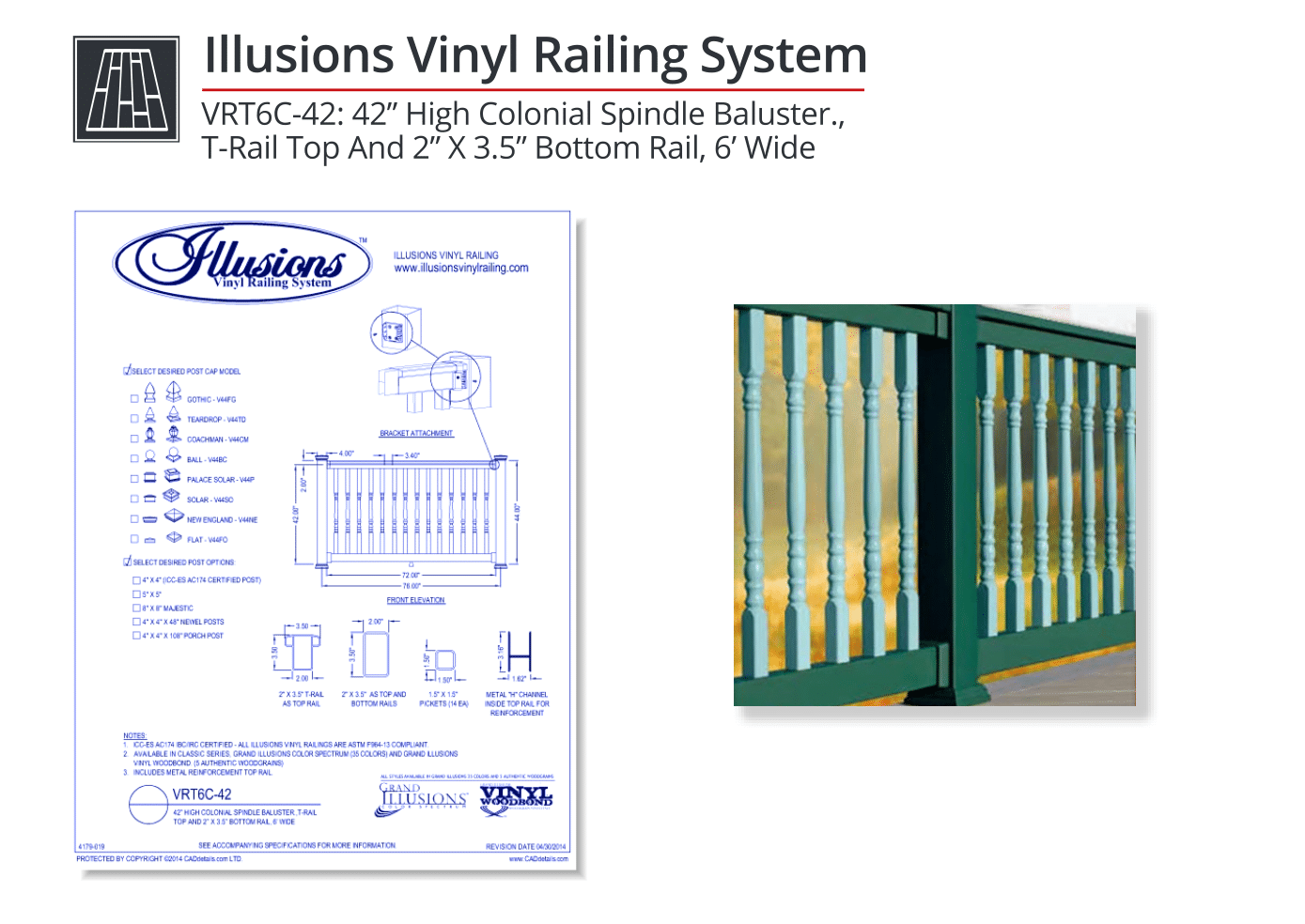

Illusions-Vinyl-Railing-System-High-Colonial-Spindle-Baluster-CADdrawing (2).png

Illusions® Vinyl Railing System™ meets the highest building code standards in the nation. Approved for both commercial and residential applications, it is sure to provide a safe and attractive solution to all of your railing needs. Ask your fence dealer for it by name.


Porch Posts

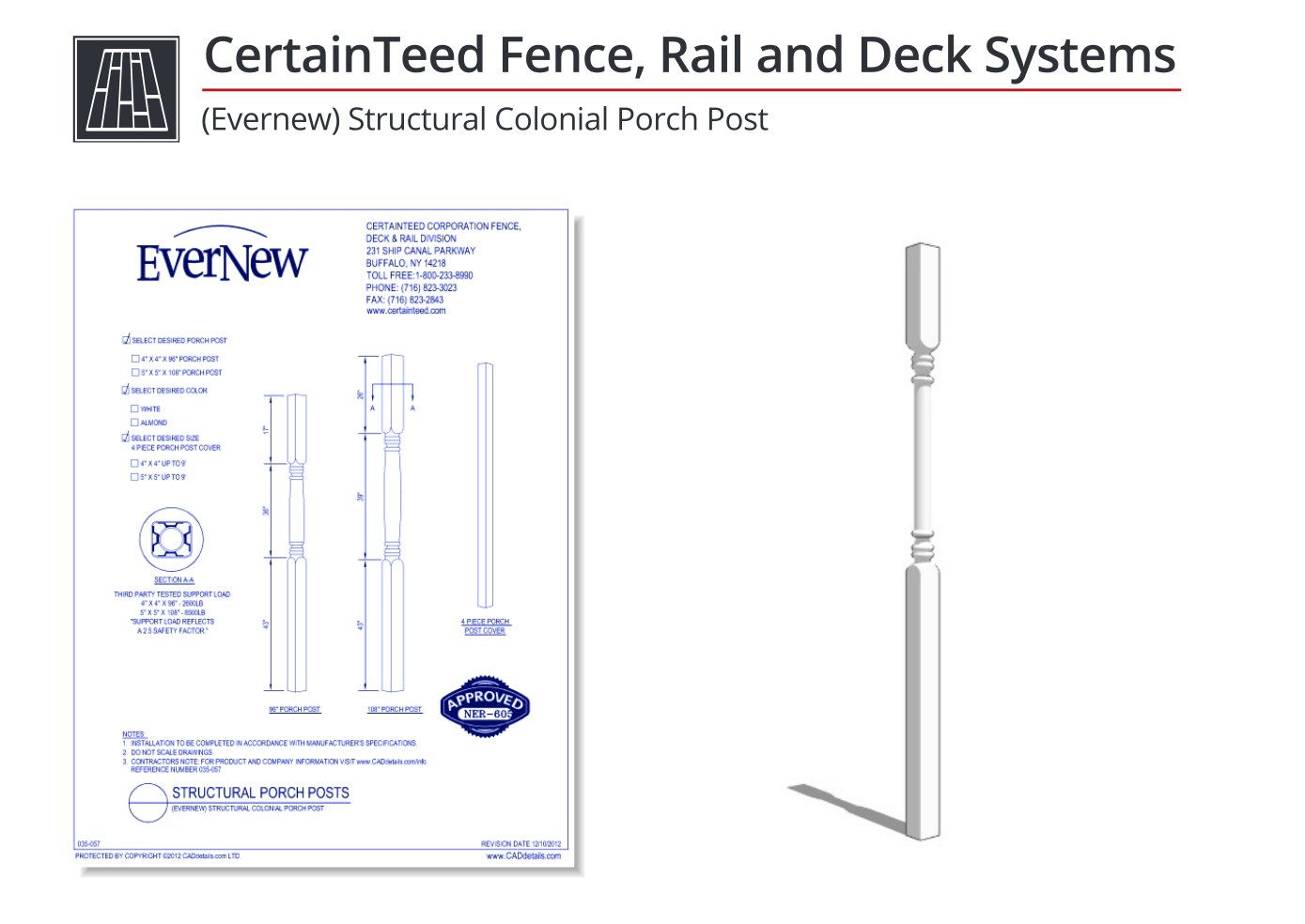

CertainTeed Structural Porch Posts, Columns and finishing accessories complement any project, no matter which railing style or system is chosen.



CertainTeed Structural Porch Posts, Columns and finishing accessories complement any project, no matter which railing style or system is chosen.


Porch Flooring

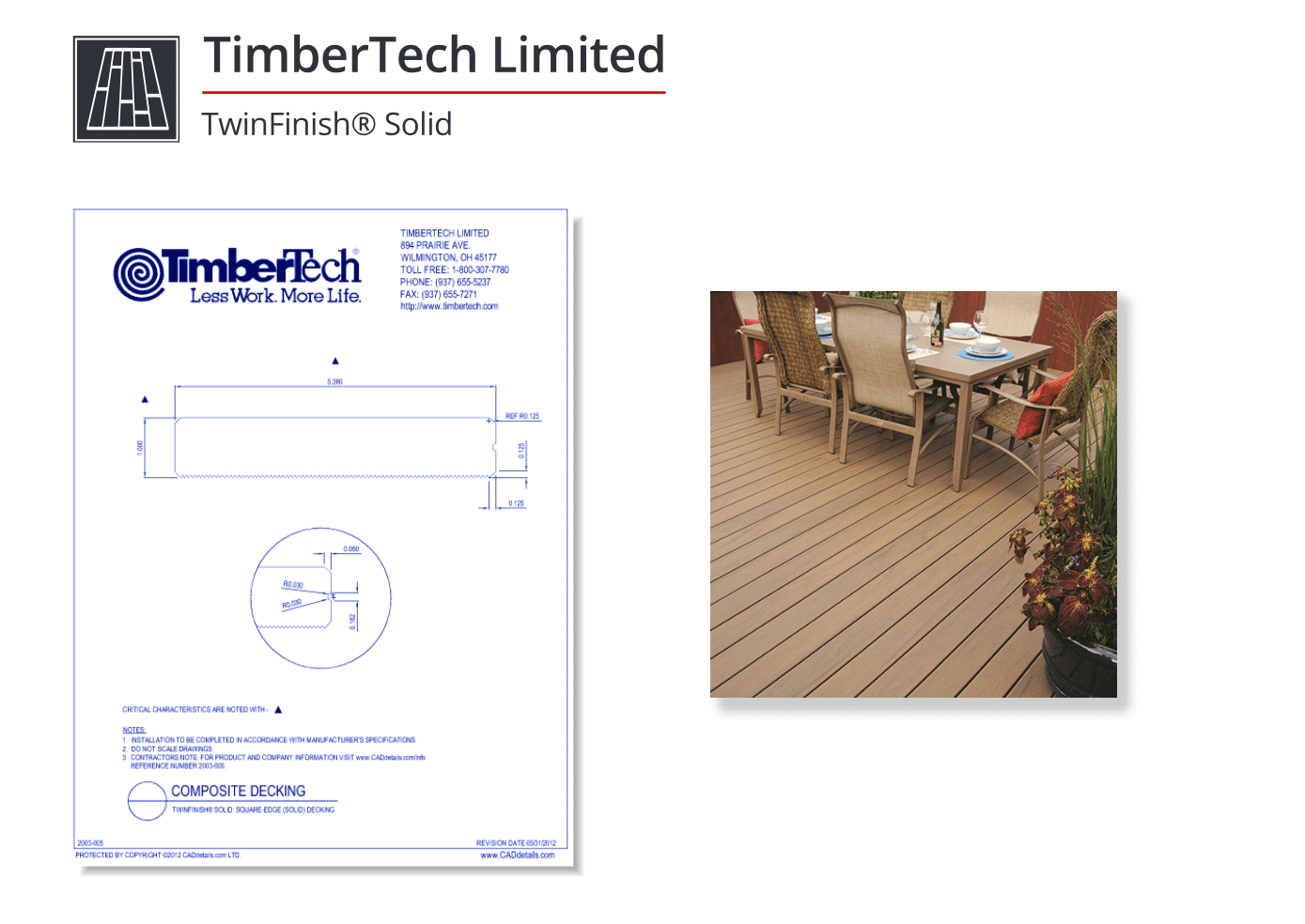

TwinFinish two-sided composite decking plank is perfect for building that place where you’re surrounded by style, but not overwhelmed by annual maintenance concerns. The plank’s VertiGrain side makes an attractive and slip-resistant walking surface, and the flip side’s serrated texture make the perfect contrast for stand-out deck built-ins.



TwinFinish two-sided composite decking plank is perfect for building that place where you’re surrounded by style, but not overwhelmed by annual maintenance concerns. The plank’s VertiGrain side makes an attractive and slip-resistant walking surface, and the flip side’s serrated texture make the perfect contrast for stand-out deck built-ins.


Railing

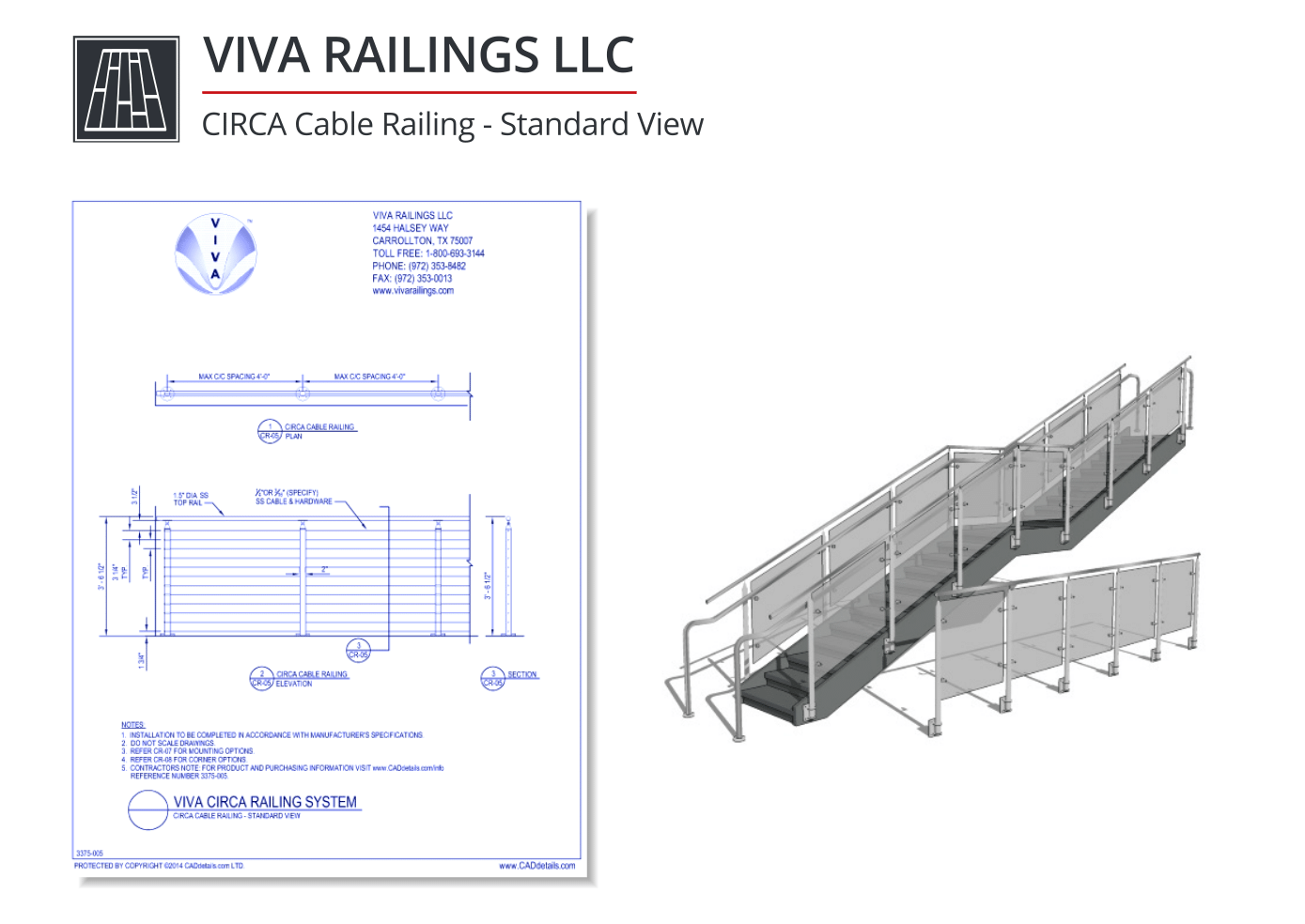

CIRCA™ System comprised of round tubular post, a simple yet highly desired look. This system allows for a wide choice of in-fill options of Glass, Metal Panels, Cable, Multi-line & Pickets. Railing in-fill between the posts is mounted via fixed point holders for mounting of Glass or any other in-fill of your choice. CIRCA™ Railing System is designed and engineered as per the ASTM E985 and IBC 2006 standards. Stainless Steel is available in Grade SS304 for interior and SS316 for exterior applications.

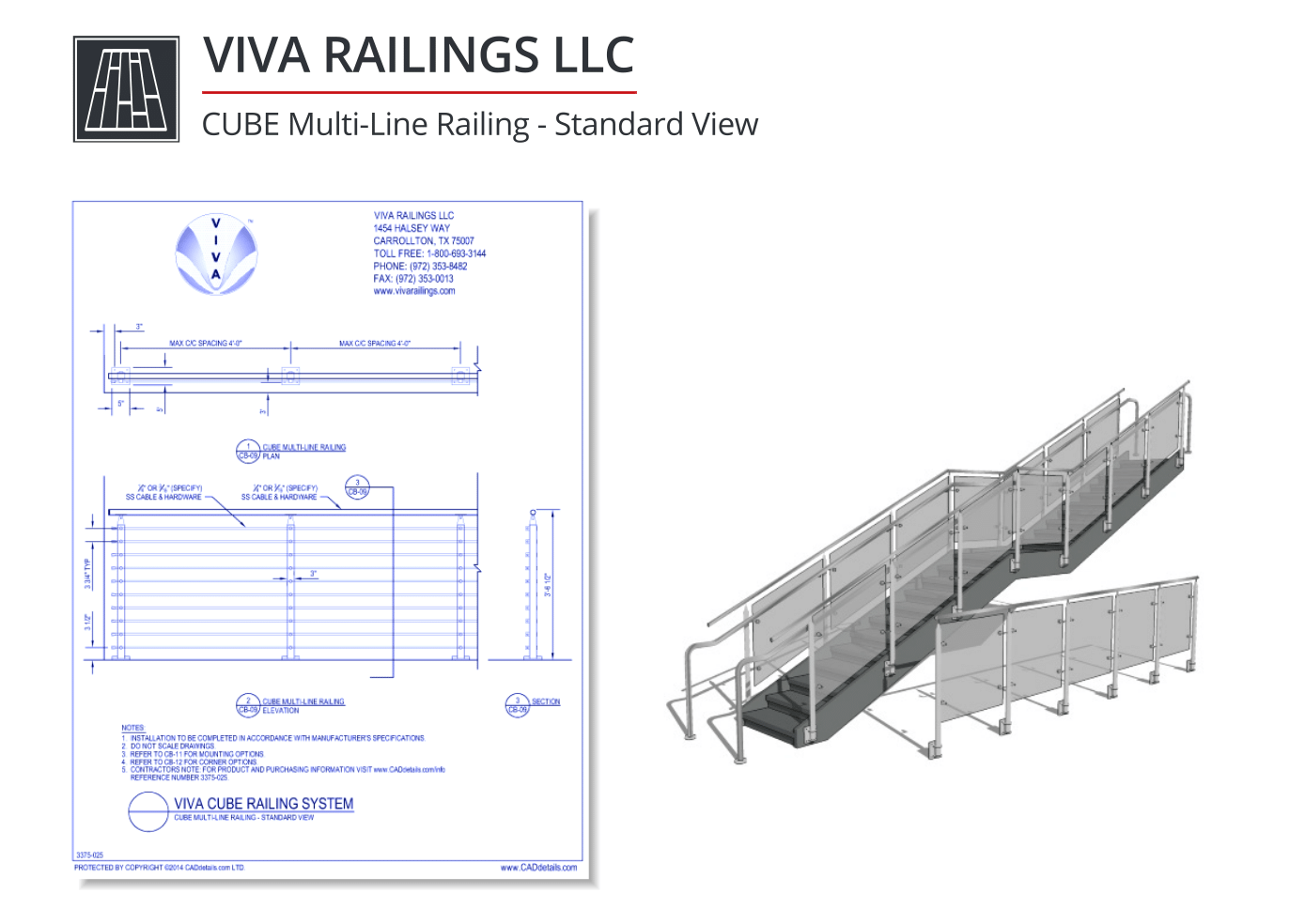

CUBE™ Railing System provides clean defined lines and a robust contemporary look. The system is made of 2”x2” square posts, terminating into monolithic pyramid top cap creating continuous clean lines throughout the components. Railing in-fill between the posts is mounted via fixed point holders for mounting of Glass or any other in-fill of your choice.

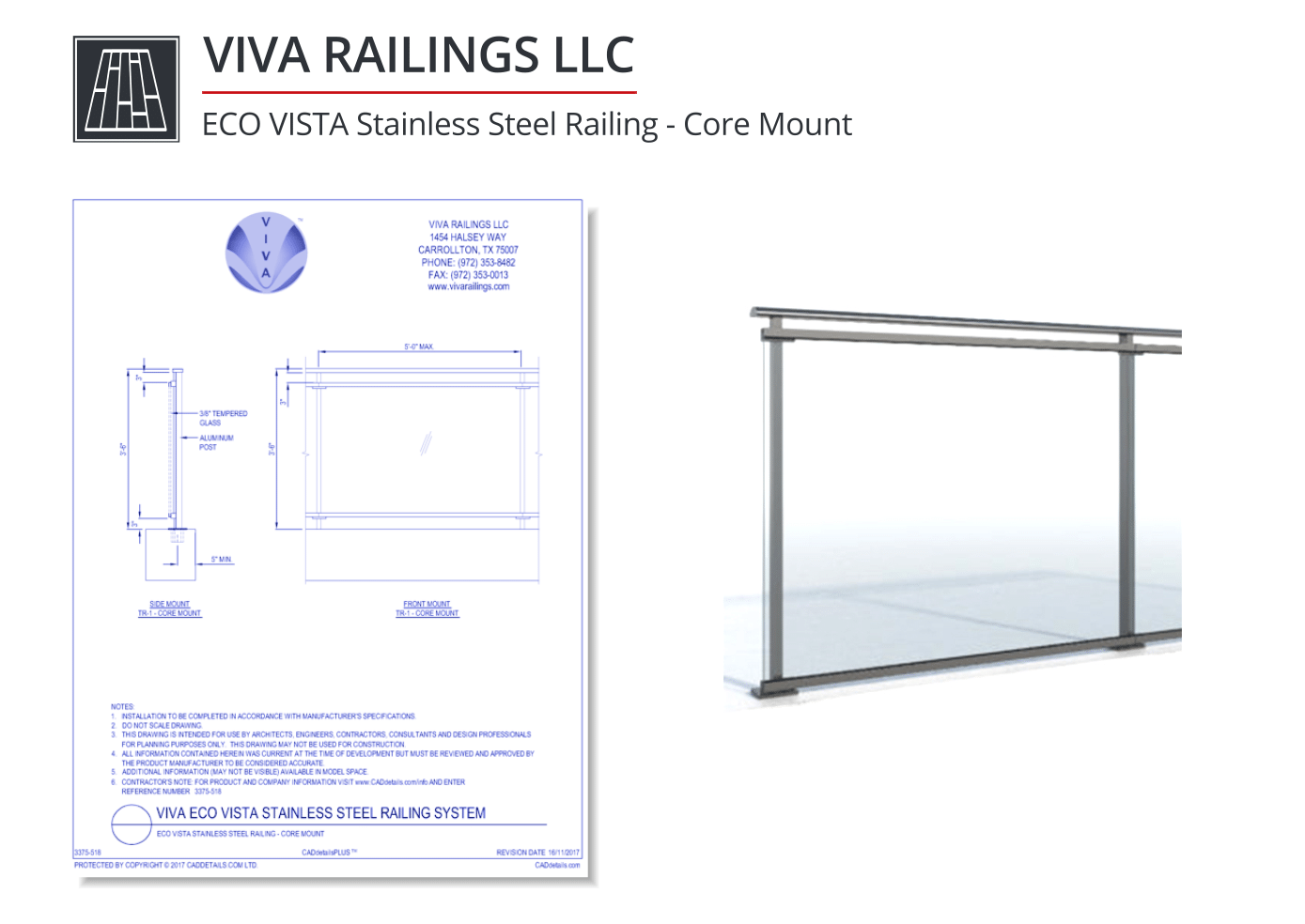

VIVA Presents Stainless Steel Modular Railing Systems for commercial & residential architectural railing applications on the interior & exterior. VIVA continuously develops new designs to allow architects, designers, owners, and contractors more choices and innovative new expressions for their impressive commercial projects.


Porch Screening

The screen porch system that’s simple to install and easy to maintain. Enjoy an attractive, open-air screen porch with a perfect fit that can be easily installed in hours.

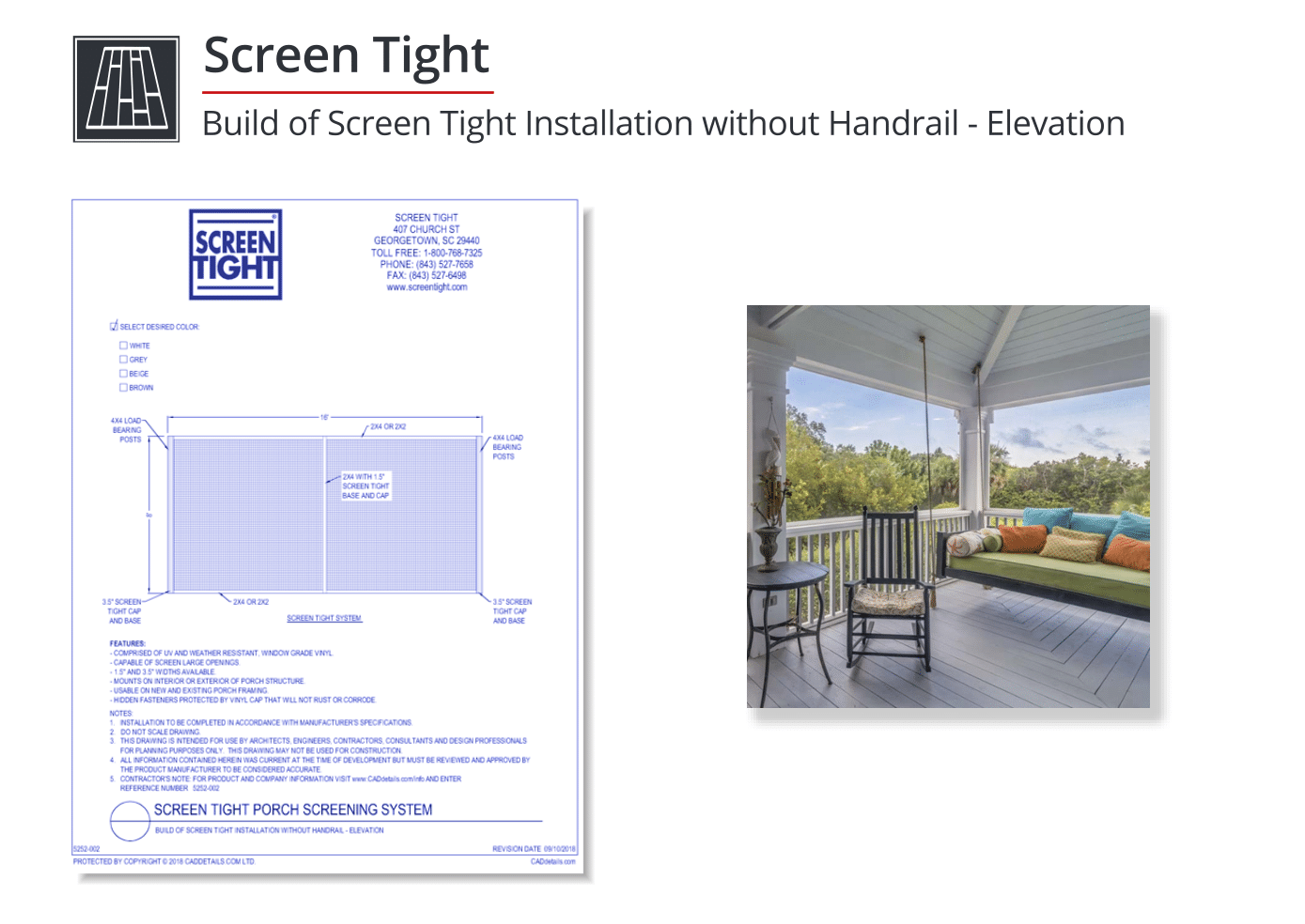

DIY homeowners and home professionals use Screen Tight to create beautiful screen porches, patios and other outdoor living spaces.


Avanti-Systems-USA-Frameless-Glass-Partition-Systems-Solare-Acoustic-Double-Glazed.jpg

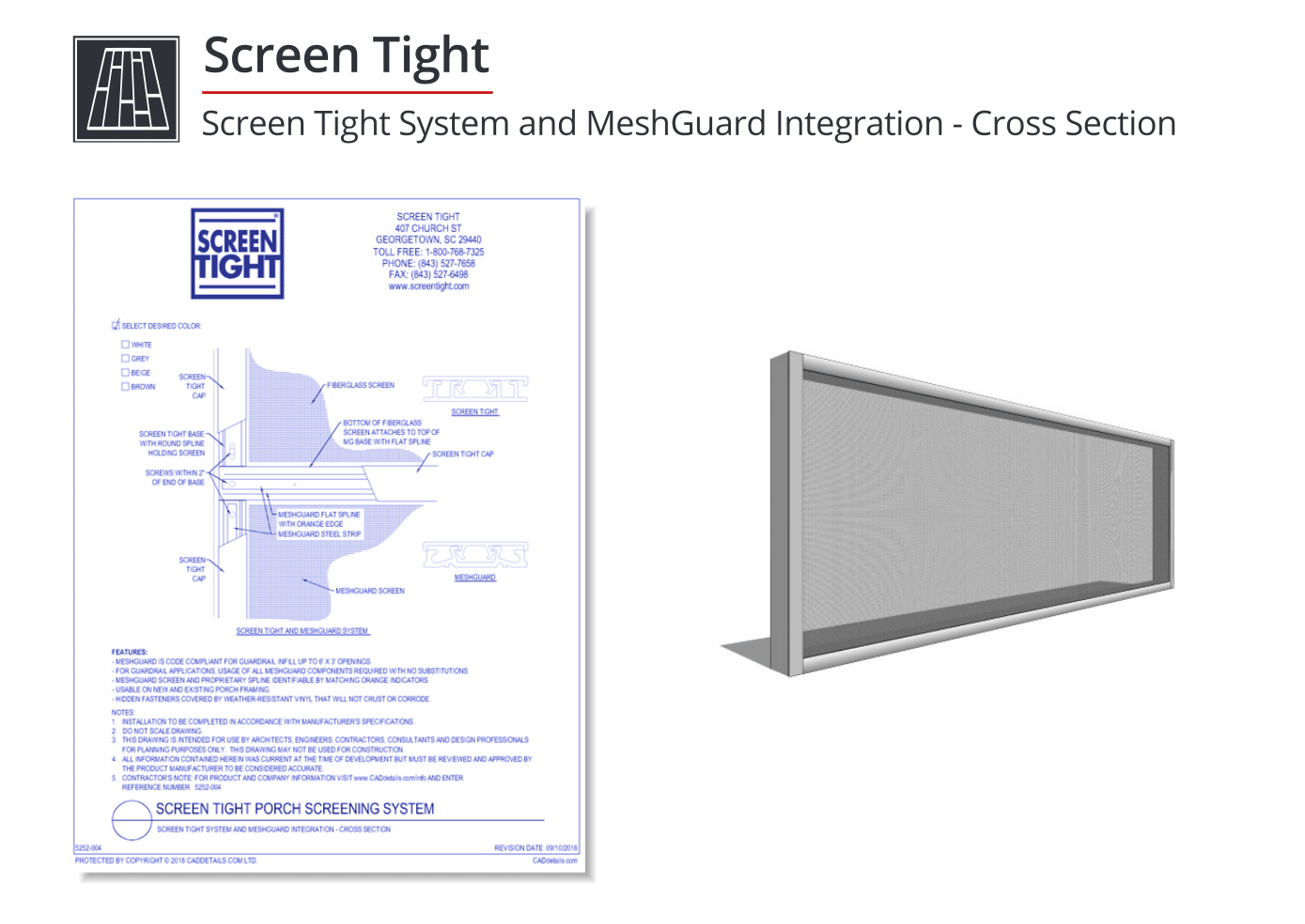

MeshGuard from Screen Tight is a revolutionary guardrail infill screening system. A new screening system created to eliminate the need for pickets, balusters and other visual obstructions below the porch guardrail.

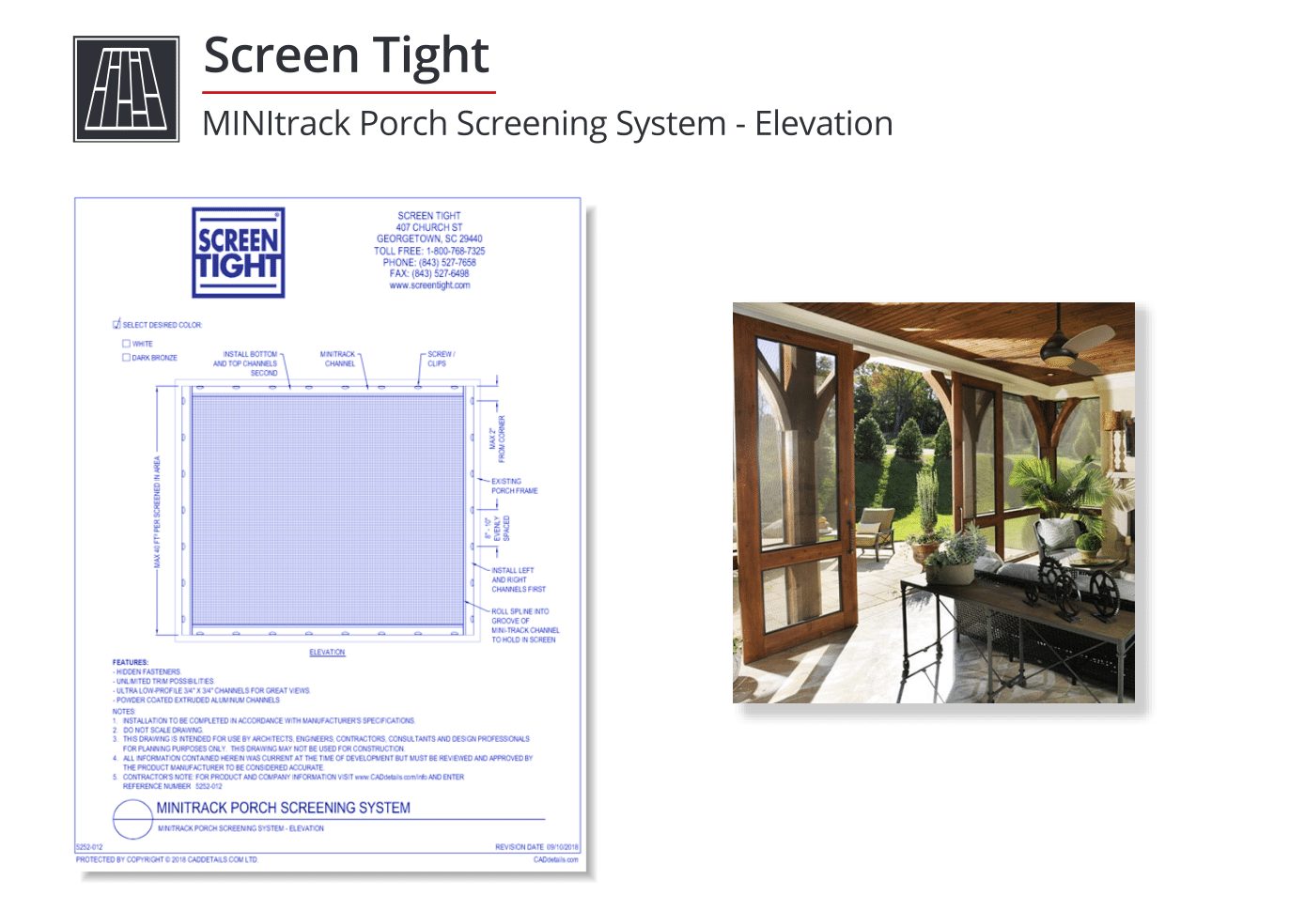

At just 3/4-in, the Mini Track system is an elegant and easy way to create a seamless screening environment. All fasteners are hidden for a streamlined, clean look.

This ultra low profile screening system is perfect for higher elevations and second story application. Mini Track consists of screws and the track base — that’s it! Both DIY installers and Screening Pros can handle a Mini Track installation.


Deck Support

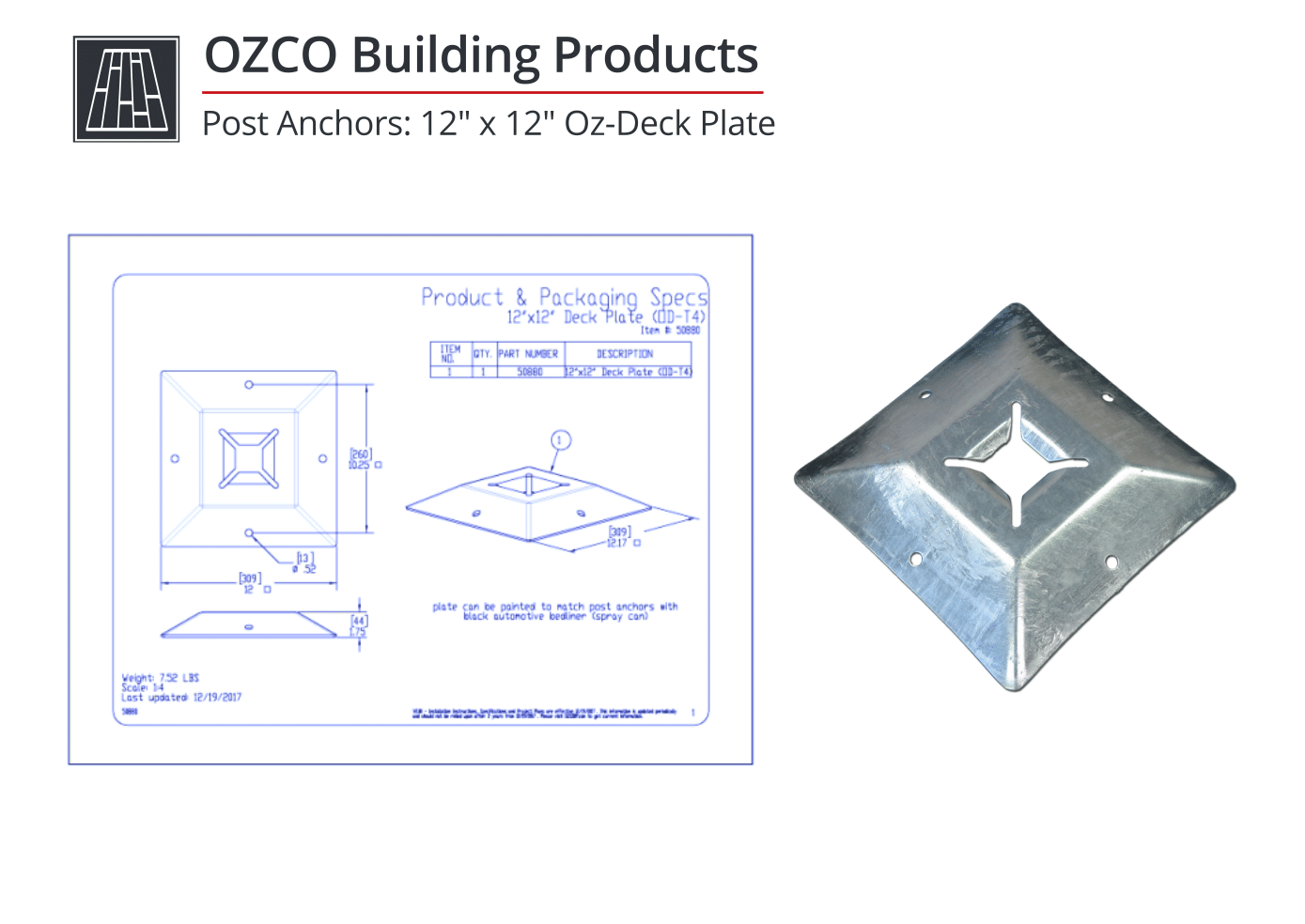

The OZ-Deck Foundation System 12 in. x 12 in. Deck Plate OD-T4 is an accessory for the T4-850 and T6-700 OZ-Post to provide load bearing capacity required for deck construction. OZ-Deck provides the same strength and stability of conventional construction techniques with less labor and lower cost.



The 36 in. – 6 in. x 6 in. OZ-Post Anchor T6-700 (5 1/2" x 5 1/2") is the only post anchors industry tested to be the very best. OZCO’s OZ-Post post anchors are a better option to post hole diggers and pouring concrete footings, providing superior support for your outdoor living spaces and future project.


Deck Tiles


As elegant in function as they are in appearance, Tile Tech IP Wood Tiles let you bring the natural beauty of exotic hardwood to any environment. IP Wood paving tiles are designed for constructing raised wood decks over exterior surfaces such as rooftops, terraces and plazas, in both residential and commercial applications.


Deck Lights


2700K warm-white LED Vintage Park Deck Light - 19th Century charm with the energy efficient benefit of LED technology.



ACRYLIC LENS STEP LIGHT/ LOUVERED STEP LIGHT - Designed to be integrated into outdoor steps. Casts a low, even spread of light. Available with louvered or white


Wood Composite Structural Floor Decks


FORTRESS INFINITY GROOVED DECKING

  • 0.91”H x 5.5”W

  • 12’ / 16’ / 20’ lengths

  • Grooved, dual finished boards

  • Designed for use with hidden Hulk fasteners for a clean, fastener-free surface.

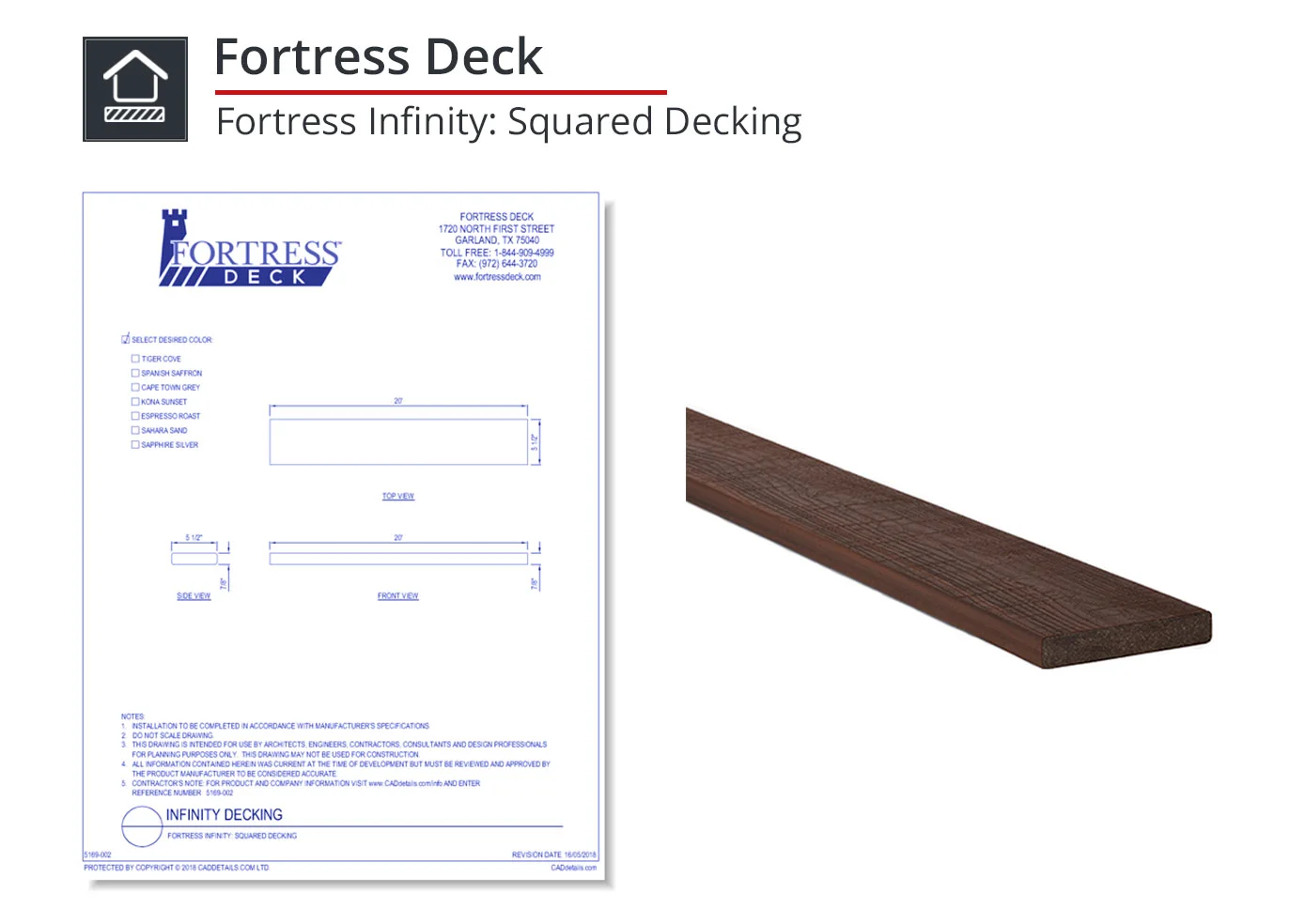

FORTRESS INFINITY SQUARED DECKING

  • 0.91”H x 5.5”W x 20’ L

  • Dual-surfaced square deck boards for use as an accent, deck board, stair tread, or top cap.


Looking for even more design files for your deck project? Check out our article “ “ or immediately download a large selection of decking design files by clicking  here
