Now that the beautiful weather is finally on the horizon, it's time to start thinking (or rethinking) landscape designs. In this article we've gathered 20+ CAD drawings that will help you with your landscape design needs and perhaps provide a little inspiration for you too.

*Free registration on CADdetails.com is required to obtain the models.


Landscaping Stakes



 1023-037 End Stakes

1023-037 End Stakes

Cover the cut off edge and secure the edging in place at that point.


 1023-038 Splicing Stakes

1023-038 Splicing Stakes

Attach two pieces of cut off edging and cover the gap where grade changes are made.


 1023-036 Corner Stakes

1023-036 Corner Stakes

Join two pieces of cut off edging to make a perfect 90º corner.


Landscaping Blankets

 4172-020 Filter Fabric

4172-020 Filter Fabric

DeWitt non-woven, needle-punched Fiber Fabric can be used as a stabilizing force to prevent unwanted movements in excavated areas such as roads, sidewalks, patios, and embankments. This product is excellent protection against damaging soil when placed around drainage pipes, retaining walls, and buried or exposed fixtures.


 4172-030 DWG315 Series

4172-030 DWG315 Series

Woven Geotextile Fabrics are high-quality polypropylene fabrics that stabilize the sub grade and separate soil from the aggregate. With everything in place, you'll experience a reduction in maintenance costs and extend life of your pavement structure. These fabrics work well for unpaved structures as well.


 4172-021 DNG105 Series

4172-021 DNG105 Series

Non-Woven Geotextiles are comprised of strong polypropylene staple fibers. They are designed to allow for drainage and soil filtration, separation, permanent erosion control, asphalt overlay, and cushioning.


Landscaping Stabilizers

 467-074 DIEHARD Transplant - Shrubs

467-074 DIEHARD Transplant - Shrubs

DIEHARD™ Transplant is a Granular inoculant used as a natural soil amendment used when planting trees and shrubs.




 467-075 DIEHARD Transplant - Plants

467-075 DIEHARD Transplant - Plants

DIEHARD™ Transplant is a Granular inoculant used as a natural soil amendment used when planting trees and shrubs.


 467-082 DIEHARD Root Dip

467-082 DIEHARD Root Dip

DIEHARD™ Transplant is a Granular inoculant used as a natural soil amendment used when planting trees and shrubs.


Landscape Edging

 3419-038 Steel Edging for Landscaping

3419-038 Steel Edging for Landscaping

Commercial steel edging will be provided by Border Concepts, Inc. Edging is sized per plan and detail. Edging is fabricated in 16' 0" sections with anchor stake loops stamped in face of sections, 32" on center. Use 15" tapered steel anchoring stakes (3/16" thick) provided by manufacturer. Edging and stakes are finished with exterior enamel paint.


 3419-001 Border King: Steel Edging for Pavement or Gravel

3419-001 Border King: Steel Edging for Pavement or Gravel

Commercial steel edging will be provided by Border Concepts, Inc. Edging is sized per plan and detail. Edging is fabricated in 16' 0" sections with anchor stake loops stamped in face of sections, 32" on center. Use 15" tapered steel anchoring stakes (3/16" thick) provided by manufacturer. Edging and stakes are finished with exterior enamel paint.


 3419-008 Roof Top Edging

3419-008 Roof Top Edging

Whether it’s a bottle and some mixers, or some cans, grab another drink without getting up. Featuring a 360 degree drink ledge, there is a spot for your drink, music player and other personal items. Made from our long-lasting and color-stabilized material, this Ice Bin Side Table is designed for in-pool use.


Landscape Stone Edging

 4801-001 Snapedge Original

4801-001 Snapedge Original

Our unique "Snip & Flex" feature allows total freedom when designing your driveway or sidewalk. You can create unlimited curves and angles in minutes, ensuring an aesthetically pleasing and structurally superior project. This flexibility and strength has made Snap Edge® the premier edging choice of professionals.


 4801-002 Stronghold Aluminum Paver Edging

4801-002 Stronghold Aluminum Paver Edging

 Made of non-rusting recycled aluminum. Completely hidden from view. One piece does straight or curved patterns. Will not warp in heat or crack in cold. Easy to insert piece to piece connection system. Stronghold can be installed under pavers (Although not recommended by ICPI).


 4801-004 Barrier Professional Landscape Edge

4801-004 Barrier Professional Landscape Edge

Designed for use with concrete pavers & gardens, Barrier prevents pavers and other materials from moving horizontally and provides a clean, permanent edge to your garden. Open base allows grass roots to help anchor edging in place.


Landscape Stone

 5133-019 XL Rock Panels

5133-019 XL Rock Panels

As the producer of this specialty crushed stone, we are able to monitor quality from the beginning of the manufacturing process all the way through to the final product. Whether it’s blasting at the quarry, crushing to a specific grade, drying a material, bagging and palletizing, or simply the storage of the finished product, every effort is made to ensure a clean consistent aggregate is delivered to our customers.


 5133-018 Standard Rock Panels

5133-018 Standard Rock Panels

As the producer of this specialty crushed stone, we are able to monitor quality from the beginning of the manufacturing process all the way through to the final product. Whether it’s blasting at the quarry, crushing to a specific grade, drying a material, bagging and palletizing, or simply the storage of the finished product, every effort is made to ensure a clean consistent aggregate is delivered to our customers.


Landscape Fabrics

 4172-003 Weed Barrier Pro - Black

4172-003 Weed Barrier Pro - Black

Designed specifically for professional landscapers, contractors and garden centers, DeWitt Weed-Barrier® Pro is available in black, white and brown. There's a color to fit every mulch or stone application. Specifically made as a landscape and garden fabric, DeWitt Weed-Barrier® Pro is UV and hydrophilic treated for water permeability.


 4172-001 Pro 5 Weed Barrier

4172-001 Pro 5 Weed Barrier

Dewitt Pro-5 Weed Barrier is the industry's best 5 oz. woven, needle punched, polypropylene fabric designed for professional and commercial use. Pro-5 conserves soil moisture, increases plant growth, prevents unwanted weeds from germinating and is approved by leading landscape architects and government agencies.

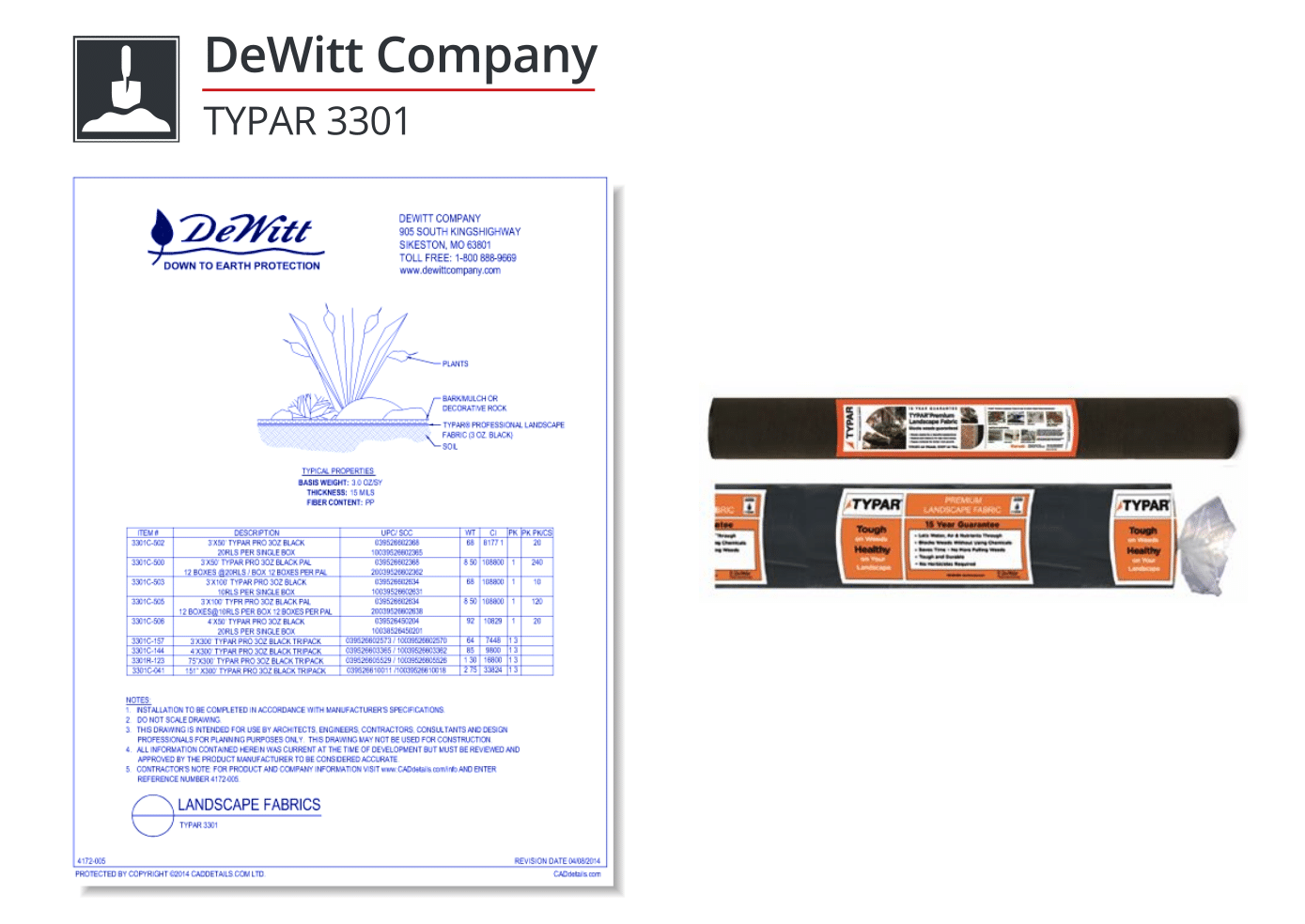

 4172-005 Typar 3301

4172-005 Typar 3301

Typar® Premium Landscape Fabric blocks weeds around plants; unlike plastic, lets moisture, nutrients and air pass through; and is guaranteed to last for 15 years with proper installation and maintenance.


Trees

 5112-034 Sycamore Tree

5112-034 Sycamore Tree

International TreeScapes offers the largest array of custom-made, museum-quality, artificial trees and plants in the industry.

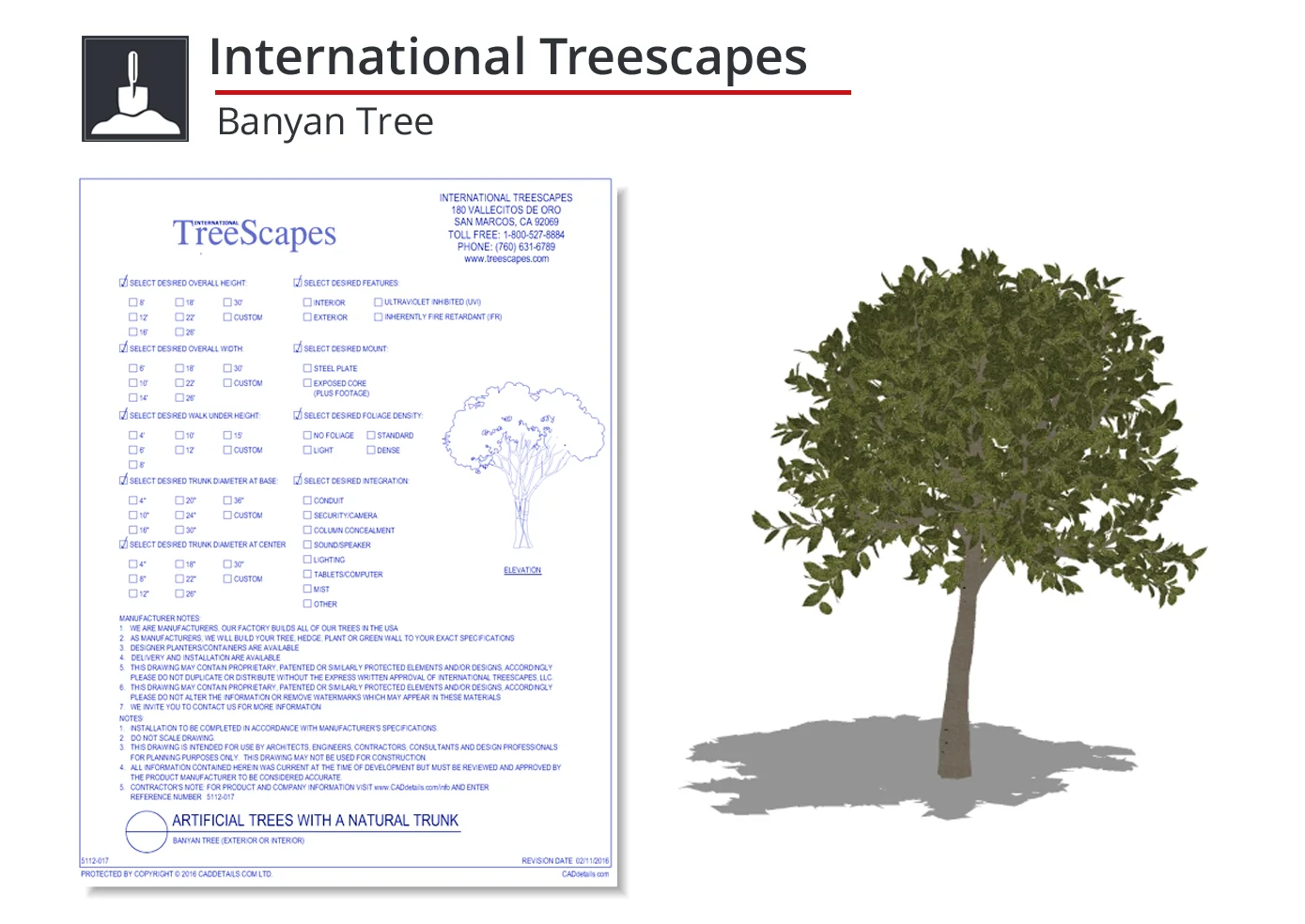

 5112-017 Banyan Tree

5112-017 Banyan Tree

International TreeScapes offers the largest array of custom-made, museum-quality, artificial trees and plants in the industry.

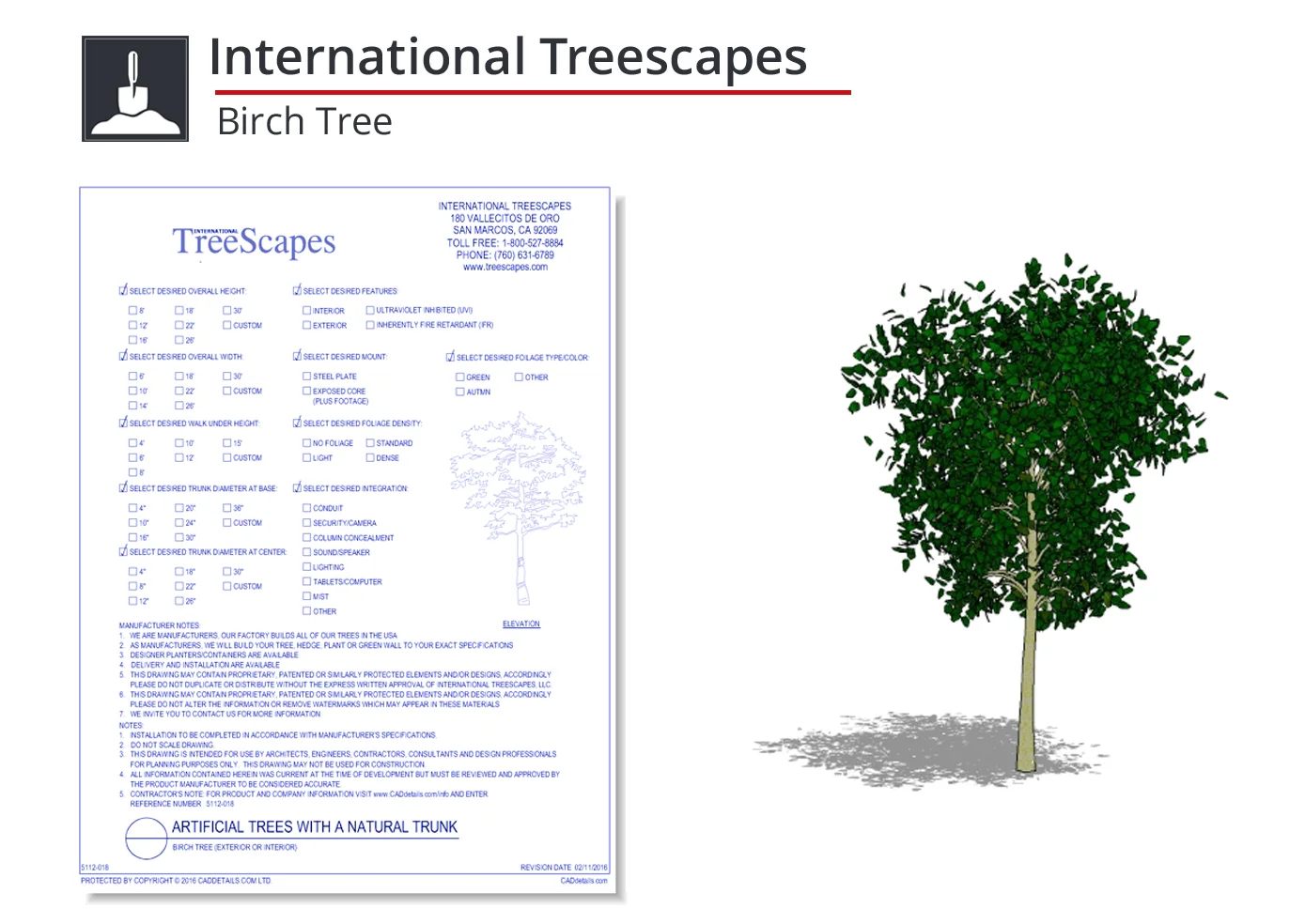

 5112-018 Birch Tree

5112-018 Birch Tree

International TreeScapes offers the largest array of custom-made, museum-quality, artificial trees and plants in the industry.
