Light Up Your Landscape With These 20+ CAD Drawings

Light Up Your Landscape With These 20+ CAD Drawings

When lighting your landscape, it's important to consider the benefits of certain styles of lighting and the vast amount of lighting techniques available. In a prior article, we discussed how to solve your biggest outdoor lighting problems, and today we wanted to offer a glimpse at some of the lighting solutions available.

*Free registration on CADdetails.com is required to obtain the models.


Lighting Fixtures

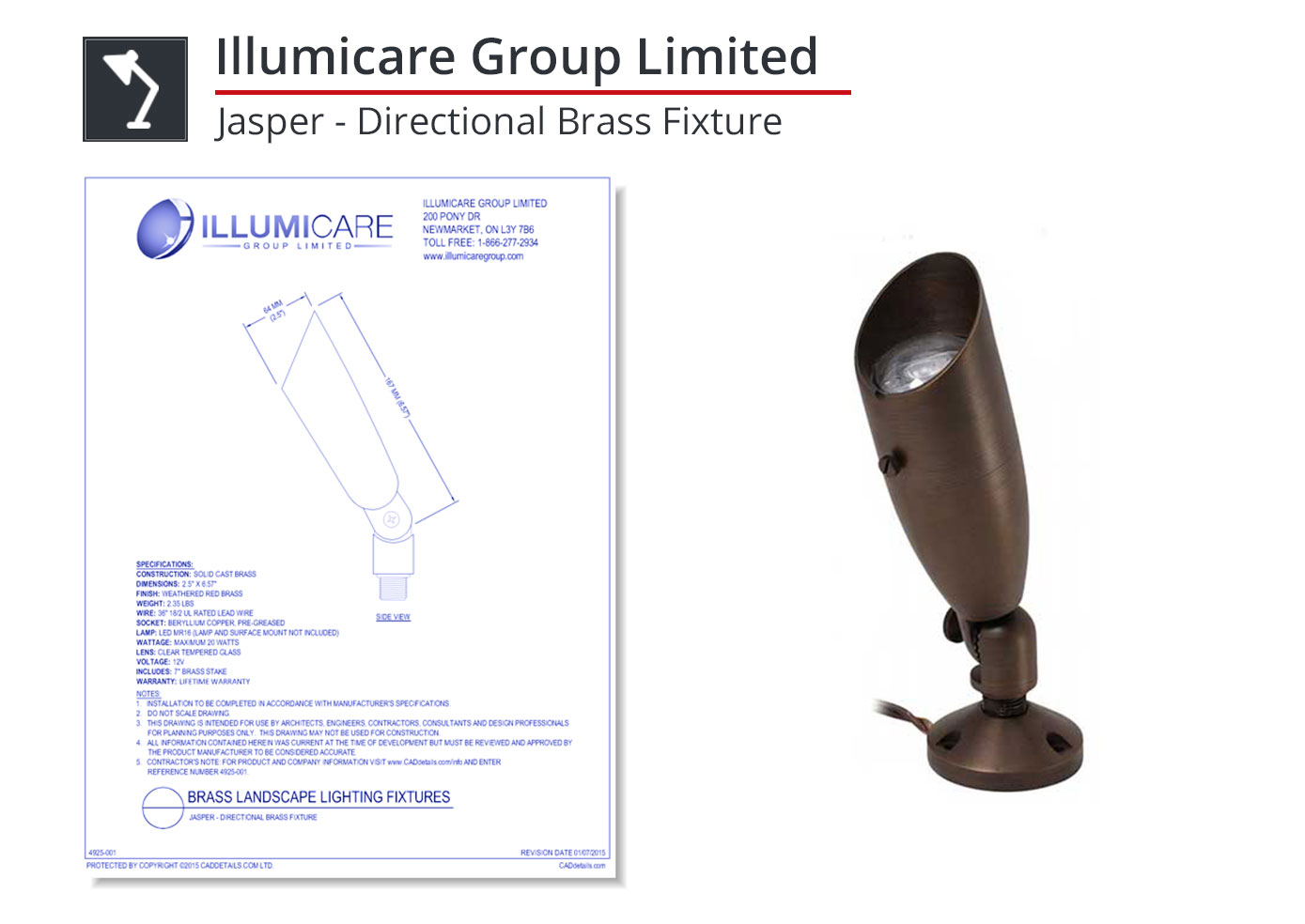

 4925-001 Jasper - Directional Brass Fixture

4925-001 Jasper - Directional Brass Fixture

Suited for both commercial and residential projects, this rugged fixture is constructed of solid red brass offering superior strength and reliability. The adjustable shroud can be secured in place easily with the quick-lock set screw and silicone o-ring gaskets to ensure a weather-tight seal under harsh conditions.

Jasper’s clear convex glass lens offers superior optics while protecting the lamp from moisture and debris.


 4925-004 Roxy - Large Hat Pathlight Brass Fixture

4925-004 Roxy - Large Hat Pathlight Brass Fixture

With an adjustable lamp base, Roxy offers a soft, dim light which accents walkways, plant beds, path borders and even stairs. Her clear glass lens protects the lamp and socket from water, moisture and debris.

Placed at even intervals throughout your design, this weathered red brass pathlight will cast symmetrical light patterns on the ground, efficiently illuminating areas around landscape water features, including ponds or pools.

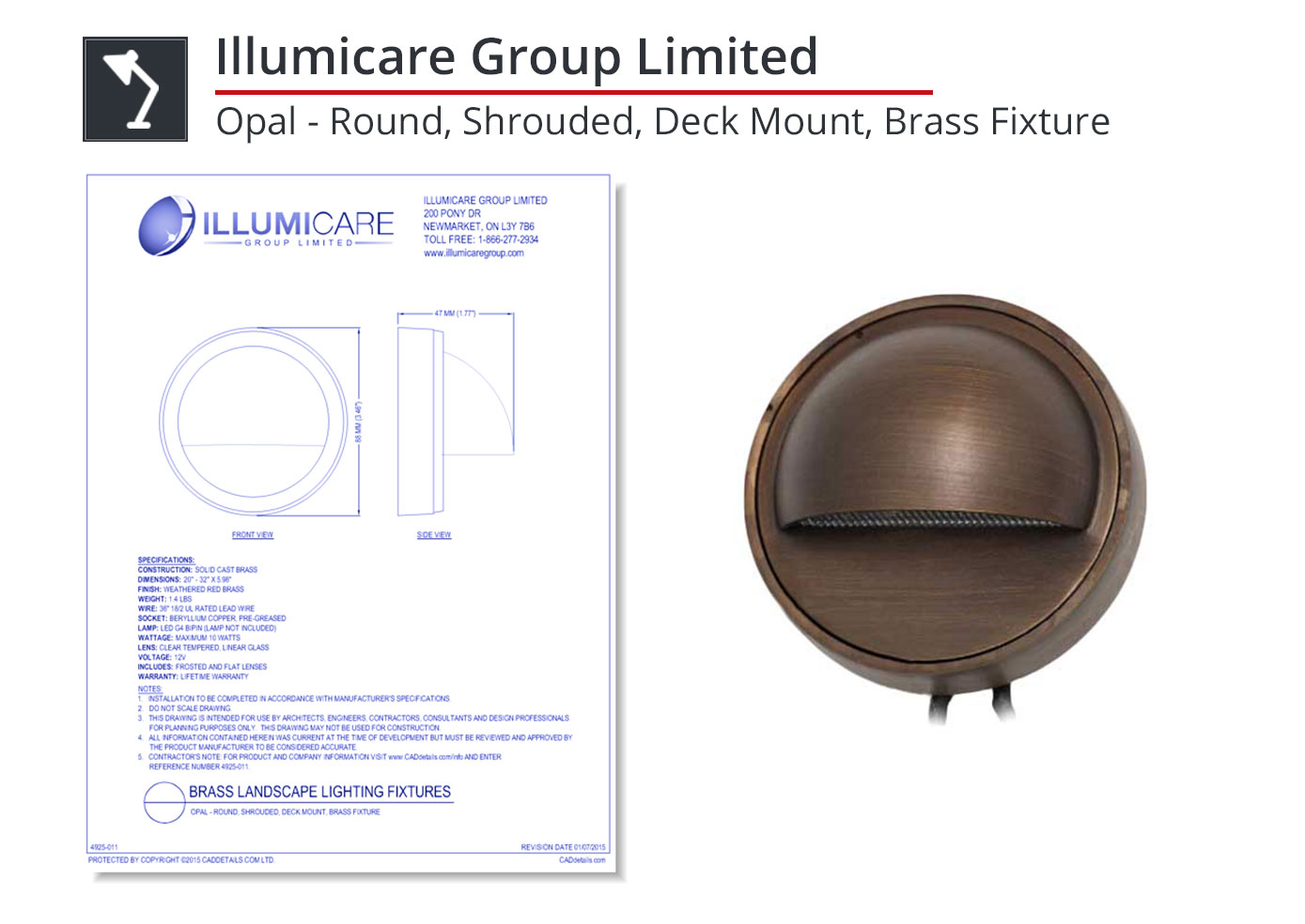

 4925-011 Opal - Round, Shrouded, Deck Mount, Brass Fixture

4925-011 Opal - Round, Shrouded, Deck Mount, Brass Fixture

For more subtle, soft deck lighting, Opal, our shielded deck light, gives you just the right amount of light to highlight your outdoor entertainment areas.

Opal is the ideal niche light when adding interesting and artistic lighting in areas that require subtle, soft illumination. Installed on posts, beneath benches, against stair risers or as surface lights on vertical posts and below railings, Opal will help guests navigate paths, stairs, and other potential obstacles safely.


Lanterns

 4864-106 Carini Lantern

4864-106 Carini Lantern

The Carini lantern is a small, footpath-style lantern which has 18 perforations, aligned in three pairs of three perforations, radially spaced at 120º from each other. Each perforation is a 1" by 1" square. A variety of overhanging lids is available (and included) to complete the lantern. The bottom square base plinth is optional.

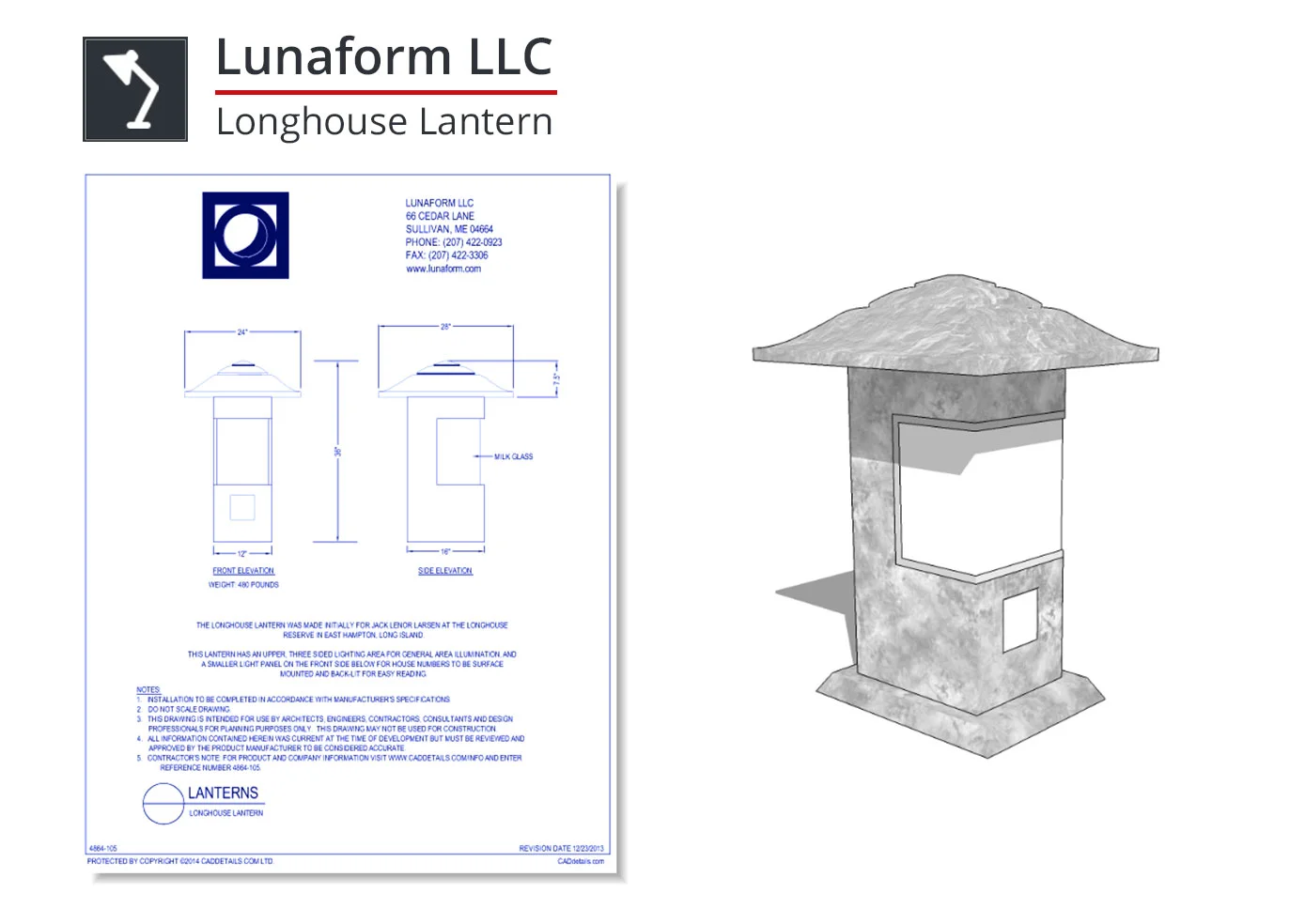

 4864-105 Longhouse Lantern

4864-105 Longhouse Lantern

The LongHouse Lantern was made initially for Jack Lenor Larsen at The LongHouse Reserve in East Hampton, Long Island.

This lantern has an upper, three sided lighting area for general area illumination, and a smaller light panel on the front side below for house numbers to be surface mounted and back-lit for easy reading.


 4864-107 Pico Lantern

4864-107 Pico Lantern

The Pico lantern is a slightly larger, footpath-style lantern than the Carini Lantern. It also has 18 perforations, aligned in three pairs of three perforations, radially spaced at 120º from each other. Each perforation is a 1" by 1" square.

A variety of overhanging lids is available (and included) to complete the lantern.


Floodlight Fixtures

 4827-024 BR40 Tube Downlight

4827-024 BR40 Tube Downlight

-Cast up shields with high-temperature sponge gaskets and silicone lens seals
-100% DuraLune™Electro-Coated prior to powder coating
-Super durable polyester power coat finish in both Textured Bronze and Hartford Green
-Knuckle with 7.5 degree indexing angles and positioned for better balance on bullet
-Up and down tube shields available in all sizes – giving you maximum shielding capabilities!
-High performance flood and spot optics available in R40 size

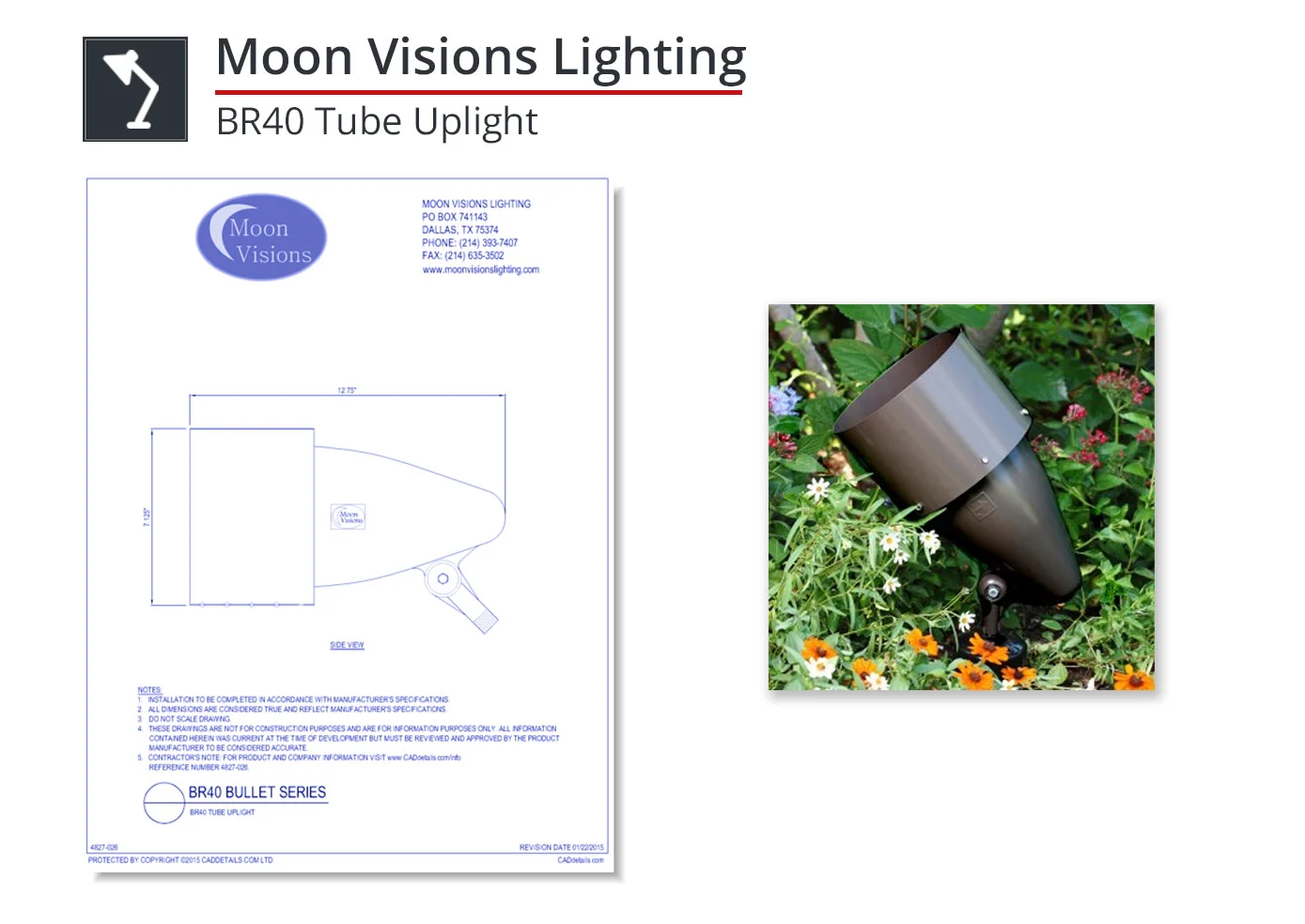

 4827-026 BR40 Tube Uplight

4827-026 BR40 Tube Uplight

-Cast up shields with high-temperature sponge gaskets and silicone lens seals
-100% DuraLune™Electro-Coated prior to powder coating
-Super durable polyester power coat finish in both Textured Bronze and Hartford Green
-Knuckle with 7.5 degree indexing angles and positioned for better balance on bullet
-Up and down tube shields available in all sizes – giving you maximum shielding capabilities!
-High performance flood and spot optics available in R40 size


 4827-012 R38 LED Bullet Series

4827-012 R38 LED Bullet Series

-Cast up shields with high-temperature sponge gaskets and silicone lens seals
-100% DuraLune™Electro-Coated prior to powder coating
-Super durable polyester power coat finish in both Textured Bronze and Hartford Green
-Knuckle with 7.5 degree indexing angles and positioned for better balance on bullet
-Up and down tube shields available in all sizes – giving you maximum shielding capabilities!
-High performance flood and spot optics available in R40 size


Streetlights

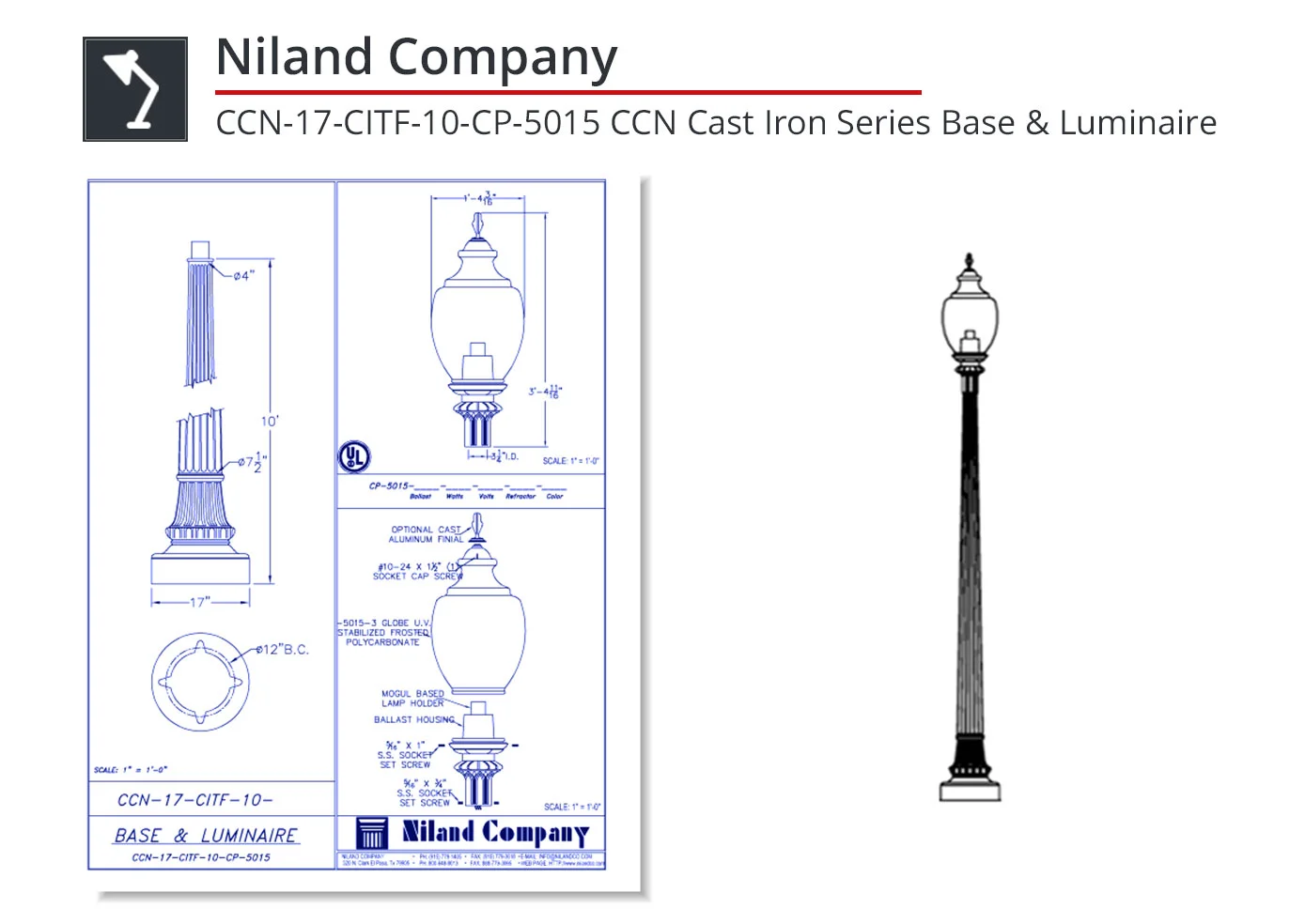

 792-223 Cast Iron Series Base & Luminaire

792-223 Cast Iron Series Base & Luminaire

Cast Iron Poles and bases mated with fluted steel poles are featured here. These are municipal grade light poles meant for life in busy downtown environments. Cast Iron Lamp Posts have been popular for over 200 years beginning with the early colonial gas lamps. Niland is proud to continue this strong American tradition by offing the countries finest and most intricately cast iron poles in the industry. Fluted steel poles have given municipal and urban designers the flexibility of illuminating roadways with vintage poles up to 30 feet tall. Cast iron and steel antique street lights will finish any rough municipal environment with classic and durable style meant to last through the centuries.


 792-237 Grand Bealle Series

792-237 Grand Bealle Series

Niland manufactures the industries largest and most diverse offering of custom decorative aluminum pole products.


 792-008 Capitol Series

792-008 Capitol Series

The Niland Company has developed the industries largest selection of completely customizable decorative outdoor lighting and site furnishing products. The products featured here on our website are easily specifiable with over 100,000 different and unique combinations allowing our core specifiers and agencies the ability to create a completely new and unique appearance to each and every development designed.


Underwater Lighting

 4788-061 Model LS5070

4788-061 Model LS5070

The LS5070 is a powerful LED fixture with exceptional light output and is available in a wide variety of optical configurations including narrow spot and bi-symmetrical distributions. The luminaire has a wide variety of color temperatures and is constructed from cast brass ideally suited for the underwater environment

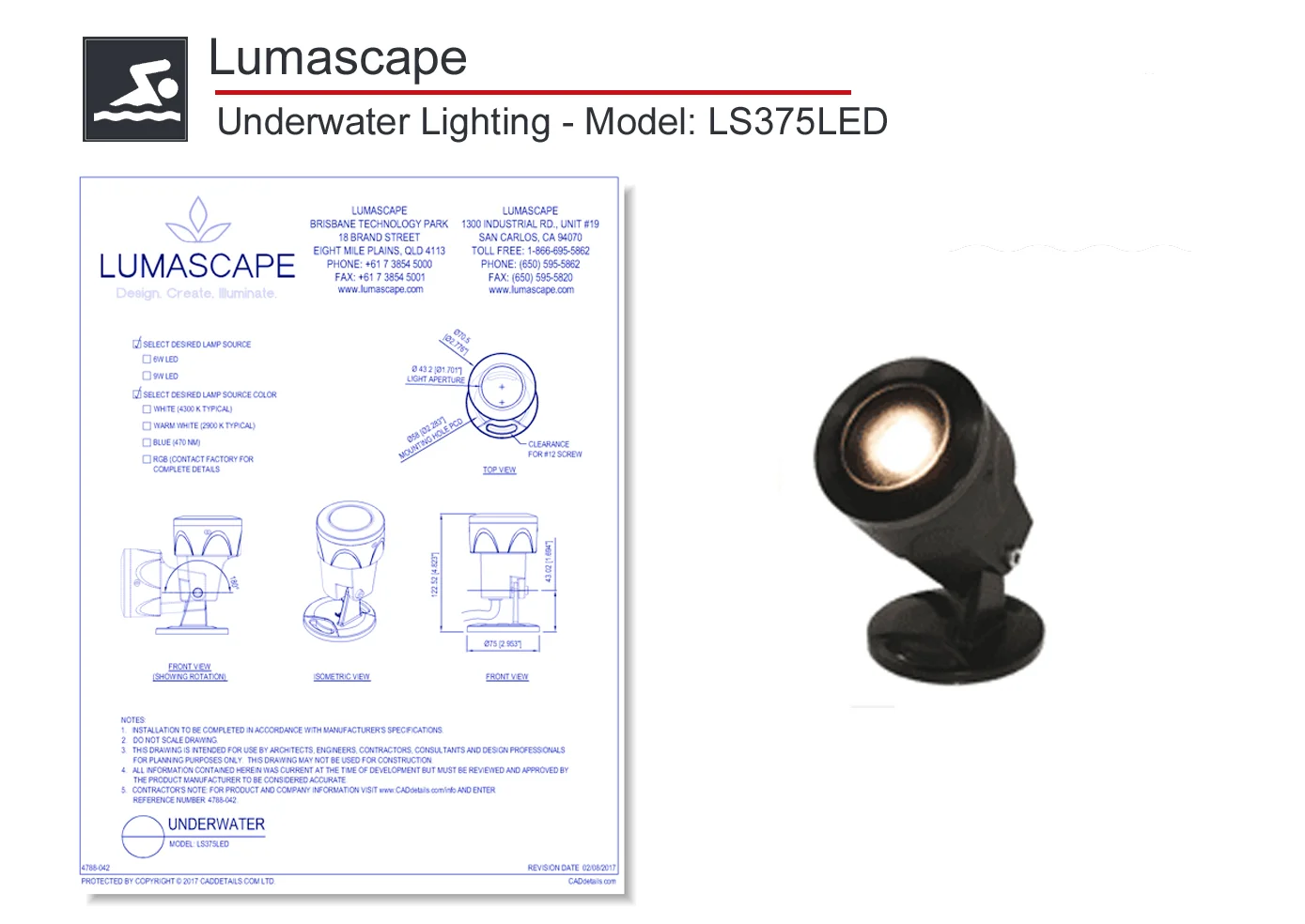

 4788-042 Model LS375LED

4788-042 Model LS375LED

 The LS375LED is a compact, surface mounted fountain light designed for high performance applications. Constructed of both high pressure die-cast copper alloy and high-strength polymer, the LS375LED represents the next generation of compact fountain lighting.

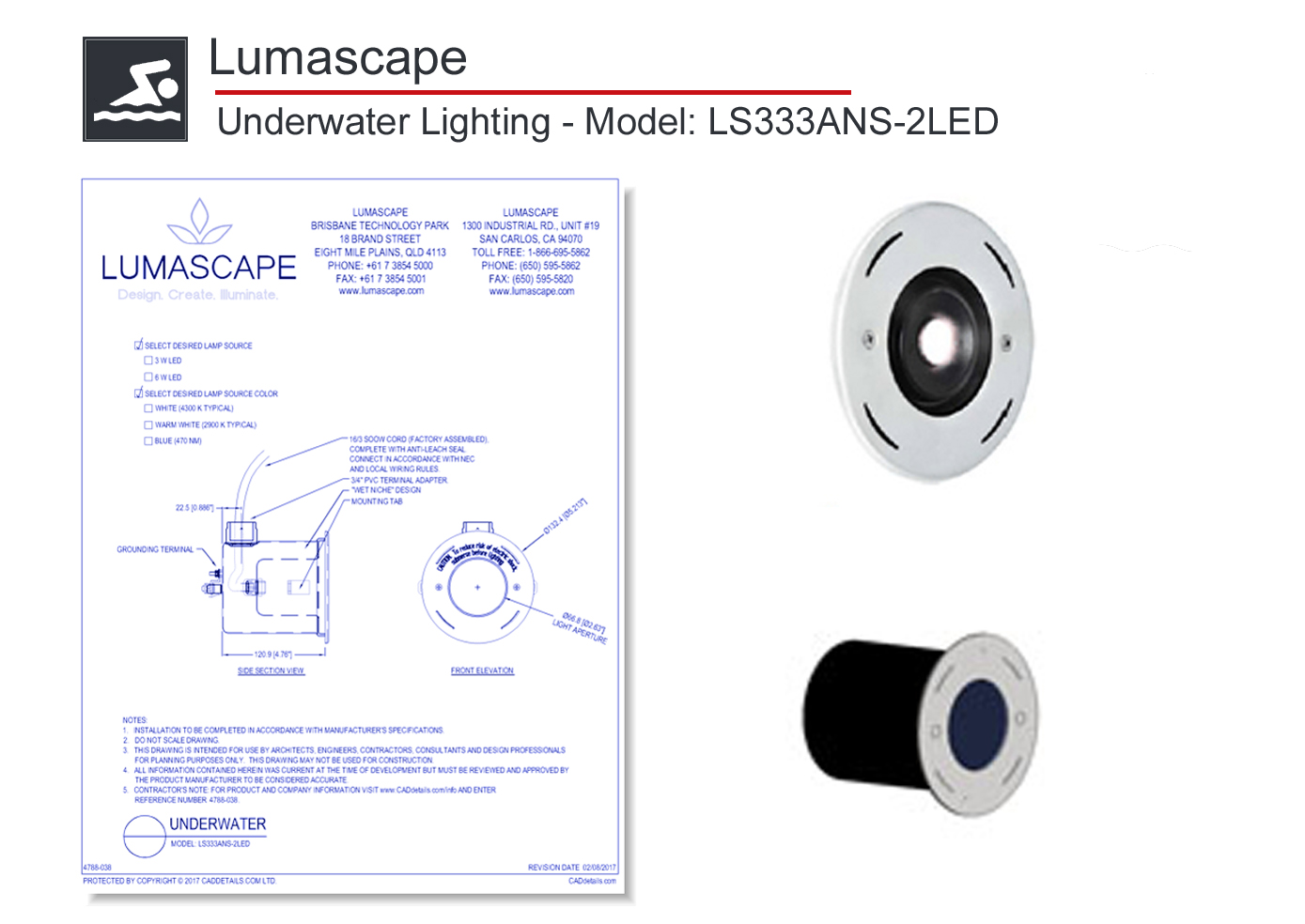

 4788-038 Model LS333ANS - 2LED

4788-038 Model LS333ANS - 2LED

The LS333ANS-2LED is a swimming pool-rated luminaire, and one of Lumascape’s most popular luminaires. It is constructed entirely of 316 marine grade stainless steel, and has a special alignment feature to ensure the beam of light is perpendicular to the installation surface, even if the wet niche is not. The use of LED allows for the creative introduction of color and improved energy efficiency.


Path Lights

 1283-112 JS Path Lights

1283-112 JS Path Lights

Engineered for mid-sized landscapes, the JS provides lighting for larger pathways while using less energy. Detailed engineering and striking design make the JS one of the most advanced LED Path Lights for today’s landscape needs.


 1283-104 HC Path Lights

1283-104 HC Path Lights

Modeled after our most popular Path Light, the HC is the perfect addition to any pathway. The petite and clean lines of the HC allow for unobtrusive placement, which can therefore enhance your surrounding colors and textures. Inside is Driver-on-Board LED technology that offers energy savings and long lamp life.


 1283-046 GT Path Lights

1283-046 GT Path Lights

On some lighting projects there are challenges that basic fixed-mount Path Light fixtures cannot address. Well, the GT is a solution to all. This includes putting green lighting, where light needs to protect some distance away from the mounting position, or wall washing in a planter where the light source needs to be elevated above plant material. The GT can also be used as a BBQ counter-mount light for outdoor lighting. The GT provides a myriad of solutions to difficult lighting tasks with beam spread adjustability and soft illumination.


Spotlight Fixtures

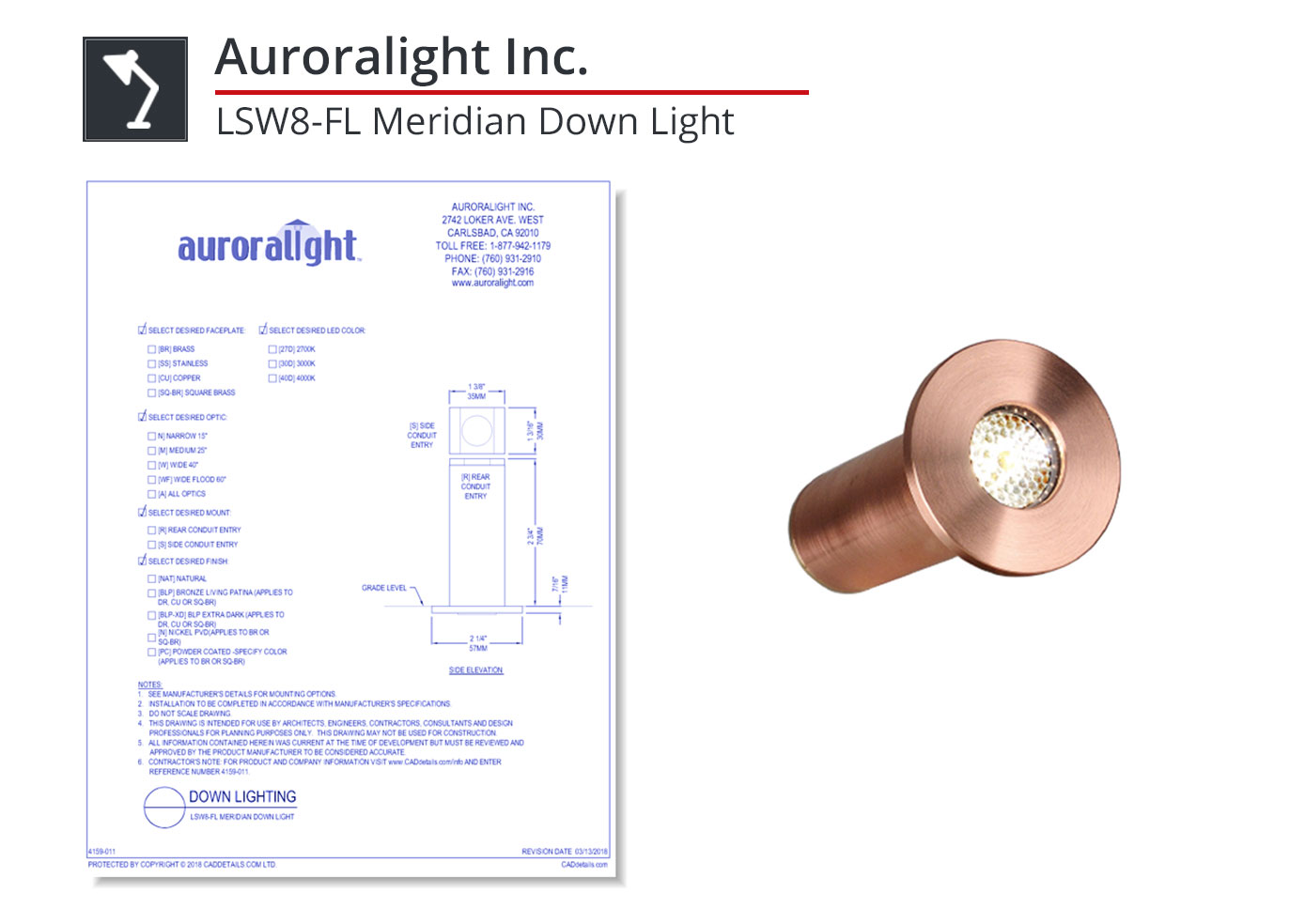

 4519-011 Meridian Down Light

4519-011 Meridian Down Light

The Meridian LSW8-FL having a faceplate diameter of just 2 1/4" and a 1" aperture make it one of the smallest down lights available. The LED package used in the LSW8 is the very latest technology delivering excellent performance and halogen like color temperature. Precise machining coupled with careful engineering addresses thermal management requirements and ensures high performance and reliability. The Meridian has an integral LED driver that allows it to operate on standard 12 volt systems with no additional hardware needed. Installation is simplified by the inclusion of a separate solid copper housing that can be pre-installed and fitted with the luminaire cartridge later. 1/2" threaded conduit entry is located on back or side of outer housing. Classic Auroralight quality and performance. UL listed for indoor/outdoor, wet location, wall or ceiling mount, IC rated. Class 2 when labeled with option "B" building mounted


 4159-003 Telluride LED Spotlight

4159-003 Telluride LED Spotlight

The TELLURIDE HSL16 hybrid spotlight is an extraordinarily versatile lighting tool. Powered by cutting-edge CREE™ XP-L LEDs and crafted from solid copper and brass, this compact fixture delivers impressive lumen output and handles punishing environmental conditions in stride.

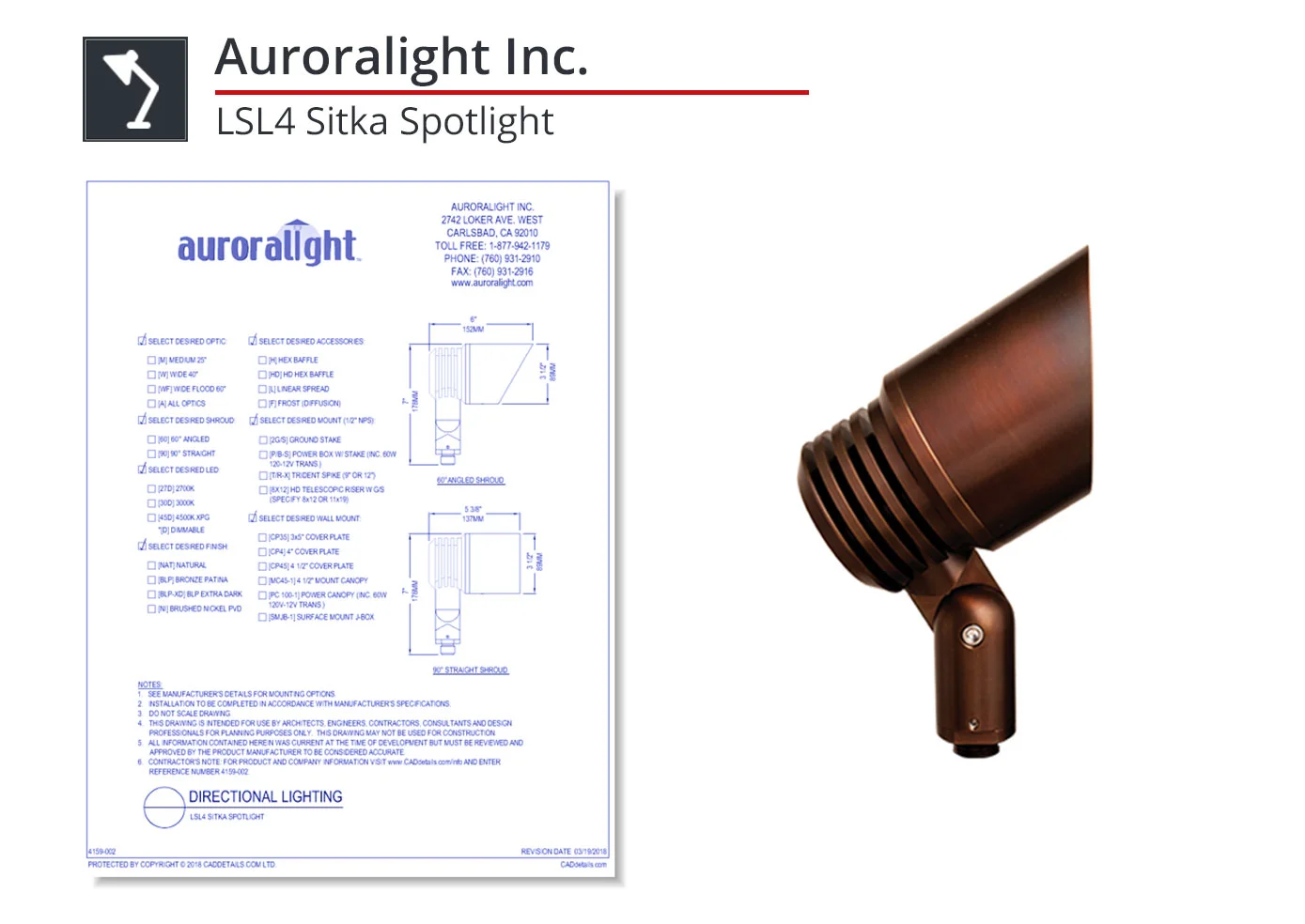

 4159-002 Sitka Spotlight

4159-002 Sitka Spotlight

The LSL4 is an ultra high performance LED spotlight delivering an unprecedented level of warm white light never before available in a 12 volt fixture! The entire machined brass body of the LSL4 is designed to provide an ideal heat sink for the 20w LED array with all critical components sealed into a field serviceable module. Featuring fully dimmable drive circuitry, interchangeable optics and over 12 mounting solutions; this powerful lighting tool is easily tamed to meet your specific needs. The LSL4 incorporates the latest in Auroralight engineering such as "3p" aiming offering over 900 degrees of adjustability on 3 separate planes, making this giant quite nimble. Weighing in at 7lbs recommended mounting solutions are specially designed class 1 devices listed below. Manufactured in the USA exclusively by Auroralight and is backed by our Lifetime Warranty.


Looking for even more CAD files? Browse CADdetails' CAD Drawings library.
