20+ Flooring CAD Drawings to Help You With Your Next Project

20+ Flooring CAD Drawings to Help You With Your Next Project

Choosing a flooring option for your home or business is often a difficult task because your choice not only impacts the tenants, but also influences the overall atmosphere. In this article we've highlighted 7 various floor types and provided links to CAD files so that your favourites can be easily incorporated into your next project.

*Free registration on CADdetails.com is required to obtain the models.


Cork Flooring

Cork is one of your best options if you're seeking a comfortable flooring. The flooring is available in a variety of colours and finishes so that you can easily blend it with your interior design choices. Similar to bamboo, cork needs to be in areas that aren't susceptible to water. You'll also want to avoid rooms that have over exposure to sunlight since cork is known to fade.

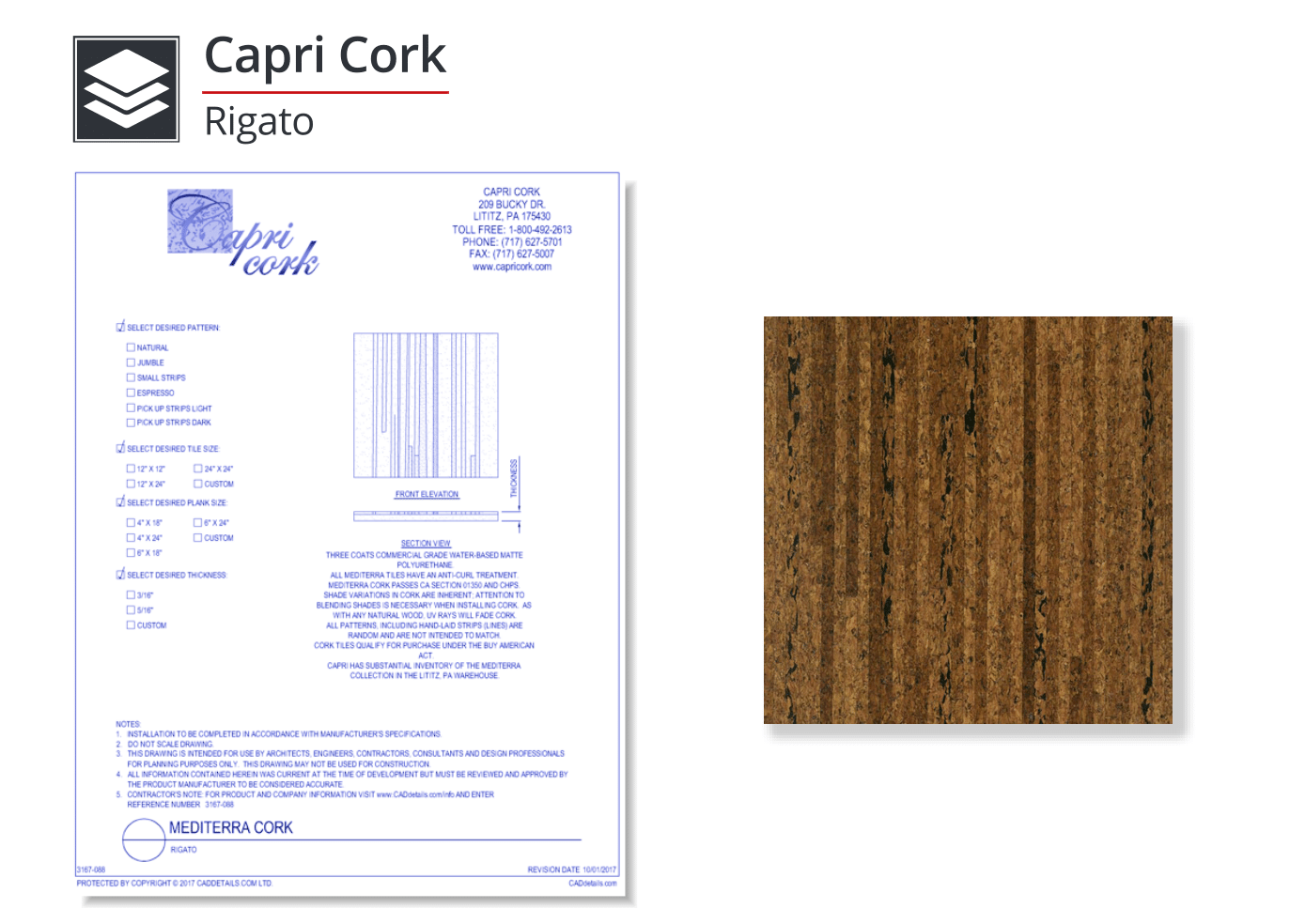

 3167-088 Mediterra Cork Flooring - RIgato

3167-088 Mediterra Cork Flooring - RIgato

As with all of the Mediterra Collection from Capri, Rigato is available in 3/16” thickness, and tile sizes of 12” x 12” or 24” x 24”, as well as custom sizes.  Finished with durable water-based matte polyurethane, Rigato is suitable for commercial or residential use and will last decades when properly maintained.  Rigato can be used alone or with existing Mediterra patterns.  Rigato contributes to LEED credits.


 3167-090 Mediterra Cork Flooring - Veneer

3167-090 Mediterra Cork Flooring - Veneer

Mediterra cork offers a variety of innovative patterns and colors in both homogeneous & veneer constructions. Cork, with a flooring history dating back decades, is natural, renewable, acoustical, thermal and when properly maintained can last decades. Mediterra, with many unique patterns, is suitable for installation on both floors and walls.


 3167-089 Mediterra Cork Flooring - Homogenous

3167-089 Mediterra Cork Flooring - Homogenous

Mediterra cork offers a variety of innovative patterns and colors in both homogeneous & veneer constructions. Cork, with a flooring history dating back decades, is natural, renewable, acoustical, thermal and when properly maintained can last decades. Mediterra, with many unique patterns, is suitable for installation on both floors and walls.


Rubber Flooring

Rubber flooring has gained popularity because it is a resilient flooring that is easy to clean, very durable, and is quiet to walk on. You'll commonly find rubber flooring in fitness centers and hospitals.

 3203-005 Marble Fiesta Rubber Tile and Tread

3203-005 Marble Fiesta Rubber Tile and Tread

Marble Fiesta is an exciting new look that is appealing to look at while providing all of the attributes that make rubber flooring a great choice! Marble Fiesta colors coordinate with other Roppe products and can be mixed and matched with tile, treads, wall base and accessories. Be creative with beautiful, versatile and unique Marble Fiesta products.


 3203-004 Fiesta Rubber Tile and Tread

3203-004 Fiesta Rubber Tile and Tread

A favorite of designer's, Fiesta is not only long-lasting, it's also great looking and an excellent choice for custom projects. Fiesta colors coordinate with other Roppe products and can be mixed and matched with tile, treads, wall bace and accessories. Let your imagination be your guide with beautiful, versatile and unique Fiesta products.


 3203-003 Smooth Marbleized Rubber Tile

3203-003 Smooth Marbleized Rubber Tile

Available in solid or marble color patterns, Roppe Smooth Finish Rubber Tile is a great choice for healthcare applications where rolling loads can be expected. Custom flooring logos can bring a personal touch to corporate or educational facilities adding visual interest while reinforcing brand identities. Feature strips available in 1/2" x 24-1/2", 1" x 25" and 2" x 26", smooth or textured patterns, can add drama to solid or marble floors.


Wood Flooring

If you're looking for a flooring that won't go out of style, then hardwood is your best option. If you choose maple, oak, hickory or heart pine woods then you can anticipate having durable flooring that will last you for years.

 5165-001 Wood Flooring - 2.5" Width

5165-001 Wood Flooring - 2.5" Width

ThermalWood Canada's interior flooring products offer natural insulation properties that are seven times greater than ceramic, cushion and laminated floors. This product can be installed on heated surfaces or even glued directly onto concrete.


 5165-003 Wood Flooring 4.5" Width

5165-003 Wood Flooring 4.5" Width

ThermalWood Canada's interior flooring products offer natural insulation properties that are seven times greater than ceramic, cushion and laminated floors. This product can be installed on heated surfaces or even glued directly onto concrete.


 5165-002 Wood Flooring 3.5" Width

5165-002 Wood Flooring 3.5" Width

ThermalWood Canada's interior flooring products offer natural insulation properties that are seven times greater than ceramic, cushion and laminated floors. This product can be installed on heated surfaces or even glued directly onto concrete.


Stone Flooring

Business and residential properties use stone flooring in kitchens, bathrooms, living areas, and hallways because of the durability and low maitenance.

 5131-002 Travertine: Mocha/Walnut Flooring

5131-002 Travertine: Mocha/Walnut Flooring

When the hard lines and polished surfaces of contemporary play structures don’t fit your vision, head to the Woodlands for a more natural aesthetic.

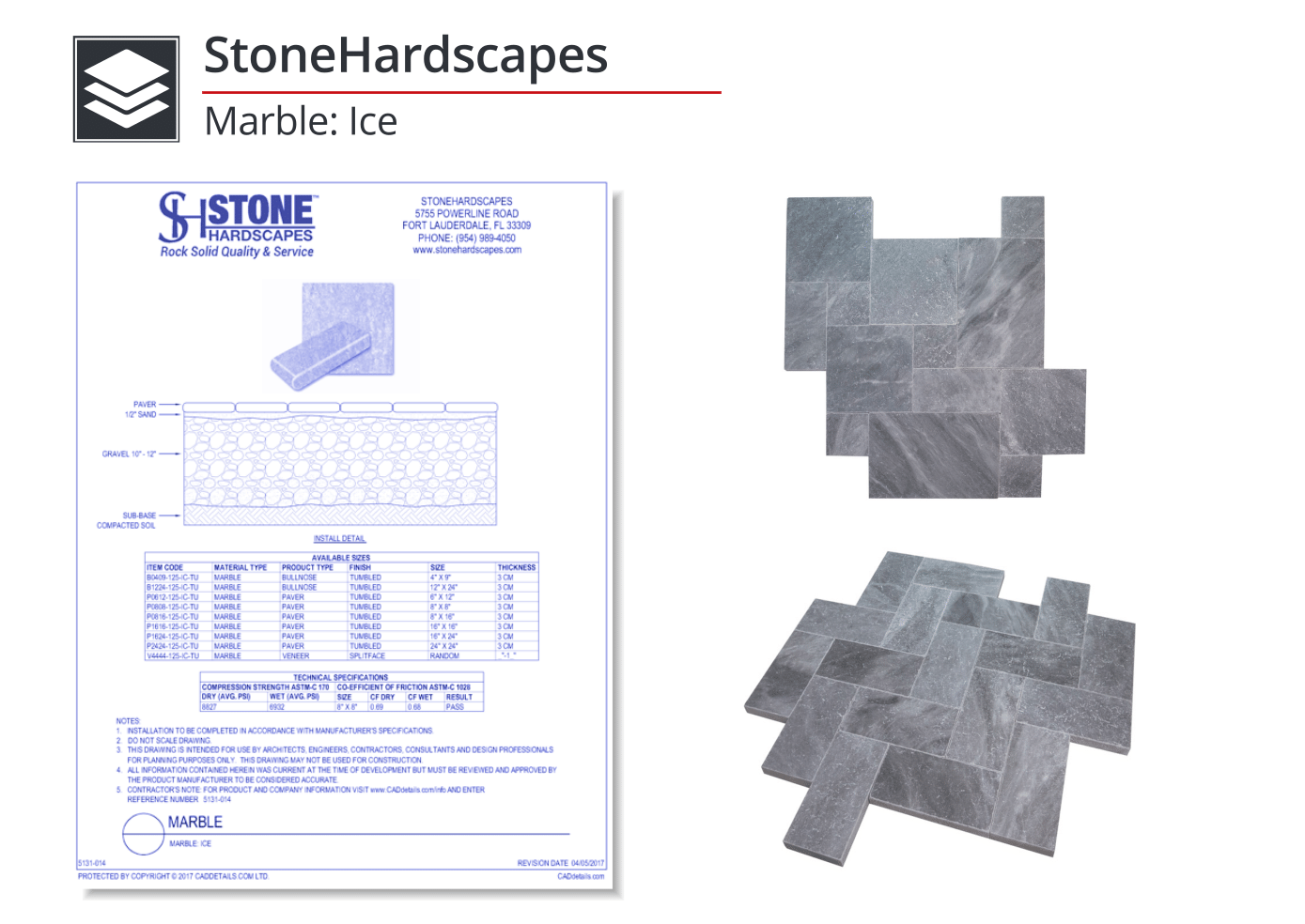

 5131-014 Marble: Ice

5131-014 Marble: Ice

Ice is that perfect cool finish that you have been looking for. With subtle hints of blue and exhilarating white tones, this application will enhance the blue in your pool and create a soothing environment.


 5131-028 Granite: Platinum

5131-028 Granite: Platinum

Platinum offers a contemporary, modern look with gray, silver and white tones.


Terrazzo Flooring

If you're considering Terrazzo flooring, then you should read our guide Choosing Terrazzo Flooring for Your Project.  In the guide we offer insight on the types of aggregate that can be used to make terrazzo flooring, the sizes of aggregate available, and the various installation methods.

 1113-006 Cranberry Terrazzo Glass

1113-006 Cranberry Terrazzo Glass

Cranberry terrazzo glass can be used for countertops, concrete, DIY Projects, glass aggregates. This glass offers beautiful colors that do not fade or need replacing, they are available in various sizes. Terrazzo glass goes through rigorous tumbling processes in order to ensure precise sizing. Our terrazzo glass is 100% recycled glass made in the USA. Glass can be used for terrazzo, countertops, aquariums, aquarium gravel, swimming pools, flower arrangements, flower arranging and more.


 1113-008 Dark Green Terrazzo Glass

1113-008 Dark Green Terrazzo Glass

 Dark green terrazzo glass can be used for countertops, concrete, DIY Projects, glass aggregates. This glass offers beautiful colors that do not fade or need replacing, they are available in various sizes. Terrazzo glass goes through rigorous tumbling processes in order to ensure precise sizing. Our terrazzo glass is 100% recycled glass made in the USA. Glass can be used for terrazzo, countertops, aquariums, aquarium gravel, swimming pools, flower arrangements, flower arranging and more.

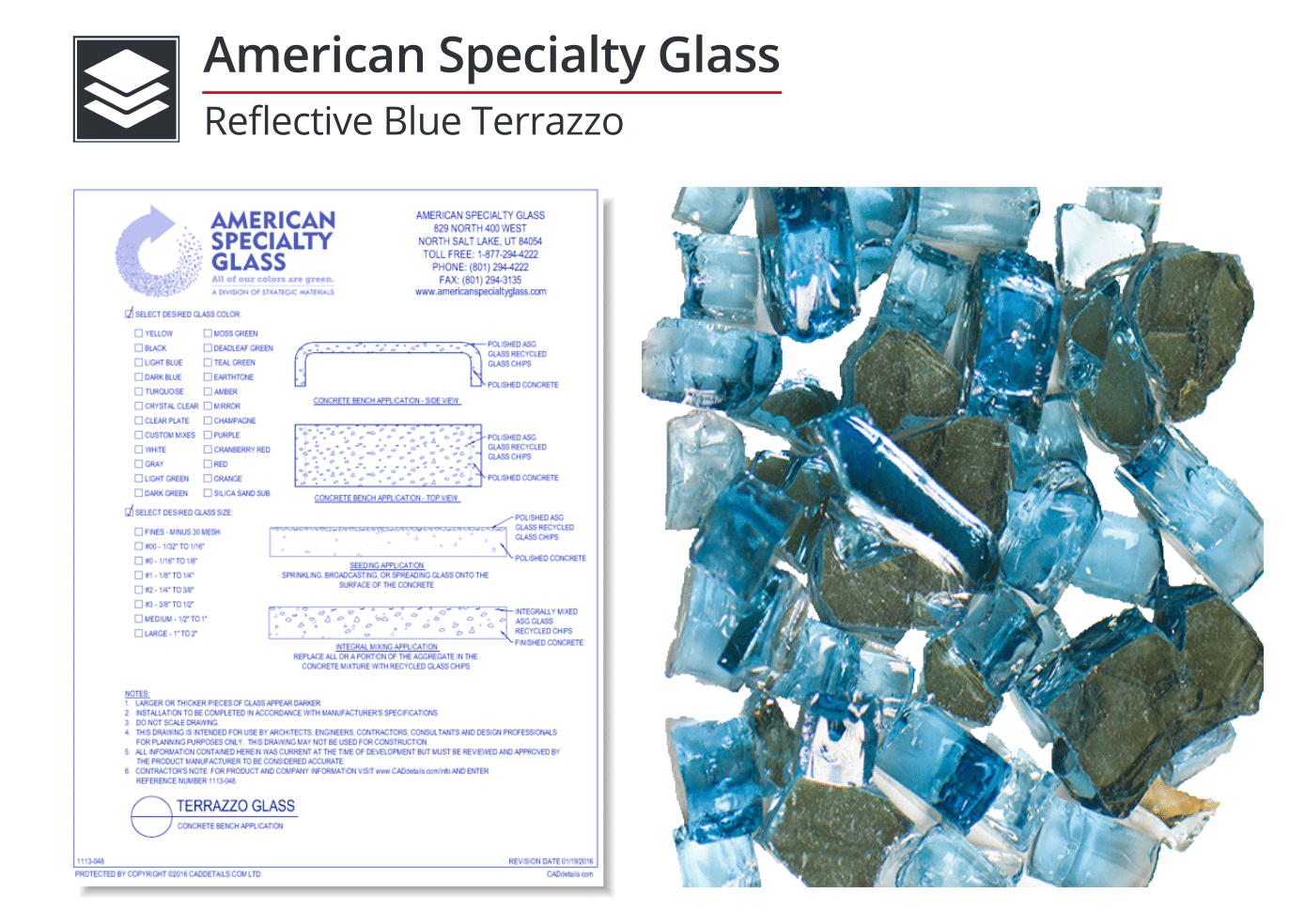

 1113-012 Reflective Blue Terrazzo

1113-012 Reflective Blue Terrazzo

Reflective blue terrazzo glass can be used for countertops, concrete, DIY Projects, glass aggregates. This glass offers beautiful colors that do not fade or need replacing, they are available in various sizes. Terrazzo glass goes through rigorous tumbling processes in order to ensure precise sizing. Our terrazzo glass is 100% recycled glass made in the USA. Glass can be used for terrazzo, countertops, aquariums, aquarium gravel, swimming pools, flower arrangements, flower arranging and more.


Resilient Flooring

For high traffic areas such as gymnasiums or hallways, resilient flooring is ideal because it is more durable and typically requires less maintenance than other flooring.

 3135-002 Zenterra Bamboo Fitness Flooring

3135-002 Zenterra Bamboo Fitness Flooring

Zenterra flooring is designed with the fitness athlete in mind. Not a modified bamboo commercial flooring – a total flooring system that is durable, quiet, hygienic and safe for class participants.

But most importantly, it’s made from the most renewable material available for fitness flooring. While most sports and fitness floors are made from maple trees that take 50-60 years to grow. the species of bamboo that is used for Zenterra regrows to its full height within months and can be used again for flooring boards in just 5-6 years!


 3135-008 Multi-Play Sports Flooring

3135-008 Multi-Play Sports Flooring

No other floor is easier to install than Multiplay. Unlike more traditional sports floors, no expensive professionals are needed. Multiplay's snap-together post and lock system means that you can install a basketball court yourself in a matter of minutes, even one with taped or painted game lines.


 3135-010 Zenterra Bamboo Flooring - Z.500

3135-010 Zenterra Bamboo Flooring - Z.500

The Zenterra Z.500 system is designed for group exercise and multipurpose areas where lower impact activities take place. The Z.500 system utilizes a 1/2" foam, which possess less impact absorption than the standard Zenterra floor, but still utilizes the 7/8" solid bamboo flooring planks and the Spring installation method. It’s a perfect floor for those facilities who seldom conduct so called “high impact” exercise on the floor.


Fitness Floor Mats

Fitness floor mats should be considered for sections where athletes are going to be heavily training and engaging in activities such as Cross Fit.  The mats not only protect the flooring below, but also give athletes the opportunity to workout on a shock absorbent surface.

 4777-016 Survivor CrossFit Mats

4777-016 Survivor CrossFit Mats

Cross Fit, the fitness phenomenon taking the world by storm, requires grit, discipline, and daily workouts on a surface that supports the toughest demands. U.S. Rubber’s super heavy-duty mats are perfect for CrossFit training. Made of durable rubber from recycled tires, Survivor CrossFit mats provide the traction you need for even the toughest exercises.

Size – 4’x6’, available in ½ or ¾ inch thicknesses


 4777-013 Survivor SportFloor Tiles

4777-013 Survivor SportFloor Tiles

You need a long-lasting floor that will take tons of traffic and look great for years: Survivor SportFloor™ wins every time. Endorsed by Gold’s Gym, Survivor thrives in tough, high-traffic environments. Available in roll and interlocking tile, Survivor SportFloor’s unique beveled-edge construction means virtually no gapping, resulting in a smooth, seamless surface.

And, our personalized service and small-company drive means you’ll get the just the right amount of Survivor where and when you need it!


 4777-014 Survivor SportFloor Mats

4777-014 Survivor SportFloor Mats

Survivor CrossFit Mats Outfit your home gym or fitness center for safe, serious workouts Cross Fit, the fitness phenomenon taking the world by storm, requires grit, discipline, and daily workouts on a surface that supports the toughest demands. U.S. Rubber’s super heavy-duty mats are perfect for CrossFit training. Made of durable rubber from recycled tires, Survivor CrossFit mats provide the traction you need for even the toughest exercises. Size – 4’x6’, available in ½ or ¾ inch thicknesses


Looking for even more CAD files? Browse CADdetails' CAD Drawings library.
