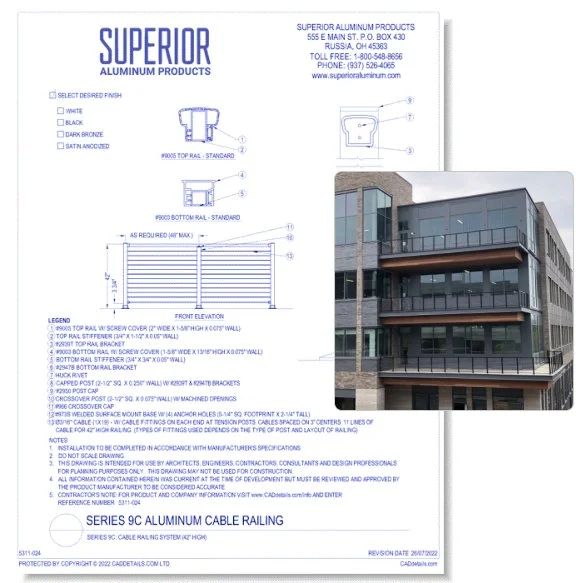

When it comes to designing residential and business spaces it's not just about functionality, it's about making a statement. These are 20+ CAD drawings from top building product manufacturers such as Royal Corinthian, Design Components Inc./ Metalwalk, and more. These drawings will assist you in the realm of contemporary design.

For 30 years, Royal Corinthian has been manufacturing composite railing systems that outlast traditional building materials like wood, concrete, and metal. Whether you are looking for a 22" wide massive commercial balustrade, a 3" wide railing system for a craftsman-style home, or anything in between, their product offering is second to none. Their balustrade systems are available in PVC, fiberglass, polyurethane, GFRC, and synthetic stone. Many of these systems come in an assortment of integral colors and do not require painting. If the thousands of standard combinations that they offer don’t meet your aesthetic requirements, they have never passed on a custom project. Thank you for your consideration of their architectural railing systems.

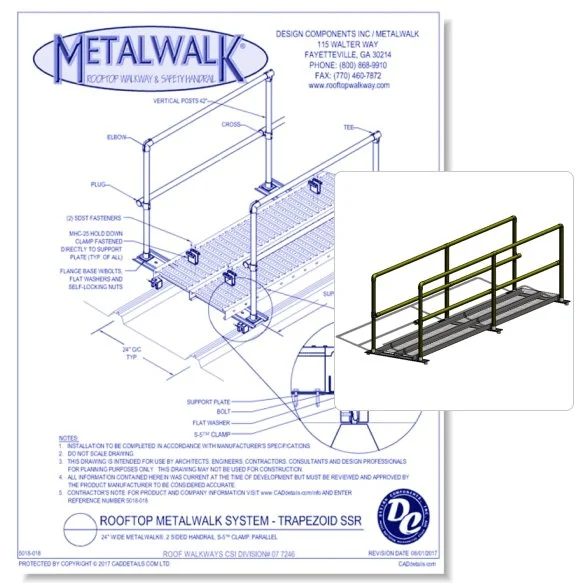

The Metalwalk®️️️ rooftop walkway system, specified in CSI division 07-7246 by Architects & Engineers the world over, is the gold standard in safe rooftop access. It simultaneously protects your roof from foot traffic damage and protects your employees from slips, trips, and falls by giving them a sturdy way to access your rooftop equipment. In conjunction with our Safety Handrail System, the METALWALK®️️️ Rooftop Walkway System does not penetrate any standing seam metal roof panels and is fully tested to be OSHA compliant. Our system comes in 24" wide or 36" wide sizes, with options for handrails on one or both sides. In addition, it can be installed level pitch corrected depending on the slope of your roof.

VIVA Presents Stainless Steel Modular Railing Systems for commercial & residential architectural railing applications on the interior & exterior. VIVA continuously develops new designs to allow architects, designers, owners, and contractors more choices and innovative new expressions for their impressive commercial projects. Utilizing their alliances with suppliers and installers throughout the country, they work with their clients as a trusted partner to ease the process of completing a commercial project.

AGS Stainless manufactures stainless steel railing systems for commercial and residential projects worldwide. Their unique and proprietary method of developing detailed plans from customer-provided dimensions allows them to fabricate custom railing solutions that rival anything built on-site. Once a system has been engineered, components are precision cut via a computer-controlled laser before being hand-welded and polished. Complete systems are shipped with simple installation instructions; each rail element reflecting the highest level of craftsmanship, design, and attention to detail. In addition to custom orders, numerous top rail, post, and infill options are available, providing a multitude of possible configurations to suit any interior or exterior project.

ULTRALOX INTERLOCKING® TECHNOLOGY manufactures premium powder-coated aluminum picket and glass railing systems for decks, patios, and swimming pools with low-maintenance living in mind. Their dedication to research and development ensures a uniquely engineered railing system that meets commercial/residential building codes throughout the US.

Ultra Aluminum manufactures and distributes ornamental aluminum fencing, gates, and railing systems to a wide network of contractors and landscapers. Their complete line of low-maintenance aluminum fencing products brings the traditional look of wrought-iron fence to Residential, Commercial and Industrial applications.

They manufacture industry-leading railing, fencing, and columns that elevate the appearance and safety of buildings where communities gather, live, and thrive. Rooted in integrity, Superior’s people, products, and partnerships encompass the highest standards. These standards are achieved with exceptional teamwork, and their undying commitment to deliver on the promises we make.

Interested in more CAD Drawings? Download CADdetails’ QuickPacks to instantly receive design files ready for use in your next project.
