Bollards provide safety and security to any premises, however, there are many to choose from. That is why we have provided these CAD drawings to make your next project easier and safer!

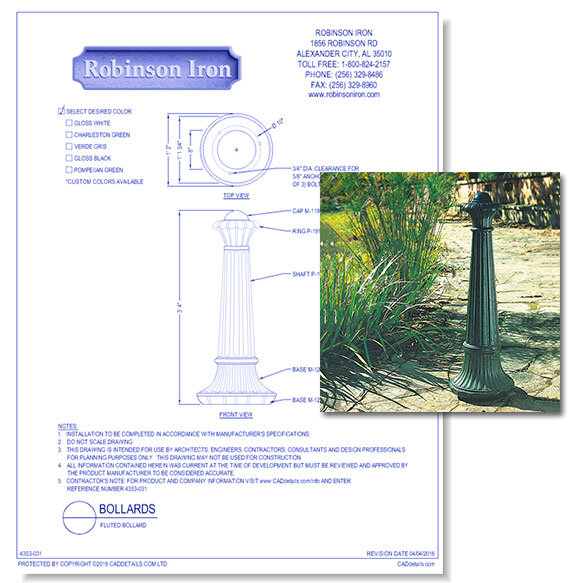

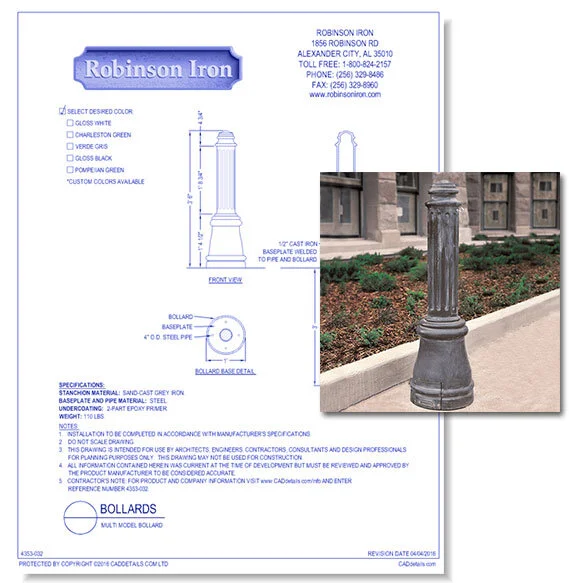

The craftsmanship of patternmakers, engineers, architects, foundrymen and fabricators transforms bronze, iron, aluminum, copper and stainless steel into virtually any design. Robinson Iron has the experience, discipline and personnel required for your project. Restoration, replication, custom casting and preservation of historic and future ornamental and architectural treasures is our passion.

Architectural Bollards

The Dabmar Lighting company specializes in Landscape Lighting, Decorative Outdoor Post Lights, Compact Fluorescent Lighting, H.I.D Lighting, as well as Lamps. Historically, Dabmar has been recognized as the source with the Lowest Prices for the Best Quality Product in the nation. Today Dabmar is a manufacturer of high quality fixtures for residential, commercial and industrial use.

Lighting Bollards

Calpipe manufactures vehicle-stopping security posts that range from functional to aesthetically-designed safety barriers. Their catalog includes removable, fixed, retractable, K-4 engineered and K-12-rated bollards manufactured. Lighted security bollards are also available, along with custom designs. Whether you need to deter vehicular traffic, control street access, or protect pedestrians, Calpipe Security Bollards has a product to meet your needs.

Active Anti-Ram Bollards

Reliance Foundry Co. Ltd. delivers the highest-quality stock and custom-designed products for architectural site furnishings, urban hardscape, traffic management and industrial applications. Since 1925, Reliance Foundry has built upon a long tradition of metal casting expertise to become an award-winning supplier for high-profile and everyday operations across North America.

Passive Anti-Ram Bollards

Bollard Warehouse provides fixed bollards, two-way collapsible bollards, and industry-first HDPE removable bollards. Our manufactured bollards are used to direct and control traffic in parking lots and in areas prohibiting vehicles. Our bollards operate as traffic and parking barriers and as a visual deterrent.

Active Anti-Ram Removable Bollards

Founded in 2005, Innoplast manufacturers and sells vehicle and facility protection products — at prices businesses can afford. Our products protect facilities in a cost-efficient way by reducing maintenance costs. We led the industry by introducing a 5-year warranty against fading and cracking. Notable product installations include UCLA, Logan Airport, 3M, and Tinker AFB. BollardGard™, a plastic bollard cover, is among Innoplast’s most innovative products.

Bollard Covers

The CEME-TUBE® will eliminate a multitude of issues which are caused from using sub-standard pier forming methods. Whether you are a contractor or a homeowner, don’t risk project failure due to inadequate pier footings for your structure.

Bollard Accessories

1-800-BOLLARDS is a Woman-Owned business and supplier of architectural and security bollards that protect property, assets and people across the world. Since 2008, 1-800-BOLLARDS, Inc. has supplied bollards to major retailers, stadiums and arenas, cities and municipalities, government facilities, colleges and universities to name a few.

Mount Bollards

Tymetal Corp designs and manufactures the most extensive line of perimeter security automatic gates and accessories for the Commercial/Industrial and the Correctional markets. Security gates and electric gate operators manufactured by the Tymetal Corp. include aluminum gates, cantilever gates, slide gates, crash gates, barrier gates, steel gates, ornamental gates, high speed gate operators, detention equipment, electric gate operators, sliding gate operators, chain link gates, and vertical lift gates.

Crash Barriers

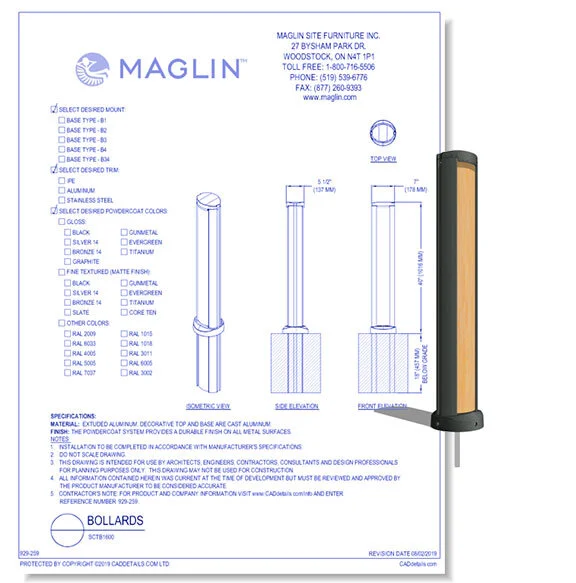

At Maglin Site Furniture Inc. we want to make your life easier! We manufacture a wide range of products including seating, trash containers, ash urns, bollards, bike racks, planters and recycling stations. For over twenty years we've been making the public furniture you require for your projects. Whether the test is from saltspray, sunshine or skateboarders - our furniture must perform to the high standards you demand.

Mount Bollards

Interested in more design files? Download CADdetails’ QuickPacks to instantly receive design files ready for use in your next project.
