Get 20+ CAD Drawings for Designing the Ideal Fireplace for Your Project

Get 20+ CAD Drawings for Designing the Ideal Fireplace for Your Project

Are you looking for a fireplace drawing to warm up your design? We have selected more than 20 CAD drawings from popular brands, including Stellar by Heat & Glo, Flare Fireplace, Concrete Creation, and more, to be used in your projects.

Stellar custom fireplaces may be designed without glass as an open hearth fireplace. Designed to give an unobstructed view of the beautiful flames, it’s the perfect solution for a UL Certified system that boasts the most flames and a firebox that is adaptable to a variety of finishing options to fit any décor.

This dynamic design eliminates extra structural engineering and more complex installation required by masonry products.

Customize the look with a modern ribbon burner and glass media and/or driftwood log set, or go more traditional with a deeper box, grate, oak log set, and glowing ember bed. We can even work with you to design the fireboxes to accommodate your favorite 3rd party firebrick liner or gas log sets.

Pre-existing designs are available in 3’-8’ widths in single-sided and see-through to easily place into a current plan or contact Stellar directly to discuss additional custom design solutions.

Fireplaces


Flare Fireplaces is where innovation, quality, and luxury come together to form new ideas. By combining superior raw materials, contemporary design, creative technology, and a frameless way of thinking we have created a full line of indoor & outdoor linear, modern fireplaces that are luxurious, simple to operate, and efficient. Our Fireplaces are unique in their clean design, superior build quality, and features. Made in Israel. Designed and tested to North American standards and requirements.

Gas Fireplaces

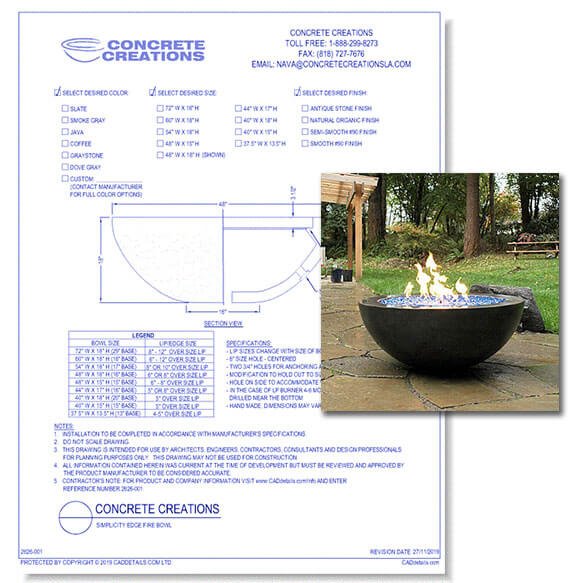

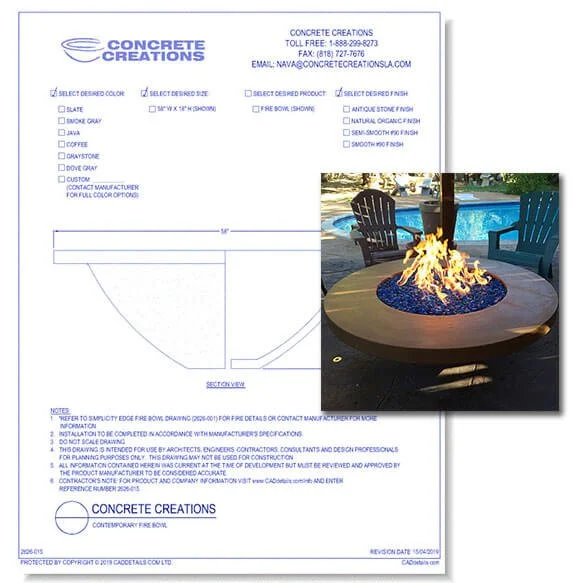

All of their products are handmade & and thrown on a wheel with iron- and fiber-reinforced concrete, built for long-lasting quality and durability. Their concrete pottery, fire bowls, water bowls, giant oil jars, and all of their concrete products are seamless and do not look like they came out of a mold, they look unique and handmade.

Fire Bowls


DreamCast is a team of artisans that creates fine concrete products for indoor and outdoor. Every piece is handmade and individually finished to our quality standards. Each piece they make is as exceptional as their clients since we ensure they are a part of the creation process. Renew your space with artistic style - choose a "ready design" or create a custom project.

Fireplace Mantels

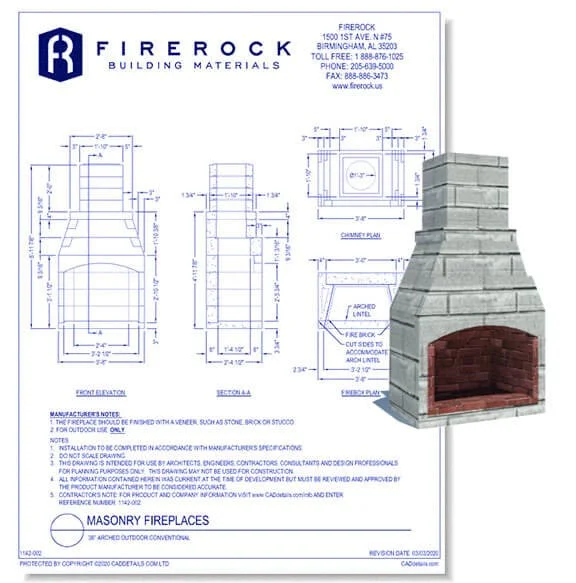

Since 2004, FireRock has been dedicated to providing quality products to the custom home market. But their focus goes beyond the products they sell - they know the service you receive is equally important. From their dedicated sales reps to their knowledgeable customer service teams, they pride themselves on being a partner to you every step of the way. They are thrilled when builders, architects, and homeowners alike call them to brainstorm design challenges or develop custom solutions. They believe that service should have the same quality and trust as the product itself.

SOLID FUEL FIREPLACES


Today, Kozy Heat is one of the leading fireplace manufacturers with a reputation for modern and contemporary designs combined with top energy efficiency for home heating. Their designs add to the look of any home, providing cozy heating for any room with our gas fireplaces, inserts, gas fireplace accessories, as well as our selection of wood-burning zero-clearance fireplace models.

WOOD BURNING FIREPLACES

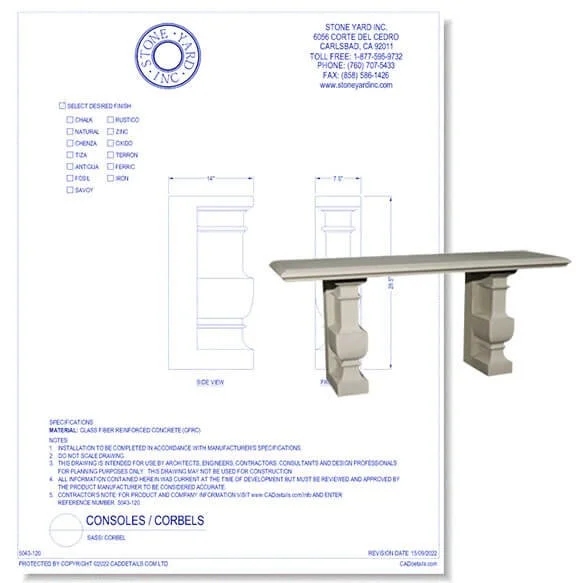

Stone Yard founder and head designer Mitch Brean collects inspiration from several sources that influence their exclusive designs. Their original stone-like pieces and customization capabilities are what makes them unique, and what draws our discerning clientele looking for handcrafted statement pieces such as: fireplace mantels, exterior sofas & chairs, decorative planters or other furnishings.

CORBELS & ANDIRONS


Interested in more CAD Drawings? Download CADdetails’ QuickPacks to instantly receive design files ready for use in your next project.
