Improve Public Safety with these 15+ Bollard CAD Drawings

Improve Public Safety with these 15+ Bollard CAD Drawings

Whether you're looking to secure a storefront, venue, or public plaza, we've gathered bollards that will secure the premises and increase the level of safety for pedestrians.

*Free registration on CADdetails.com is required to obtain the models.


Architectural Bollards

 4353-030 Cherry Street Bollard

4353-030 Cherry Street Bollard

A fluted shaft transitions smoothly into an octagonal base in our Cherry Street Bollard. The base hides the anchor bolts, creating a smart appearance.


 4353-031 Fluted Bollard

4353-031 Fluted Bollard

The shape of strength in cast iron, this sturdy bollard provides uncompromised durability.

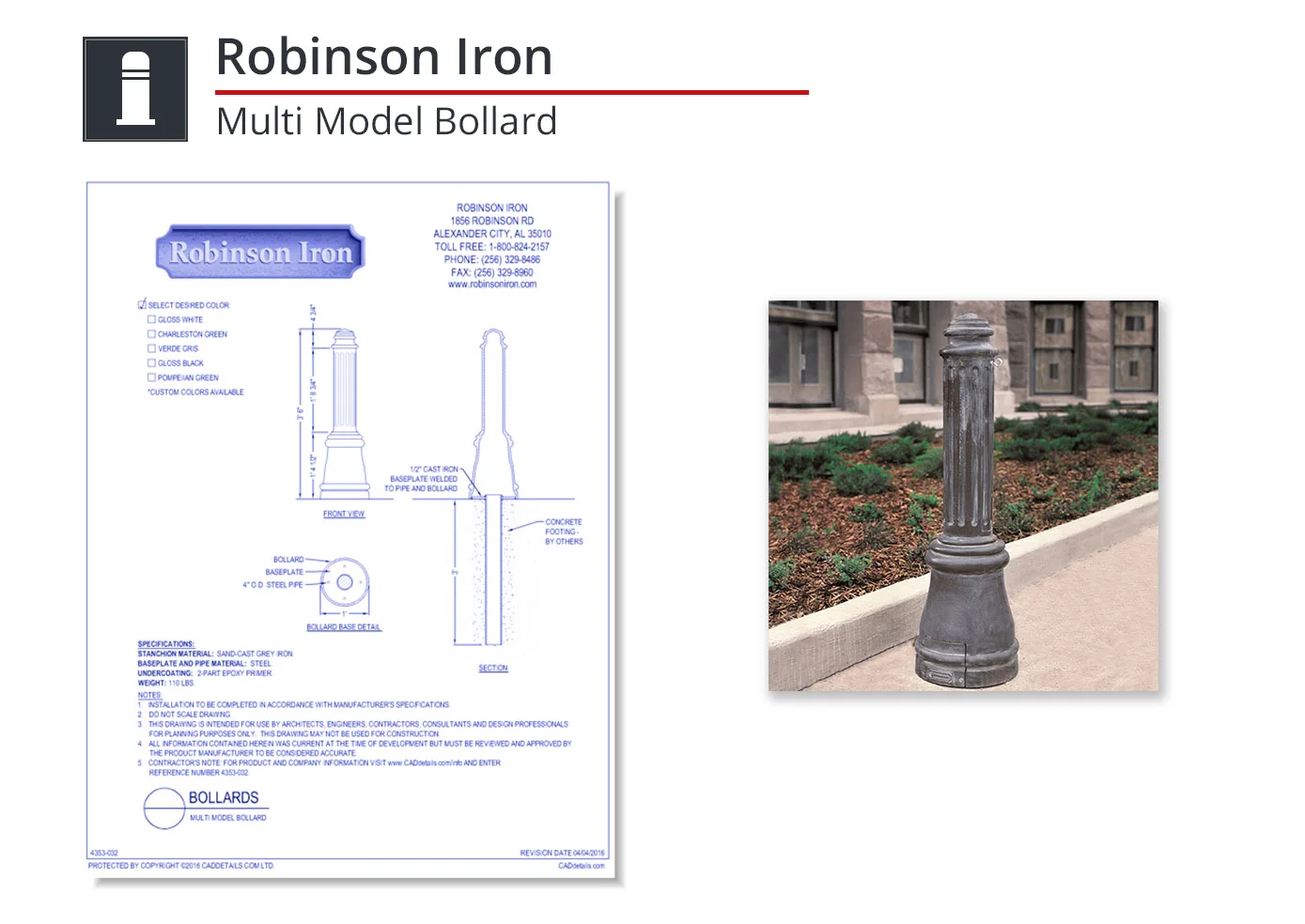

 4353-032 Multi Model Bollard

4353-032 Multi Model Bollard

The shape of strength in cast iron, this sturdy bollard provides uncompromised durability.


Lighting Bollards

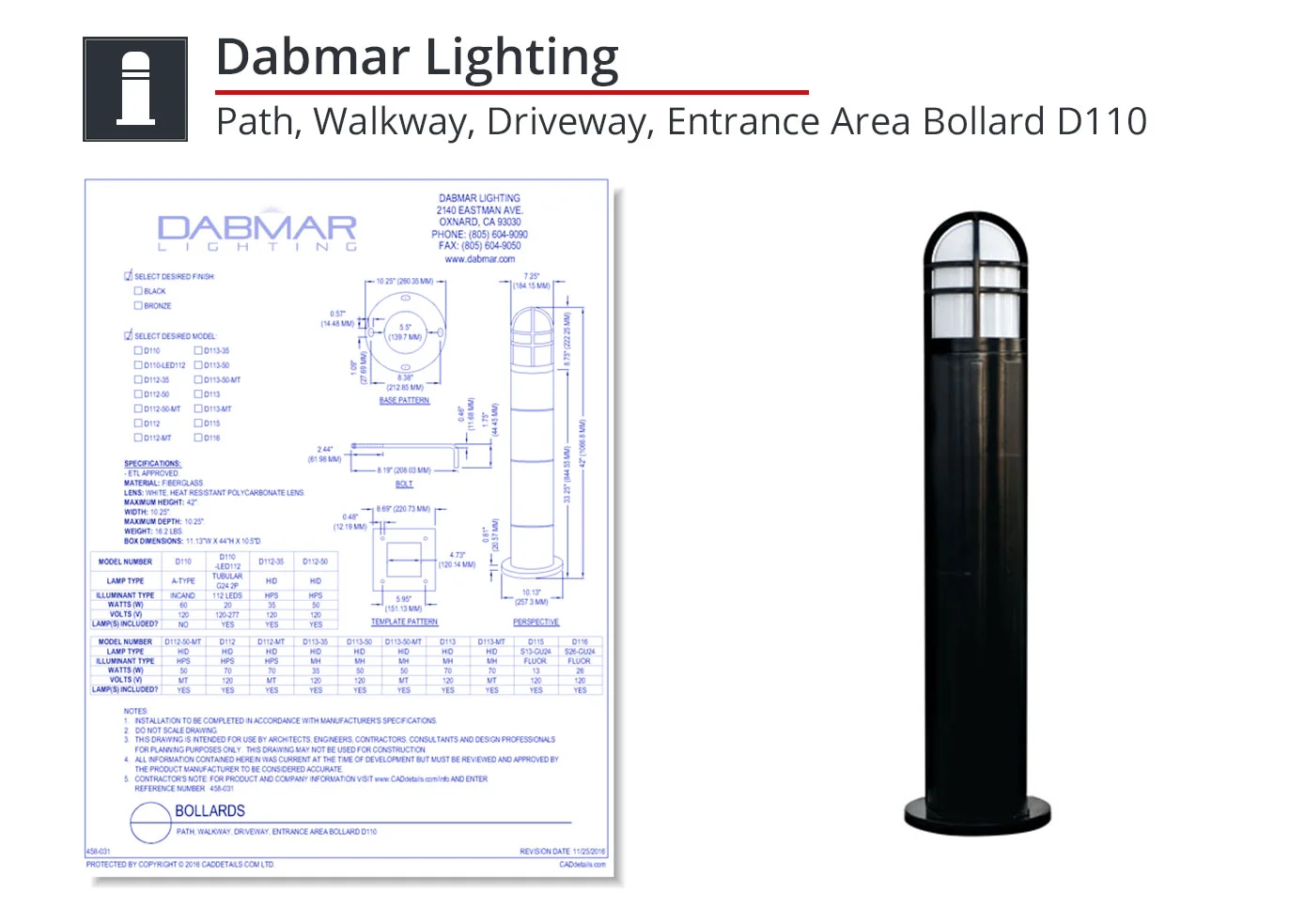

 458-031 D110 Bollard

458-031 D110 Bollard

Material: Fiberglass

Lens: White, Heat Resistant, Polycarbonate Lens

Maximum Wattage: 70 Watts Maximum

Installation Type: Surface Mount

ETL Approval: ETL Approved for Wet Location

Finishes: Black, Bronze,

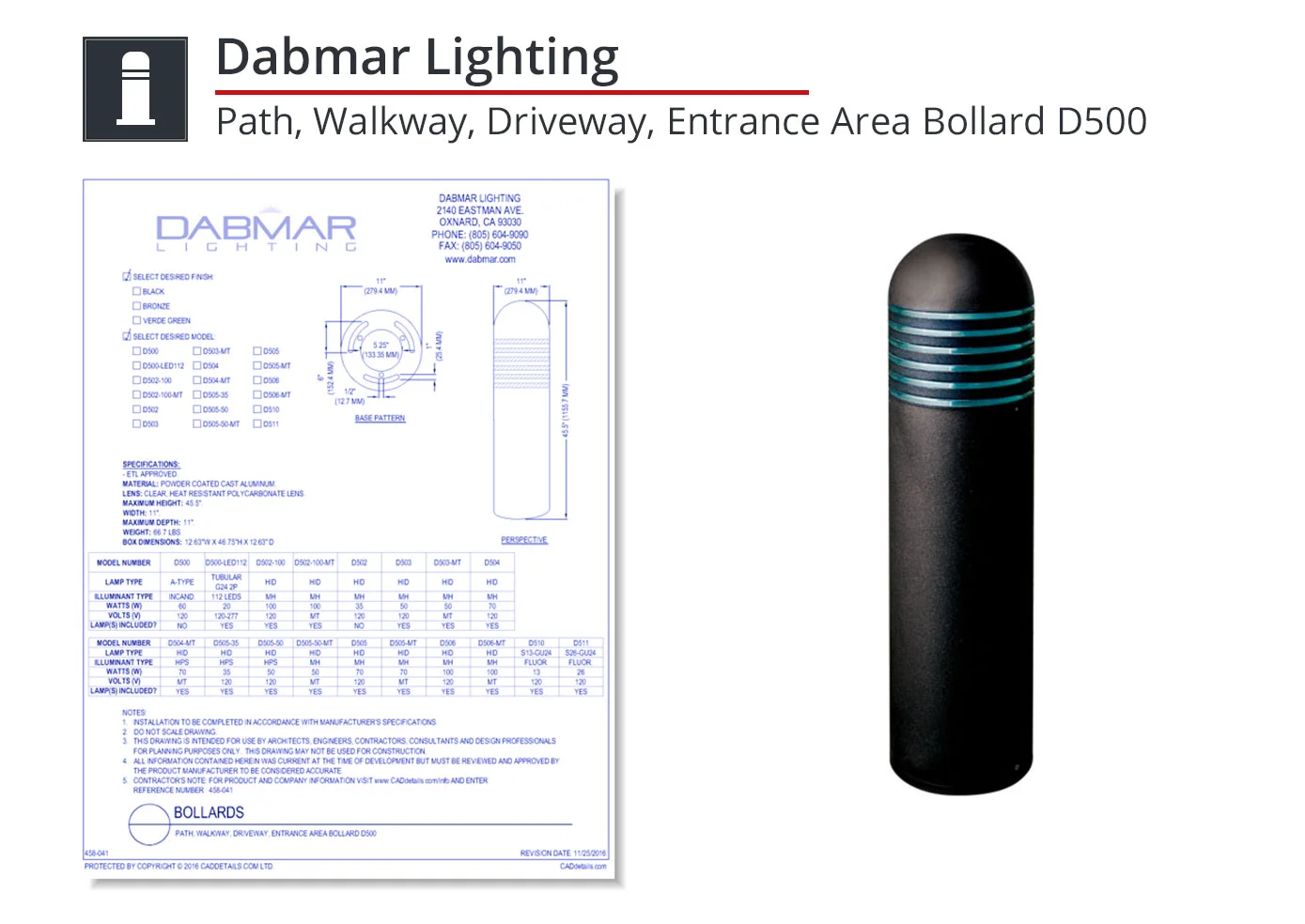

 458-041 D500

458-041 D500

Material: Steel

Lens: Clear, Heat Resistant, Tempered Glass Lens

Maximum Wattage: 100 Watts Maximum

Installation Type: Surface Mount

ETL Approval: ETL Approved for Wet Location

Finishes: Black, Bronze, Dabmar Verde Green,


 458-045 D850 Bollard

458-045 D850 Bollard

Material: Cast Aluminum

Lens: Clear, Heat Resistant, Acrylic Lens

Maximum Wattage: 70 Watts Maximum

Installation Type: Surface Mount

ETL Approval: ETL Approved for Wet Location

Finishes: Black, Bronze, Dabmar Verde Green


Active Anti Ram Bollards

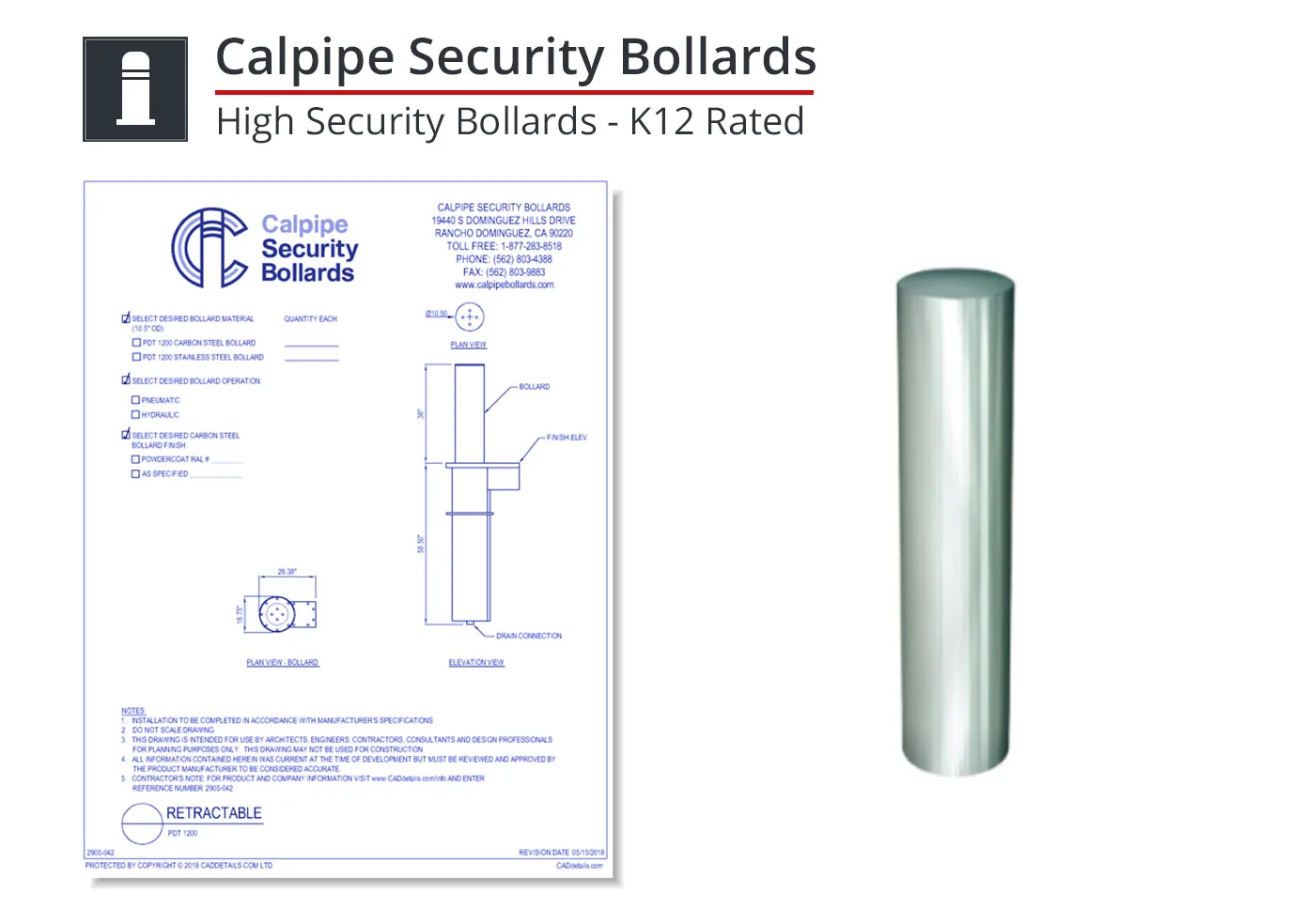

 2905-056 K12 Rated Bollard

2905-056 K12 Rated Bollard

When the highest level of safety and security is required, bollard designs still require flexibility and versatility to meet the needs of a structure’s purpose and environment. Calpipe Security Bollards’ K12/M50 rated product lines are available in a wide variety of types, sizes and styles—including retractable, removable, fixed and shallow mount versions.


 2905-055 K4 Rated Bollard

2905-055 K4 Rated Bollard

When the highest level of safety and security is required, bollard designs still require flexibility and versatility to meet the needs of a structure’s purpose and environment. Calpipe Security Bollards’ K4/M30 rated product lines are available in a wide variety of types, sizes and styles—including retractable, removable, fixed and shallow mount versions.


Passive Anti Ram Bollards

 3382-230 R-8303 Flexible Bollard

3382-230 R-8303 Flexible Bollard

The R-8303 Flexible Bollard is made from a versatile polyurethane plastic, designed to bend repeatedly—up to 90 degrees—without losing its original form. Use flexible bollards in high-traffic areas to minimize damage in case of collision. Select from 6 different colors and 4 reflector options. Embed R-8303 bollards in new concrete or use with removable mounting hardware.


 3382-231 R-8302 Flexible Bollard

3382-231 R-8302 Flexible Bollard

The R-8302 Flexible Bollard is made from a versatile polyurethane plastic, designed to bend repeatedly—up to 90 degrees—without losing its original form. Use flexible bollards in high-traffic areas to minimize damage in case of collision. Select from 6 different colors and 4 reflector options. Embed R-8302 bollards in new concrete or use with removable mounting hardware.

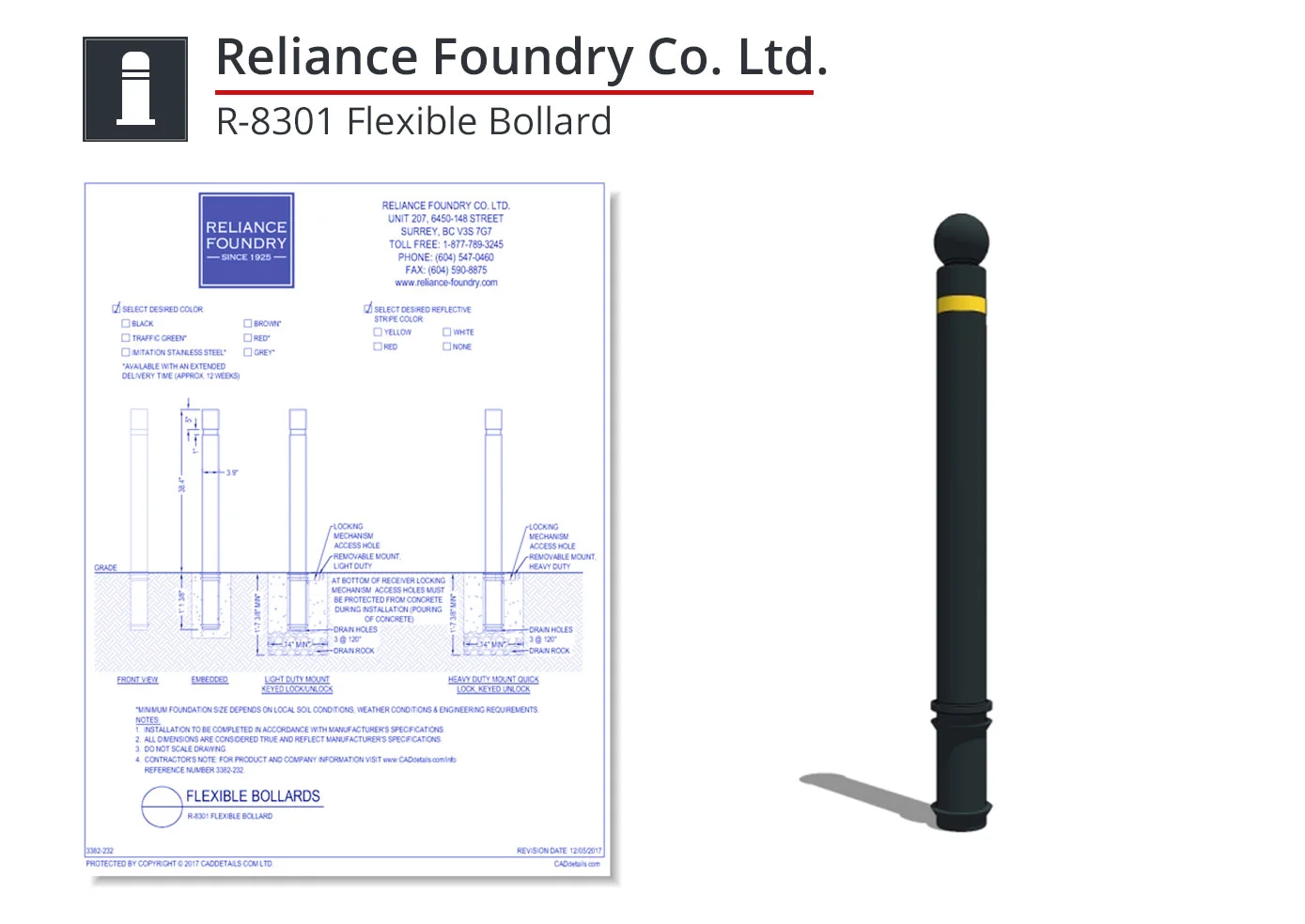

 3382-232 R-8301 Flexible Bollard

3382-232 R-8301 Flexible Bollard

The R-8303 Flexible Bollard is made from a versatile polyurethane plastic, designed to bend repeatedly—up to 90 degrees—without losing its original form. Molded spherical top creates added decorative appeal. Use flexible bollards in high-traffic areas to minimize damage in case of collision. Select from 6 different colors and 4 reflector options. Embed R-8303 bollards in new concrete or use with removable mounting hardware.


Active Anti Ram Collapsibile Bollards

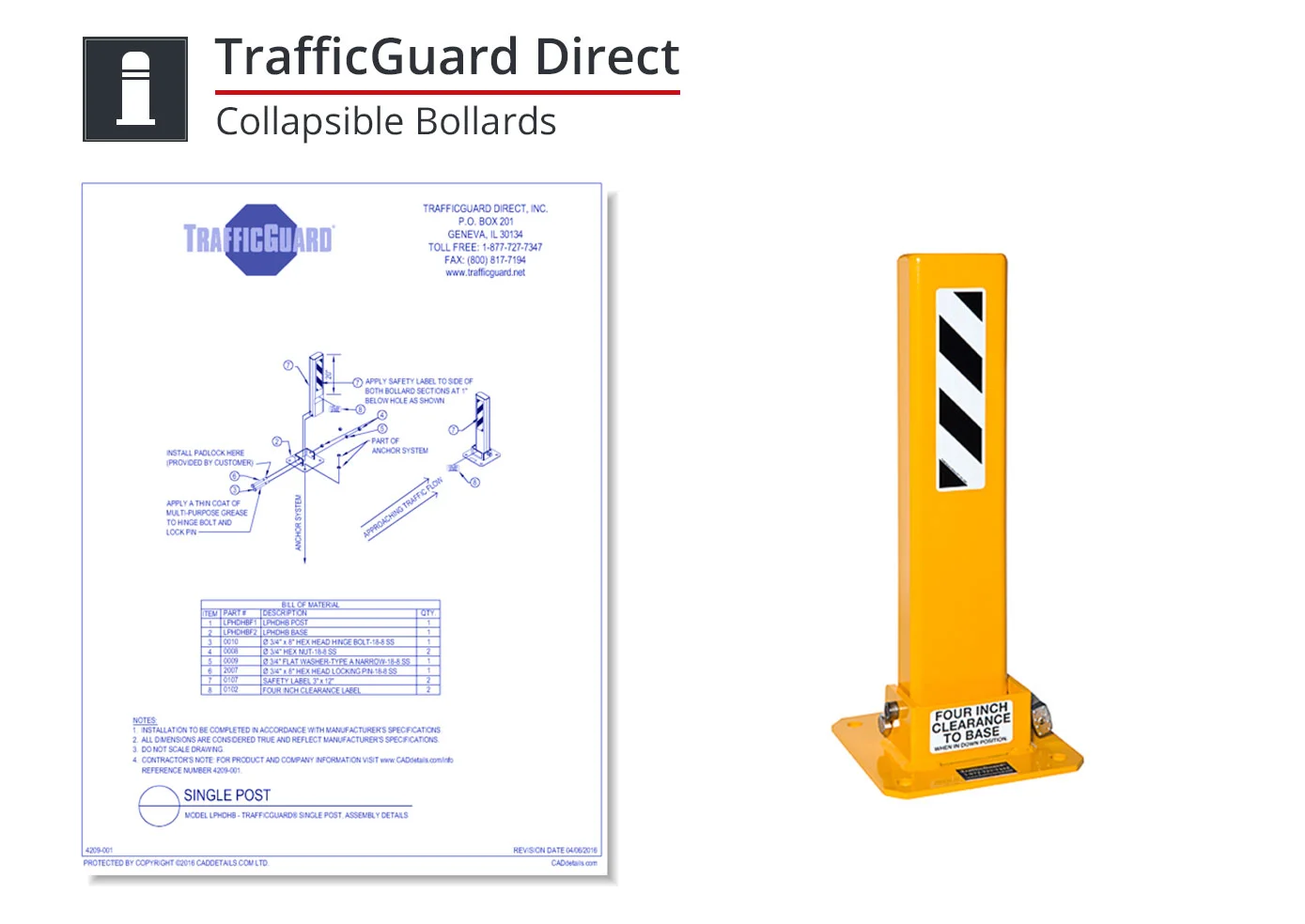

 4209-001 Collapsible Bollards

4209-001 Collapsible Bollards

One of our most popular products, the TrafficGuard Single Post collapsible bollard is the original multi-function bollard. Its unique combination of versatility and strength make it a popular choice for all types of applications, including trail access control and fire lane access.


 4209-060 Architectural Series Bollards

4209-060 Architectural Series Bollards

 TrafficGuard® Direct specializes in manufacturing top-of-the-line manually operated removable and collapsible vehicle access control bollards to help secure your restricted access areas and help manage traffic control. Our traffic and security steel bollards will assist in providing the security you need to stop unwanted vehicle access, provide protection against ram-raiding, and guide traffic. Our traffic bollards are made from high quality steel and comply with the Buy American Act (41 U.S.C 8302-8305), so you can expect durability - even under the toughest conditions.


Active Anti Ram Removable Bollards

 4815-001 Helix Lock

4815-001 Helix Lock

These removable bollards are designed to withstand vehicle impact as well as to minimize the vehicle’s damage. Unlike polyvinyl chloride (PVC) bollards, HDPE bollards won’t shatter when struck, which otherwise could be a dangerous side effect.


 4815-004 Locking Deter-a-Post

4815-004 Locking Deter-a-Post

HDPE removable bollards are a light-duty vehicle deterrent built to enforce traffic control. Our line of Deter-a-post™bollards are easily removable and provide a flush surface. Bollard Warehouse removable bollards are lightweight with a durable galvanized ground sleeve and filler piece that is resistant to corrosion.


 4815-007 Non-Locking Deter-a-Post

4815-007 Non-Locking Deter-a-Post

HDPE removable bollards are a light-duty vehicle deterrent built to enforce traffic control. Our line of Deter-a-post™bollards are easily removable and provide a flush surface. Bollard Warehouse removable bollards are lightweight with a durable galvanized ground sleeve and filler piece that is resistant to corrosion.


Bollard Covers

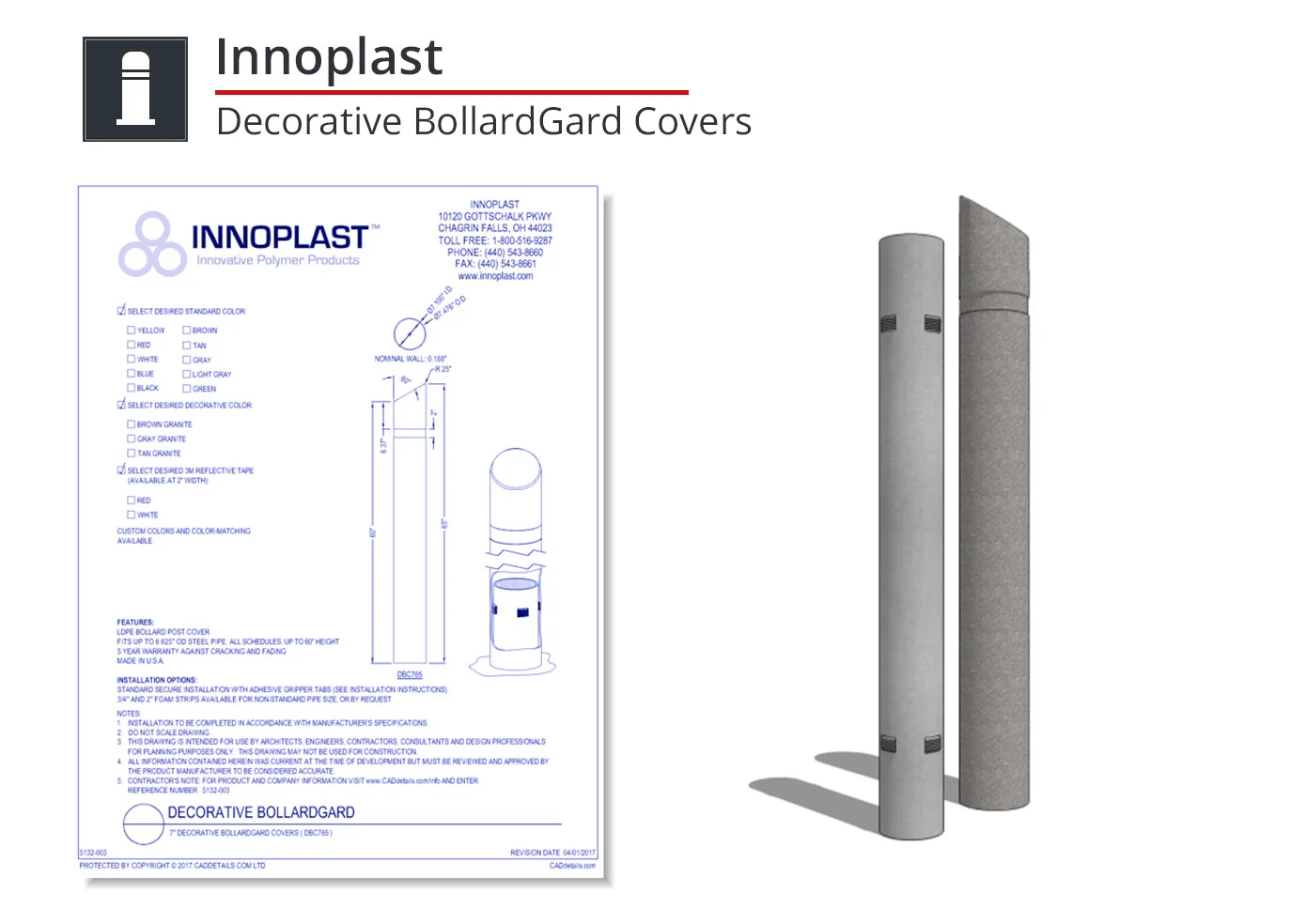

 5132-003 Decorative BollardGard Covers

5132-003 Decorative BollardGard Covers

Bollard covers are a great way to improve your facility, while reducing maintenance costs. This great alternative to painting will save you the time, expense and mess of paint.


 5132-002 BollardGard Covers

5132-002 BollardGard Covers

BollardGard bollard covers are a great alternative to painting your posts. They are available in a variety of stock colors, diameters and lengths that ship out in 1-2 business days. We also have the ability to color match with a minimum order.


 5132-010 13" BollardGard Covers

5132-010 13" BollardGard Covers

BollardGard™ bollard covers enhance and protect the appearance of steel bollards in all indoor and outdoor applications. 13” BollardGards™ are constructed from .200” thick low density polyethylene (LDPE) and 3M #5100 reflective tape for durability and long service life. Our patented GripperTabs™ installation is the fastest and easiest way to secure bollard covers. BollardGard™ is UV stable and guaranteed against fading and cracking for 5-years.


Want additional bollard design files? Download our QuickPack here.
