20+ Site Furnishings CAD Drawings for Designing the Perfect Plaza

20+ Site Furnishings CAD Drawings for Designing the Perfect Plaza

Whether you're looking to design a park, corporate plaza, or green space, having the proper site furnishings can transform the space into an area that is memorable and frequently visited by users. In this article we take a look at an assortment of seating, tables, bicycle racks, shade furnishings, and more to help you with your next project.

*Free registration on CADdetails.com is required to obtain the models.


Seating

 4894-016 Moonstone Bench

4894-016 Moonstone Bench

Moonstone is a free-form monolithic element, made using pietre di marmo (PDM), sanded or polished (on request) except for the lower part. On request an wood laminate circular bench can be supplied, anchored directly to the monolith with steel brackets. The element is equipped for ground fixing by concreting-in the leveling base. Available in two length options.


 4894-059 Air Modular Table and Bench

4894-059 Air Modular Table and Bench

Modular table and bench made of UHPC with ALFA finish consists of a straight (Air) or curved (Air S) table with linear benches, both with supports in galvanized and powder coated steel. Air S with its linear bench and curved table is the first pic-nic table, which permits contemporary conviviality, placing people at the right table-bench distance.


 4894-004 Harris Bench

4894-004 Harris Bench

Harris bench: straight bench with solid wood seat and steel edging and supports. It can be accessorized with a solid wood backrest and by adding more elements of different lengths and widths, designed to give freedom to form islands of relaxation. It can also be matched with other steel elements, for example planters.


Tables

 928-643 Airi Table

928-643 Airi Table

Organically modern Airi tables showcase contemporary form.

This graceful aluminum table has a clean, eye-catching profile.


 928-134 Rally Picnic Tables

928-134 Rally Picnic Tables

hoose Rally tables for great value without sacrificing performance.

These quality steel tables feature the proprietary protection exclusively available from the Fusion Advantage for superior performance in any climate.


 928-581 Tuscany Tables

928-581 Tuscany Tables

Tuscany tables and chairs deliver maximum impact with a minimalist design, complementing your choice of premium bamboo planks or maintenance-free recycled plastic lumber with slim steel accents.


Tables with Attached Seating

 5060-039 Camden Table

5060-039 Camden Table

Our Camden Tables encompass (4) 3' seats that are supported by robust 2 7/8" OD framework. These tables also come standard with umbrella holes. Choose between an Inground or Portable/Surface Mount leg option (mounting plate covers are standard with either option). Completely coated in our AAMA 2604-05 compliant powder coating.


 5060-158 Camino Round Table

5060-158 Camino Round Table

Our 42" Universal (ADA) Access Round Tables with attached chair seating come in our SQUARE PERFORATED pattern for the seats and in the SQUARE PERFORATED or SOLID top options.  ADA tables come in a 3, 4 or 5 seat option, each with (1) Universal (ADA) Access area per table (Non - ADA versions are available,


 5060-179 Spyder Round Table

5060-179 Spyder Round Table

Select either a 36" or 46" Round Spyder Series 3 Legged Table that utilizes 2 3/8" OD Inground or Portable/Surface Mount frames . The 46" size allows for enough room for wheelchair access in each area between the 3 seats. The Spyder Series unique leg design allows for easy clean-up with less legwork touching the ground.


Waste & Recycling

 5100-136 Decatur Trash Receptacle

5100-136 Decatur Trash Receptacle

Sleek, modern design combines the gentle curves of round pipe with the aerodynamic lines of rolled steel sheet.

Rock solid construction with fully penetrating welds throughout.

Framework is constructed from massive 3.5" steel pipe.

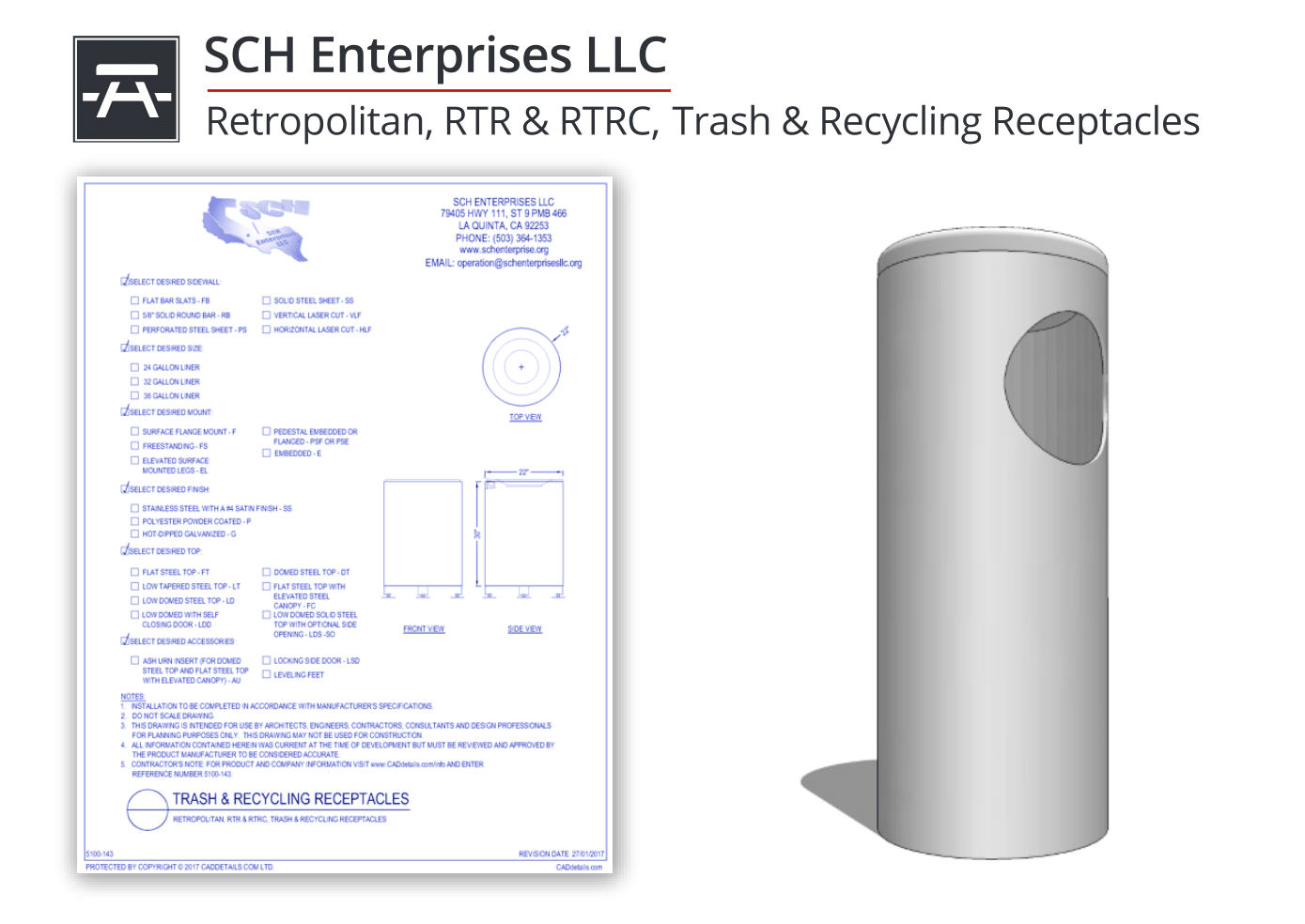

 5100-143 Retropolitan Trash & Recycling Receptacles

5100-143 Retropolitan Trash & Recycling Receptacles

The Log Fort provides a more natural aesthetic while endless fun for children.


 5100-145 Envirofriend II Trash & Recycling Combo

5100-145 Envirofriend II Trash & Recycling Combo

The SCH Enterprises Modular Envirofriend X Litter/Recycling Station is made such that the individual components can either stand alone as trash receptacles and recycling receptacles or next to one another to create litter/recycling stations


Bicycle Racks

 086-008 The Peak

086-008 The Peak

The Post and Ring rack provides a modern look for bike parking with small footprint and only one installation point. Designed to coordinate with the Saris City Rack, the Post and Ring Rack can add to a cohesive streetscape design or can provide unique standalone bike parking.


 086-002 Bike FM Bike Dock

086-002 Bike FM Bike Dock

The bike dock is a simple and intuitive design that provides space efficient, high security bike parking. The bike dock accommodates two bikes, supporting them at two points and allowing for u-lock compatibility of both the wheel and bike frame.


 086-026 Bike FM Wave Rack

086-026 Bike FM Wave Rack

The wave rack offers a simple and compact way to park bikes. With a wide range of bike capacity and options, the wave rack provides an easy answer to meeting parking demands.


Planters

 5043-004 Acqua Planter

5043-004 Acqua Planter

Like many of our expertly designed stone pieces, the beauty of the Acqua low bowl planters that is that they easily meld with both classical and contemporary styles. The finely carved concentric ridges of this unique planter bowl display a subtle shift from uniformity in varying widths, adding to the piece’s visual interest. For both indoor and outdoor use, this fashionable piece is just as at home in a metropolitan hotel as a tropical resort.


 5043-016 Aztec Planter

5043-016 Aztec Planter

Modeled in the fashion of pre-Colombian art and architecture, the Aztec planter makes a perfect addition to South American-, western-, and tribal-themed décor. The barred ridges of these stone hotel planters are reminiscent of the stepped pyramids created by the ancient civilization that inspired its design.


 5043-034 Etruscan Bowl Planter

5043-034 Etruscan Bowl Planter

Our own unique tribute to the ancient pottery of the same name, the Etruscan fiber-infused composite concrete planter bowl is a truly classical piece, despite its cutting edge construction. The Etruscan bowl planter embodies the true skill of the ancient artisans, creating works of art that were both functional and visually appealing with their radial perfection and simple details.


Shade Furnishings

 5129-001b Uhlmann Type T Umbrella

5129-001b Uhlmann Type T Umbrella

The Uhlmann Type T Umbrellas, with their eye-catching clean lines, - classic in their simplicity, complement and enhance any environment. Popular in the hospitality industry, commercial and residential setting, restaurants, hotels, resorts, spas, private clubs, theme parks and other commercial establishment that appreciate their visual appeal, strength, durability, and practicality. Residential customers enjoy them at pool side, or as weather shades for extended outdoor living.


 5129-004a Titan Wind Resistant Umbrella

5129-004a Titan Wind Resistant Umbrella

"Inner strength and outer beauty" is a fair characterization of our StrongWind Umbrellas. Their unrivaled strength is combined with beauty and sophistication that is presented with meticulous workmanship. Their rugged strength makes them the perfect selection for hill tops, roof tops, lakesides and ocean sides, - and any windy location where extra strength is necessary. They are very popular in the hospitality industry, - hotels, restaurants, cafes, pubs, municipalities, theme parks rely on their exceptional strength.


 5129-007 Cantilever Patio Umbrellas

5129-007 Cantilever Patio Umbrellas

The Uhlmann Type FX Cantilever umbrella provides complete flexibility of use by offering uninterrupted free space beneath the cover. There is no central mast to consider, which is especially important in a commercial situation when arranging tables or furniture for dining or leisure use. The unique design is built to the highest standards and with the usual Uhlmann attention to detail, but with aesthetics to the fore.


Bollards

 5046-032 Deep Mount Bollard

5046-032 Deep Mount Bollard

1-800-BOLLARDS line of deep mount high security bollards are the most economical solution to protect your property and assets with the highest level of perimeter security available.


 5046-019 Fixed Bollard

5046-019 Fixed Bollard

1-800-BOLLARDS line of Fixed Bollards are the simplest form of perimeter security. Once installed in an engineered footing, the fixed bollards will provide a sturdy and long lasting solution for asset, property and pedestrian protection.


 5046-054 Manual Retractable Bollard

5046-054 Manual Retractable Bollard

1-800-BOLLARDS manual retractable and assisted lift manual retractable bollards rise out of the ground to protect property and assets. These bollards are the most complete line of architectural to medium security retractable bollards on the market.


Looking for even more CAD files? Browse CADdetails' CAD Drawings library.
