Whether you’re looking to secure a commercial establishment or private residence, we’ve gathered CADdrawings that can meet your security needs.

*Free registration on CADdetails.com is required to obtain the models.


Residential Fences


Versai Residential Fence is a premium quality and cost-effective system capable of handling aggressive grade changes frequently seen around homes.



There's a security that comes with having such a vast line of options at your fingertips, and that's because they're not just options—they're solutions. Fortress™ Fence Products offers fence solutions for residential, multi-family and commercial needs, plus unique customizations and accessories beyond fence.



The Estate Ornamental Privacy Fence is perfect for those who want a fusion of classic ornamental iron fence combined with the privacy provided by the wood pickets. Blending the two styles together, you can now surround your home with one of the most upscale privacy fences on the market.


Security Access System

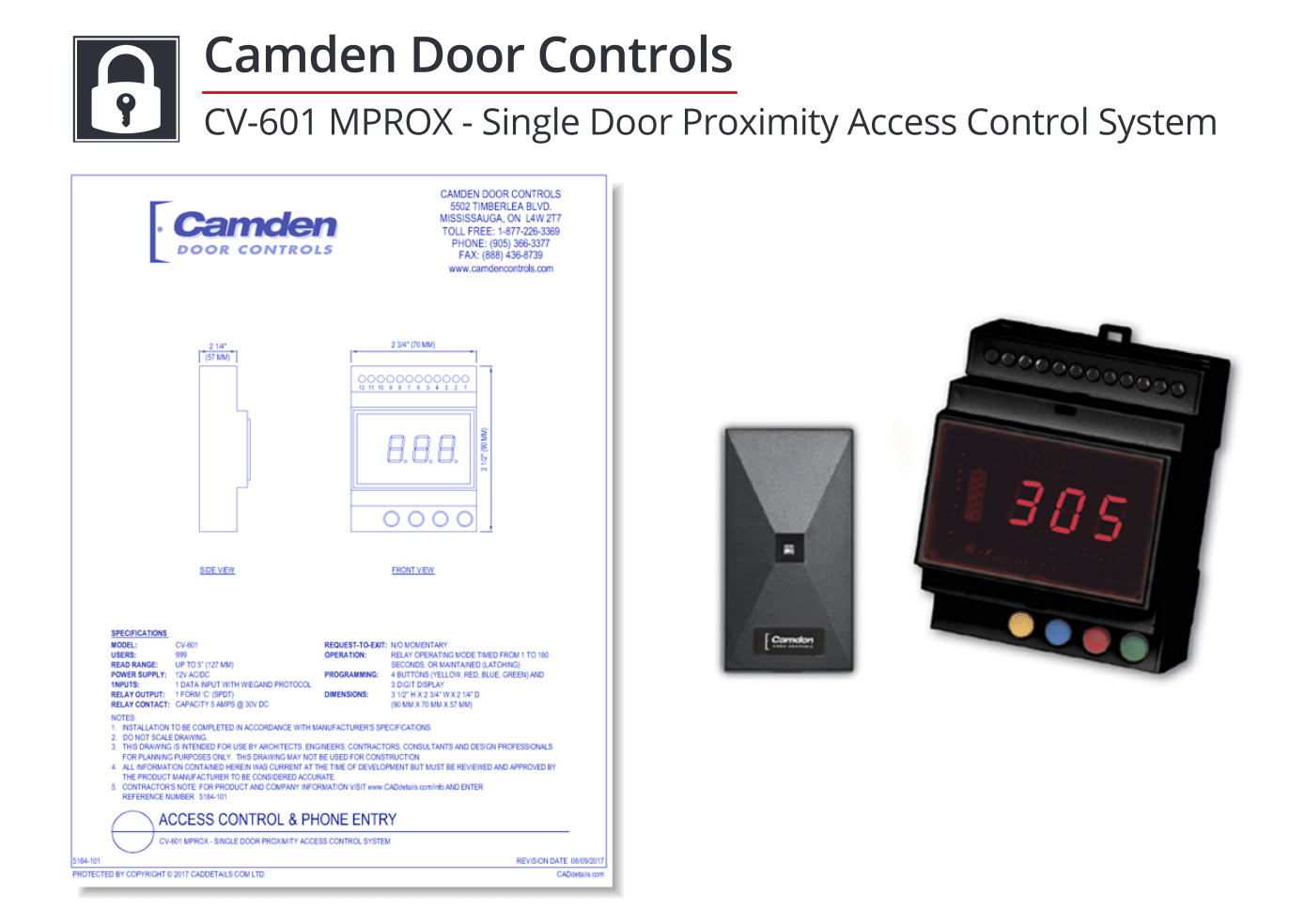

CV-601 MPROX is a stand-alone proximity reader system, designed for use in industrial and commercial applications. MPROX provides excellent security and functionality, and is easy to program and install. MPROX consists of two parts: a vandal and weather resistant mullion-mount proximity reader, and a small programmer/controller, which is installed on the secure side inside the facility. The system has a capacity of 999 users. Cards/fobs can be individually or batch enrolled/deleted. All programming is done through the controller and reader - there is no need for computers or software to enroll or delete cardholders.



Camden CV-634 and CV-626 Series Piezo keypads utilize ceramic alloy sensors below the metal housing that only need slight pressure to activate the keys on the keypad. These keypad/prox card reader combos will integrate with most access control systems.

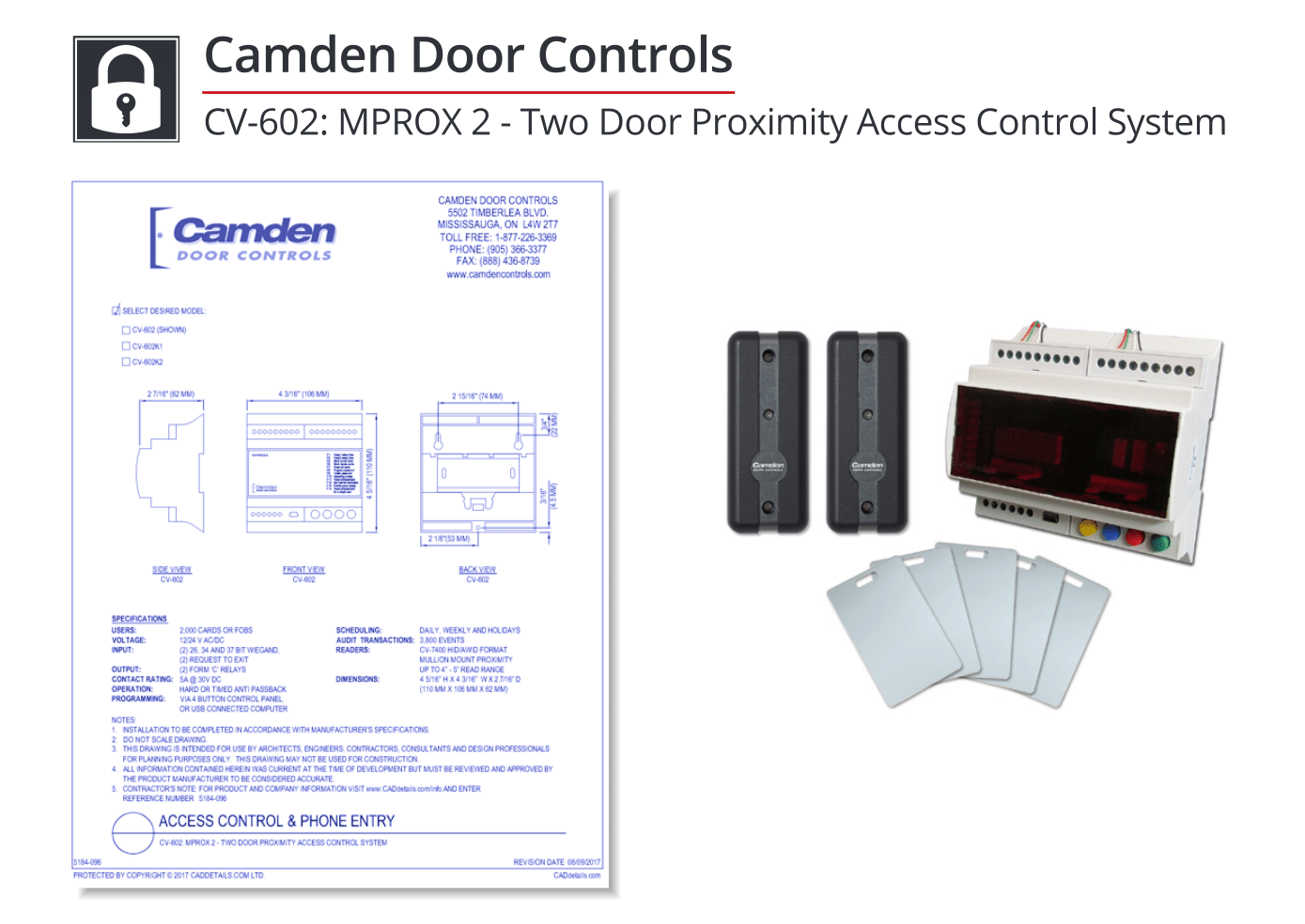

CV-602 MProx 2 two door proximity access control systems consist of a small programmable controller (installed on the secure side of the facility) and vandal and weather resistant HID/AWID mullion mount proximity readers. The system has a capacity of 2,000 users. Cards and FOBs can be individually or batch enrolled/deleted using buttons on the controller, or via a USB connected computer. System software (included) support advanced scheduling and a 3,800 event audit report.


Security Metal Fences


The industry's largest selection of architectural electro-forge welded security grilles. All of our grilles are polyester powder coated in one of our 15 standard colors.



Offered in both aluminum and stainless steel, the Eclipse panel design provides 80% or 100% direct visual screening. Screening does not affect air circulation.



The industry's largest selection of architectural electro-forge welded security grilles. All of our grilles are polyester powder coated in one of our 15 standard colors.


Security Aluminum Fences

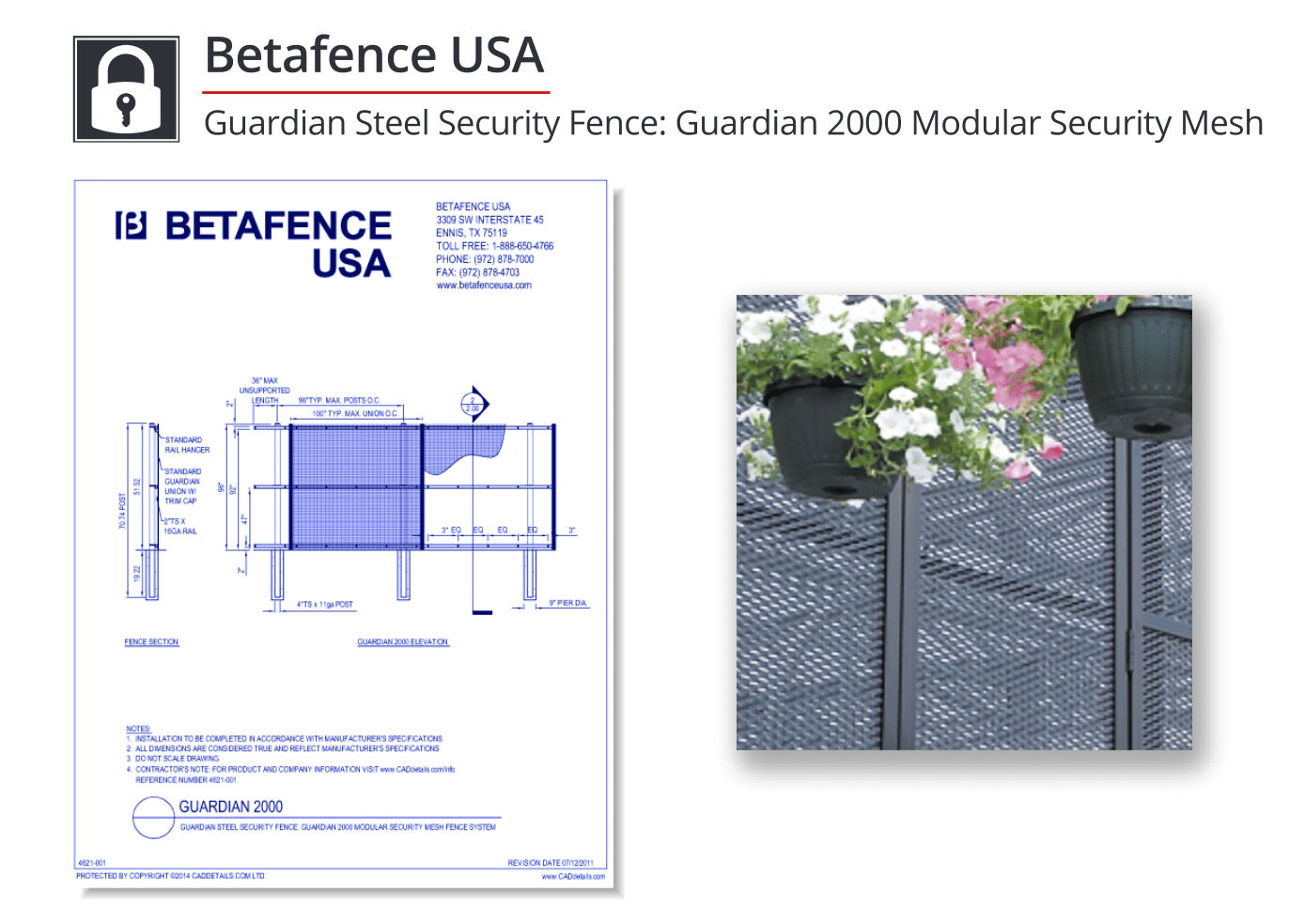

High strength security mesh panels create an effective anti-cut, anticlimb barrier. The Guardian 2000 model is offered standard with SentryGuard 34-9 mesh, and a wide range of additional mesh options are available.



The Palisade-EZ Fence System 10ft panel height provides an attractive solution for pedestrian-resistant security barriers. Utilizing high-strength steel components, this affordable security fence system is configurable to meet a wide range of risk-based requirements.

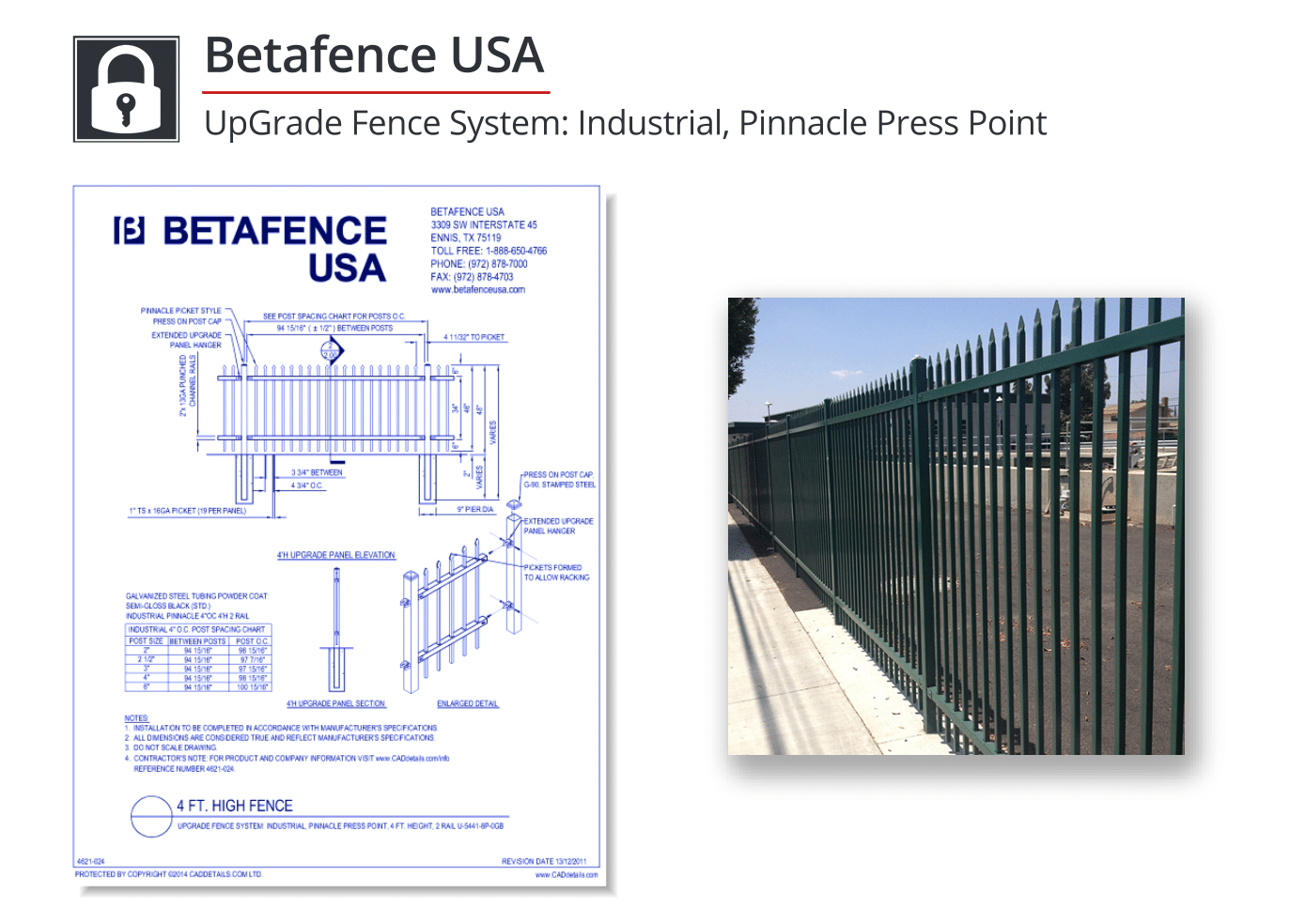

Iron fence posts by Betafence are available in a press spear design called Pinnacle. The Pinnacle design adds a subtle design touch to your home’s iron fencing, and the understated look is also perfect for any office, church or school application as well. Pinnacle tops are offered for 2 rail, 3 rail and 4 rail sections.


Security Transaction Windows

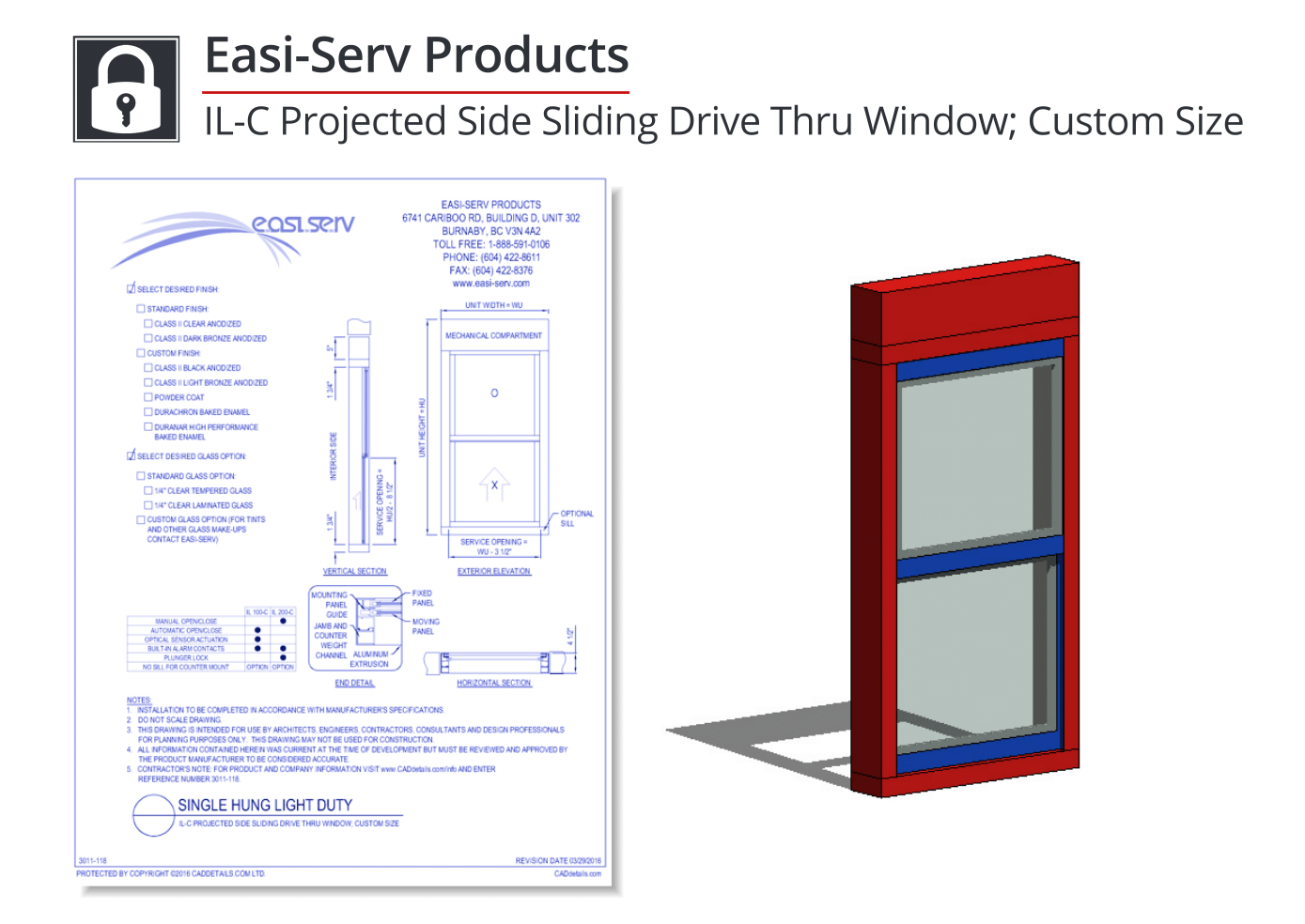

Single Hung Light Duty Window - IL Series Premium vertical lift window with one fixed sash, one opening sash



Bi-parting window with transom - SBT Series Premium bi-parting window with transom, two fixed panels, two top hung opening panels



Single Hung Light Duty Window - IL Series Premium vertical lift window with one fixed sash, one opening sash


Door Alarms

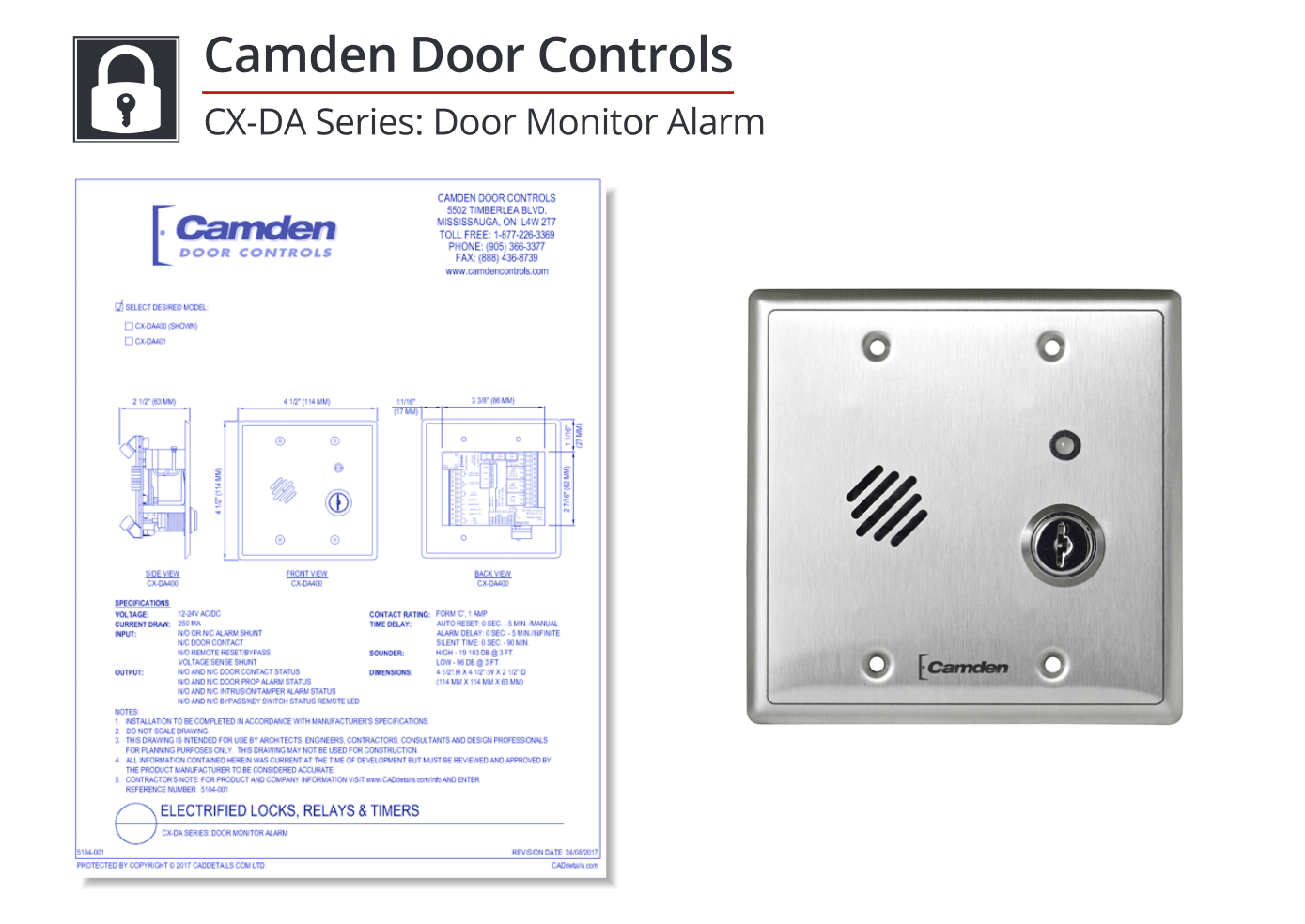

CX-DA-400 double gang door monitor alarm features a rugged stainless steel faceplate, 4 inputs, 5 outputs and has a range of adjustable time delay functions. It is designed to complement any access control system by providing prop/door held open and intrusion/door forced open detection, as well as local alarm and reset.

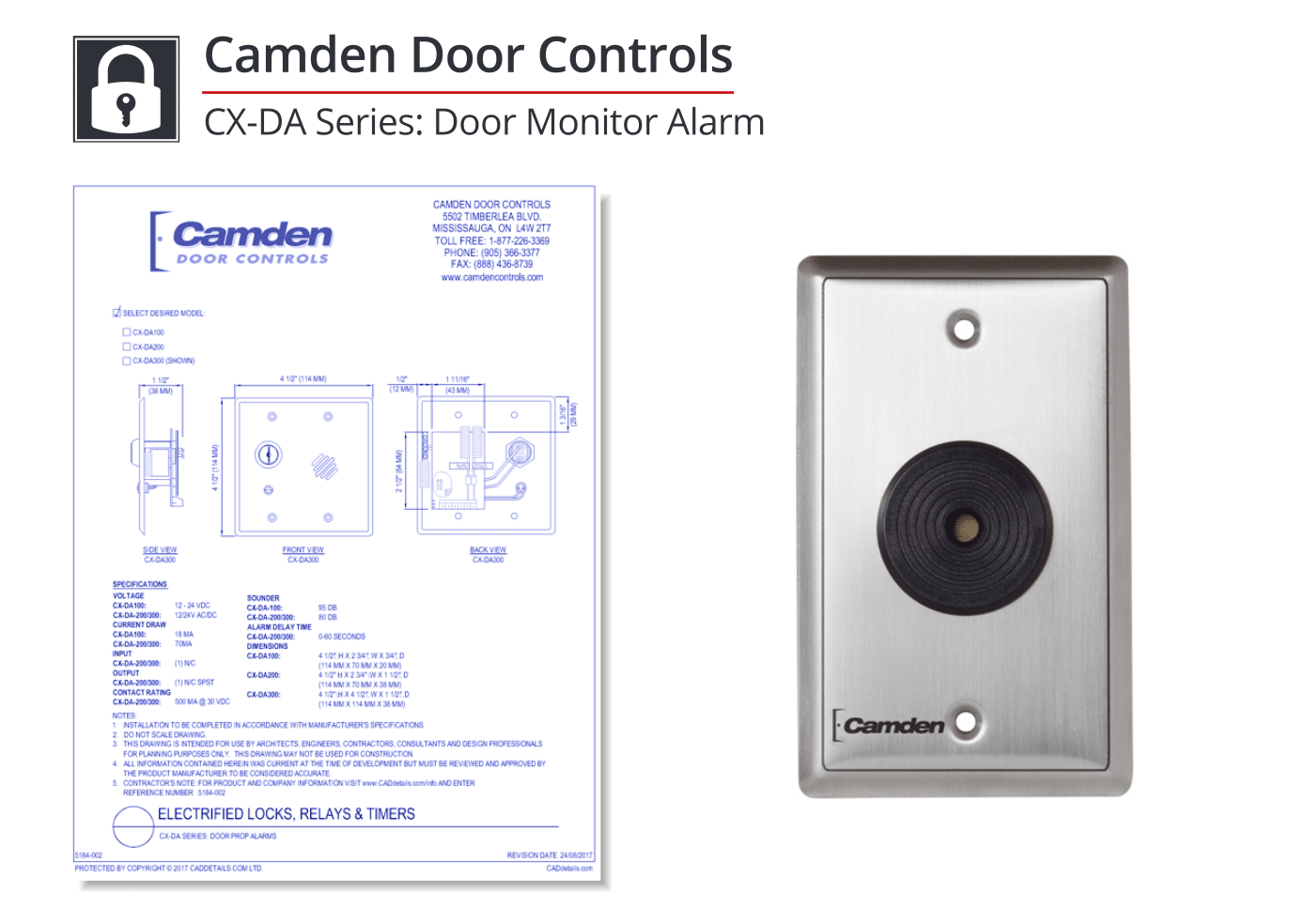

The new range of Camden door alarms feature a rugged design with heavy duty stainless steel faceplates, and provide an easy to implement solution to the common issue of doors being used, propped or held open without alerting facility or security staff. CX-DA100, CX-DA200 and CX-DA300 models are designed to offer an affordable solution for stand alone applications.


Railing

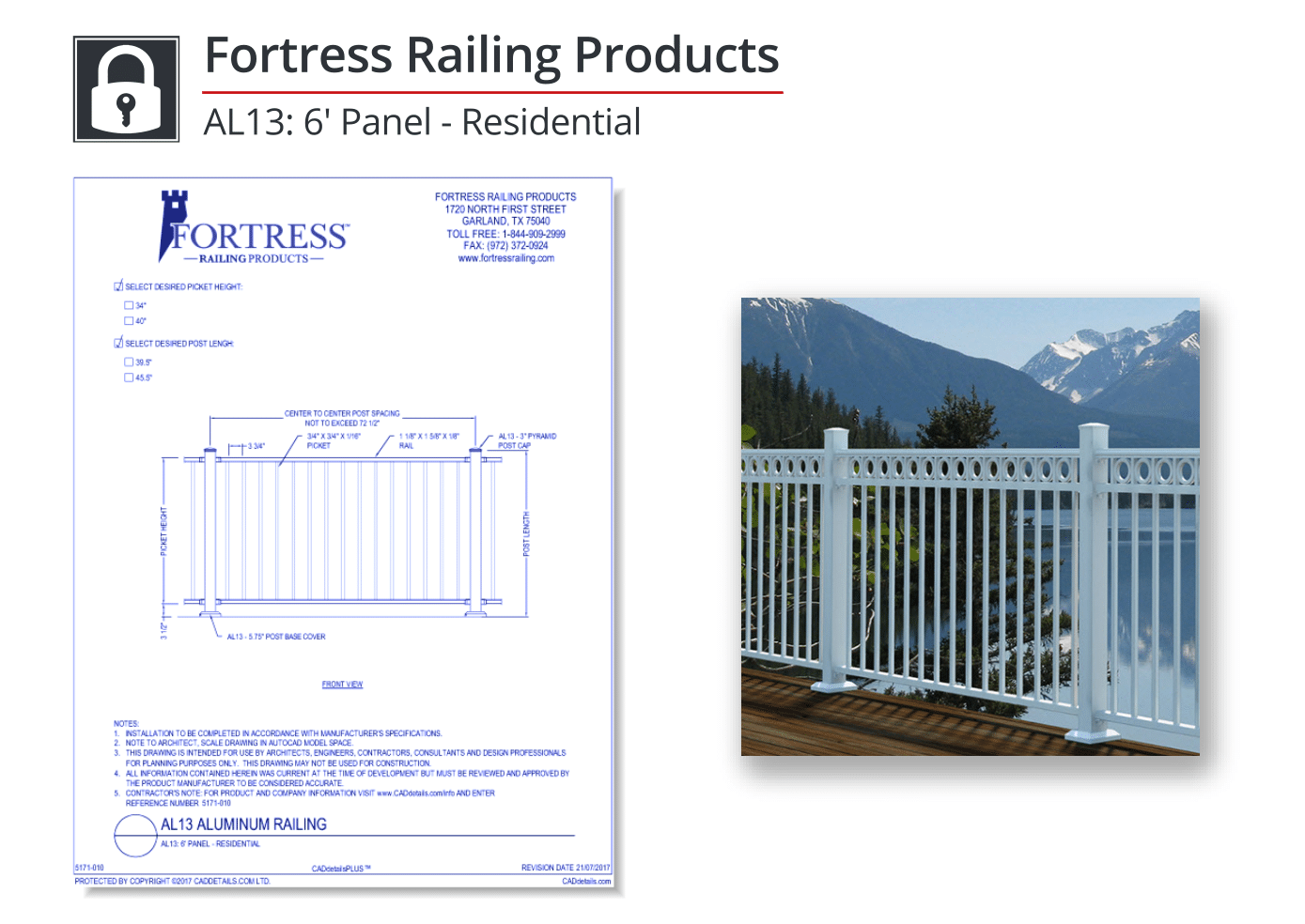

Fortress™ Railing Products Al13 is an innovative, first of its kind, fully pre-welded aluminum railing system. Distinctly different from aluminum kits, Fortress™ Railing Products Al13 is attractive and easy to install with its simple bracket systems. It also has superior performance in strength and safety, which is a unique benefit to a pre-welded system. Quality welding and premium powder coating create a virtually maintenance free system designed for use in a variety of environments.



Traditionally when using a glass system it is complicated to order and install. Fortress™ Railing Products has simplified the Glass Railing industry by developing a simple drop in solution that is easy. Choose your design by the choice of Full Glass Panel or Glass Balusters and enjoy the view with peace of mind that your system is not only beautiful but Fortress™ Strong.
