15+ CAD Drawings of Railings for your Residential or Commercial Projects.

15+ CAD Drawings of Railings for your Residential or Commercial Projects.

Whether you’re looking for glass or aluminum, commercial or residential railings, we’ve gathered up an assortment of railings to suite your needs in this post.

*Free registration on CADdetails.com is required to obtain the models.


Glass Railings


Our "Chicago" design is based on a 5/8" wide flat stainless steel baluster with glass panels. Offering clean, straight lines and baluster spacing up to 6’ apart. This combination makes our "Chicago" glass handrail system a perfect alternative to a structural or button supported glass systems.



A single 304 stainless steel round baluster with clamp style glass fittings make up our Modesto glass railing system. Like our other systems, the adjustable handrail segment allows any angle of descent and change of direction possible. Utilizing powder coated fittings, an interior color scheme or design can be matched, making the Modesto ornamental railing system an affordable alternative to any stainless steel system.

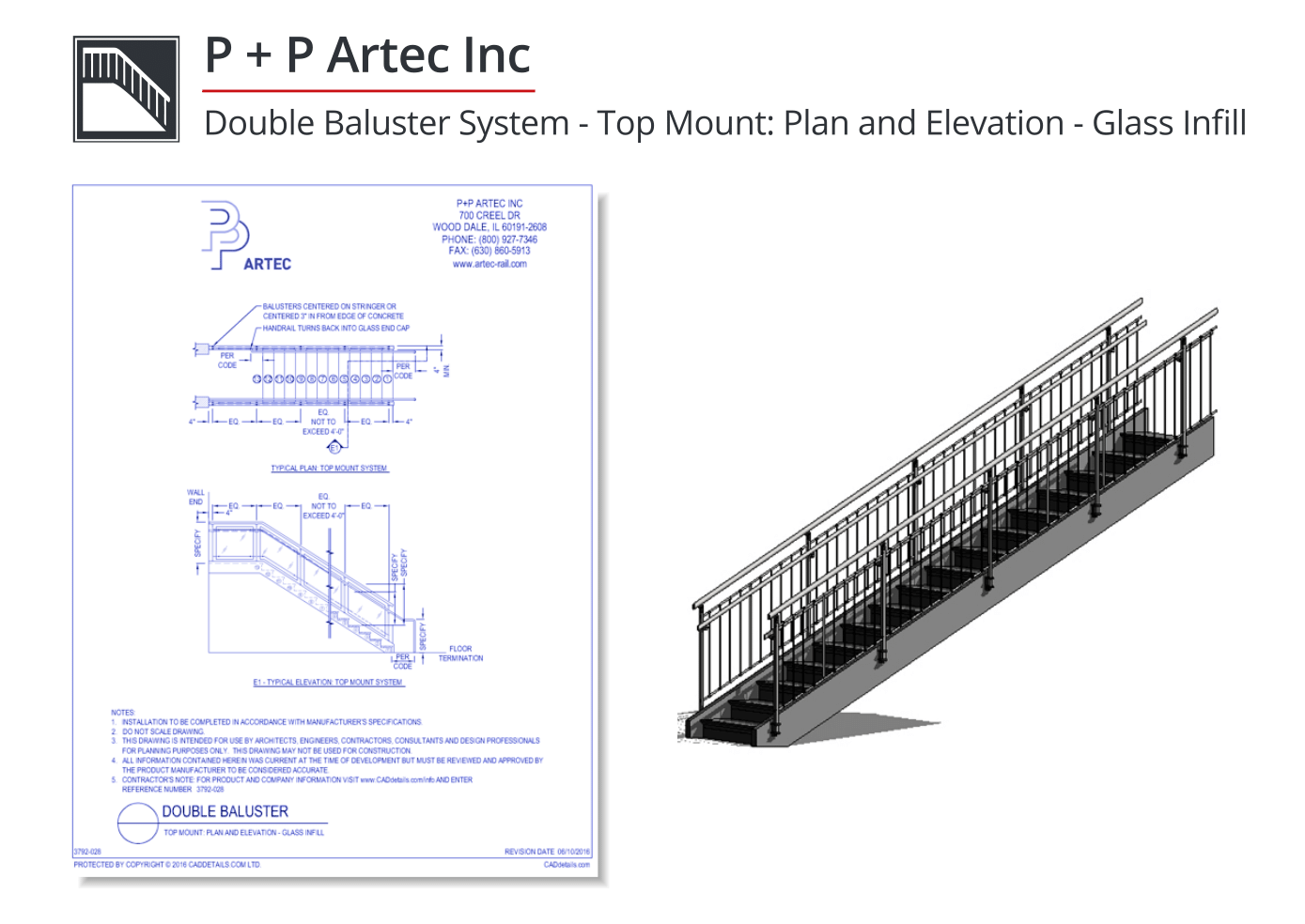

"Double" side-by-side 304 stainless steel baluster tubes comprise the basic element of this custom railing system. This unmatched design makes the Double Baluster system an ideal choice for your building. With an adjustable handrail segment, all angles of descent and changes of direction can be accommodated.


Metal Railing


AVCON® offers an almost endless variety of infill options, profile shapes and mounting applications allowing you to choose your own combinations of profiles for that “look” unique to your design. Our Powder Coated Aluminum Railing Systems are manufactured using a superior quality Powder Coating technique. Where custom or special colors are required, you are able to choose from hundreds of available standard colors at little to no additional cost.



• Lifetime Warranty • Meets IBC Code • Knockdown boxed system • Unique Continuous top rail feature • 7 standard colors available • Superior 2-4 mil thick AAMA Architectural Grade powder coating • Wall, flange, 6” core and fascia mounts available • Level, Stair, Ramp and Radius applications • Environmentally friendly – Contributes to sustainable design



AVCON® offers an almost endless variety of infill options, profile shapes and mounting applications allowing you to choose your own combinations of profiles for that “look” unique to your design. Our Powder Coated Aluminum Railing Systems are manufactured using a superior quality Powder Coating technique. Where custom or special colors are required, you are able to choose from hundreds of available standard colors at little to no additional cost.


Aluminum Railing


Titan Pro Rail was created with the installer in mind. A Titan rail section assembles in minutes and is ideal for residential and commercial applications. Metal-to-metal connections add to the sound engineering that enables easy and safe installations. Titan vinyl-clad aluminum railing is manufactured using the highest quality materials to meet your performance and building requirements.



Endurance Original Rail, an aluminum reinforced vinyl railing system, is the cornerstone of the RDI product line. Our most complete railing system kits are coupled with a variety of accessory brackets that allow installation to almost any surface at any level angle up to 45º. Simple form and dependable function unite this railing design to maintain safety without sacrificing the elegant presentation of your home or commercial space.



AVALON ALUMINUM RAILING®, part of the RDI Metal Works® family, brings you many of the features you’ve loved about our other products with a new attitude. Unique style options combine form, function and versatility to add a rich, stylish look to your home while adding safety and security at the same time. Choose traditional square baluster rail panels, or for a truly high end look, try glass slats for your infill.


Cable Railing


The VIVA TEE™ Railing System is a contemporary minimalistic design for a cable railing application. The structural "T" section offers the post stability against the tension from cable strands, while concealing cable mounting hardware. The adjustable top rail holder provides the rail height adjustability required to mask the floor tolerances. TEE™ System is available with cable in 1/8" & 3/16" diameter cable.



CUBE™ Stainless Steel Cable Railing System provides clean defined lines and a robust contemporary look. The system is made of 2”x2” square posts, terminating into monolithic pyramid top cap creating continuous clean lines throughout the components. Railing in-fill between the posts is mounted via fixed point holders for mounting of Glass or any other in-fill of your choice.



CIRCA™ System comprised of round tubular post, a simple yet highly desired look. This system allows for a wide choice of in-fill options of Glass, Metal Panels, Cable, Multi-line & Pickets. Railing in-fill between the posts is mounted via fixed point holders for mounting of Glass or any other in-fill of your choice. CIRCA™ Railing System is designed and engineered as per the ASTM E985 and IBC 2006 standards. Stainless Steel is available in Grade SS304 for interior and SS316 for exterior applications.


Composite Railing

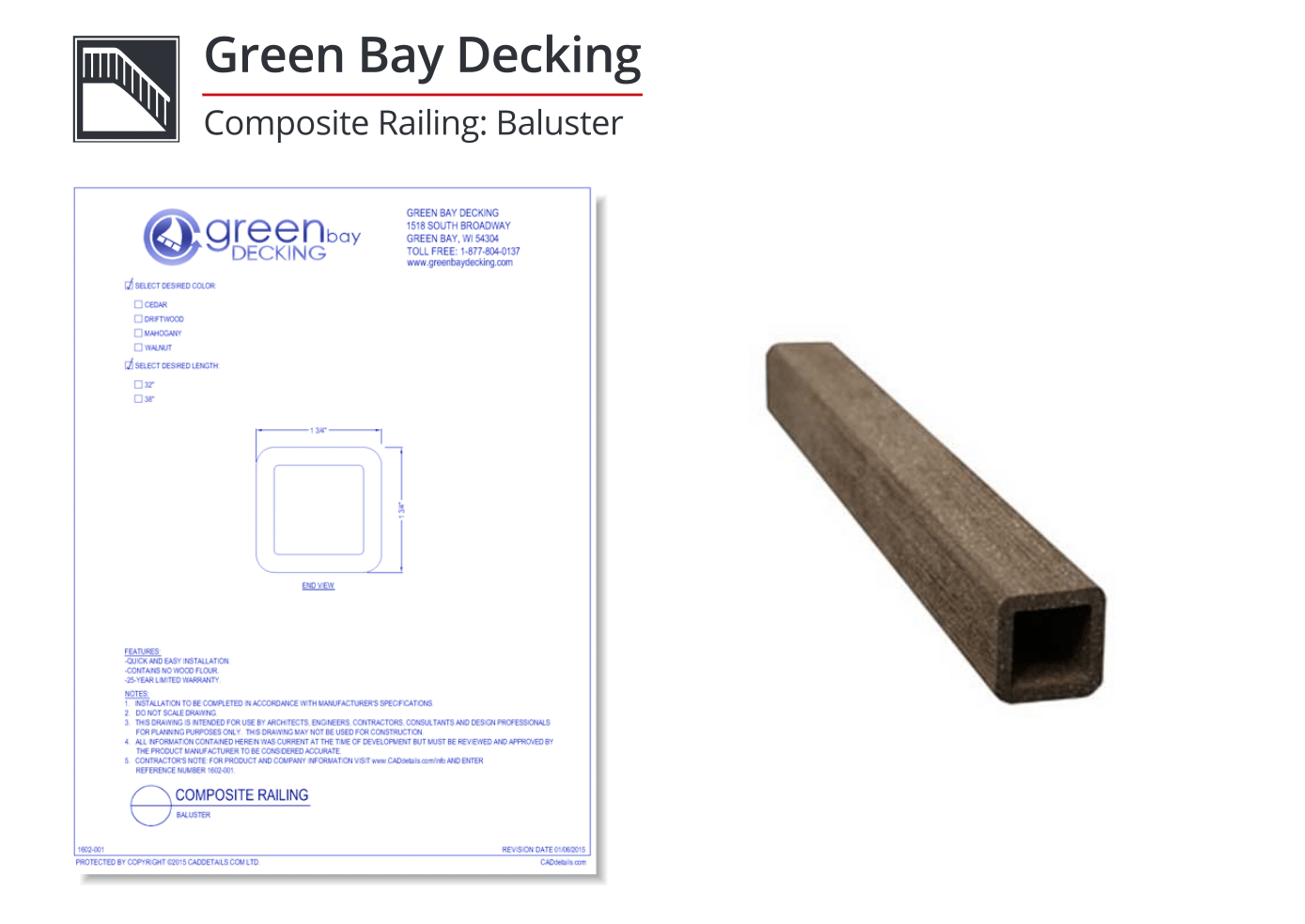

GeoRail is manufactured using the same earthfriendly patented formula as Green Bay Decking’s GeoDeck product line. GeoRail contains no wood flour unlike many of our wood composite competitors. Instead, GeoRail is formulated with Biodac®, rice hulls, high density polyethylene resins, and other high quality ingredients.


Avanti-Systems-USA-Frameless-Glass-Partition-Systems-Solare-Acoustic-Double-Glazed.jpg

GeoRail is manufactured using the same earthfriendly patented formula as Green Bay Decking’s GeoDeck product line. GeoRail contains no wood flour unlike many of our wood composite competitors. Instead, GeoRail is formulated with Biodac®, rice hulls, high density polyethylene resins, and other high quality ingredients.



GeoRail is manufactured using the same earthfriendly patented formula as Green Bay Decking’s GeoDeck product line. GeoRail contains no wood flour unlike many of our wood composite competitors. Instead, GeoRail is formulated with Biodac®, rice hulls, high density polyethylene resins, and other high quality ingredients.


Iron Railing


Iron Made. Fortress™ Strong. Fortress™ Railing Products Fe26 Iron Railing is a pre-welded, easily customized and enhanced version of traditional wrought iron railing that brings unparalleled quality to any patio, deck or balcony. It provides a clean, classic appearance that is versatile for a variety of applications and surfaces. Pre-galvanized steel, zinc phosphate, e-coat and premium powder coating make it the most elegant and durable iron railing system on the market.



Commercial Railing Fortress™ Railing Products is redefining the commercial iron railing category through pre-welded panels that are code tested and safety approved. Traditional commercial projects require onsite welding and fabrication, with Fortress™ Railing Products Commercial your installation time is cut in half.


Vinyl Railing

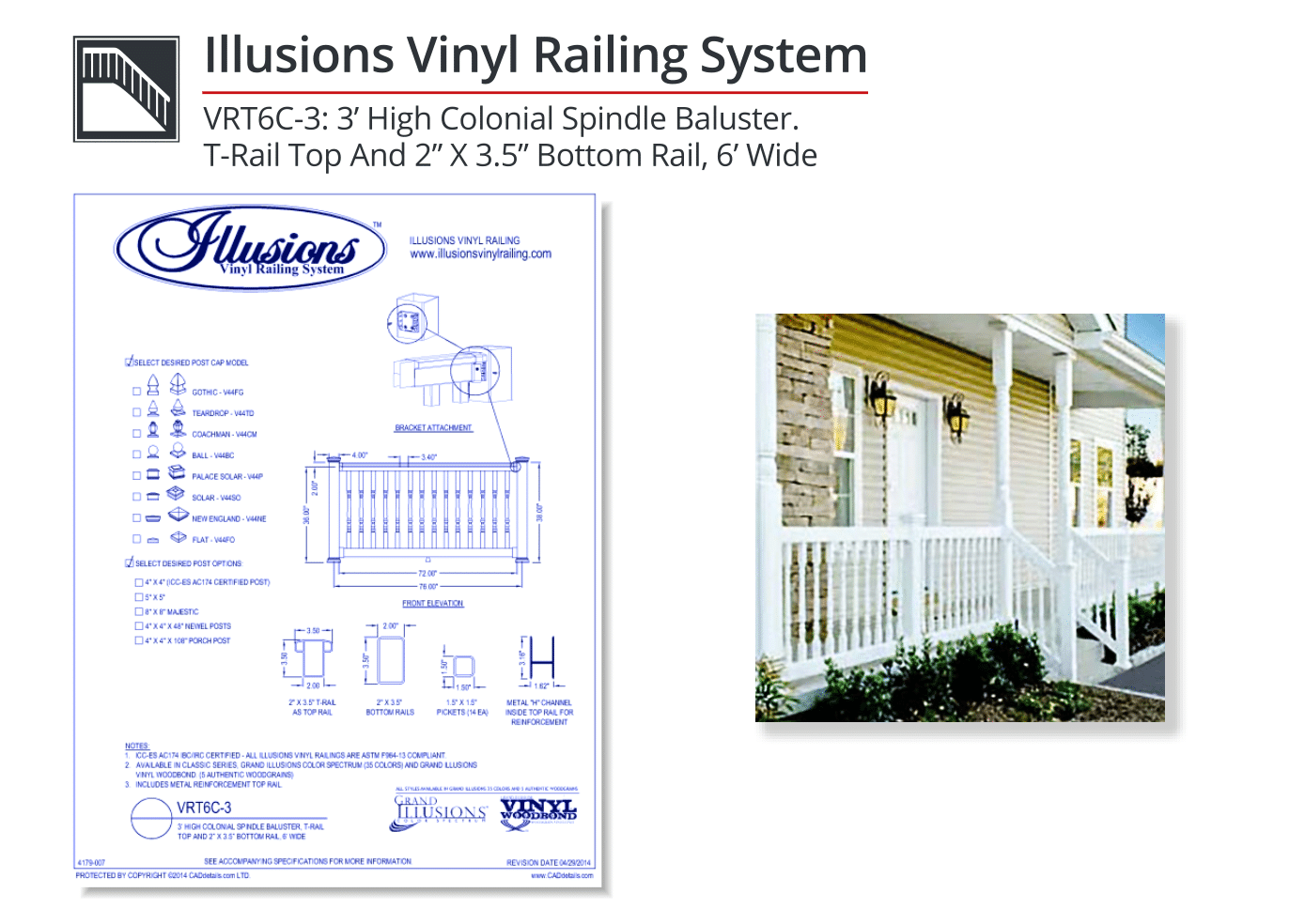

Illusions® Vinyl Railing System™ meets the highest building code standards in the nation. Approved for both commercial and residential applications, it is sure to provide a safe and attractive solution to all of your railing needs.


Door-Systems-Inc-DSI-600-Elevator-Smoke-Containment-System-Jamb-Details-CAD-Drawing.jpg

Illusions® Vinyl Railing System™ meets the highest building code standards in the nation. Approved for both commercial and residential applications, it is sure to provide a safe and attractive solution to all of your railing needs.


Looking for even more design files of railings? Browse CADdetails' CAD Drawings library, or immediately download a large selection of design files by clicking here
