When it comes to creating a garden oasis, many know the immediate elements to include such as  flowers and the pathways. What some fail to consider is the impact of adding garden sculptures, umbrellas, or bird baths. That's why in this article we take a look at 20+ cad drawings that will help with designing a garden.

*Free registration on CADdetails.com is required to obtain the models.


Pavillions

Installing a pavilion allows you to enjoy nature while remaining protected from inclement weather conditions.

 191-001 Apache Shelter

191-001 Apache Shelter

Pre-fabricated, anti-graffiti powder coated tubular steel frame has six sides. Extruded aluminum gutters and channels are sent on standard units.

Structural, interlocking roof panels offer superior strength and fewer supports.


 191-003 Navajo Shelter

191-003 Navajo Shelter

  • Pre-fabricated, anti-graffiti powder coated tubular steel frame.

  • Extruded aluminum gutters sent on standard model & most roof options.

  • Structural, interlocking roof panels for superior strength and less supports (24″ wide “W” design in high strength aluminum or Galvalume


 191-006 Meramec Shelter

191-006 Meramec Shelter

Meramec shelters, which feature a gable roof, are designed and constructed with an all steel structure for minimum maintenance and long life in any climate. Faster footing layout with one internal anchor hole per column.


Trellis

Whether you're looking for an accent piece or a privacy screen, a trellis is a great addition to your garden and outdoor living space.

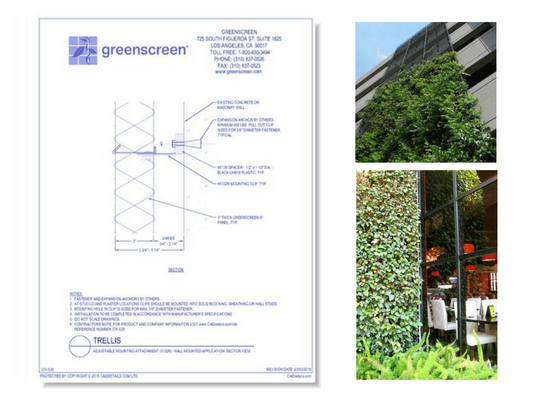

 374-529 Adjustable Mounting Attachment

374-529 Adjustable Mounting Attachment

The greenscreen® trellis system can transform walls into soft textured, vine covered, seasonally changing surfaces commonly referred to as green “facades.” Our system of engineered mounting accessories is designed to hold greenscreen® trellis panels off the building surface, protecting the building’s waterproof membrane from direct plant attachment and transferring the weight of the plants to the screen structure and the wall. Panels can be stacked side to side or top to bottom to cover larger areas.


 374-135 Column Mounted Trellis

374-135 Column Mounted Trellis

Our standard greenscreen® column is created from a 48" width panel and creates a 15-1/2" diameter column that can be attached in the field to a post or column with adjustable mounting details designed to fit your conditions. Larger diameter columns or taller installations are easily created and can be designed for your specific structure.


 374-524 Gusseted Attachment

374-524 Gusseted Attachment

When used freestanding, greenscreen®’s unique wire truss configuration can span between structural members for use as a shade element, privacy screening, security control, or three-dimensional enclosure. Working with a two inch modular grid simplifies the design process and integration into simple or complex installations.


Pergolas

Having a pergola in your backyard extends the time you can spend outside by providing adequate shade.

 5048-002 Butterfly Pergola

5048-002 Butterfly Pergola

The butterfly pergola pavilion can accommodate a 8 place dining table with room to spare. It is ideal for weekend barbecues, family get-togethers, birthday parties, after dinner drinks, or just a regular evening meal. It can be covered with a canopy for protection from the sun.


 5048-003 Regatta Pergola

5048-003 Regatta Pergola

This beautiful  wooden pergola creates an exceptional area for many activities.
 It can be used as a readings nook, for meditation, relaxation, yoga or just an excuse to enjoy the outdoors.


 5048-004 Safari Pergola

5048-004 Safari Pergola

This is one of our last design, named after its tiger eyes. It has no permanent top, but can be covered with canopy, creating a wonderful shadow even in the strongest sunny day. It can accommodate the  whole family and friends. All parts are pre-cut and pre-drilled, ready to install, we ship in a wood crate.


Planters

A planter expands your garden space and provides versatility within the landscape.

 4898-004 Custom Cube Planter

4898-004 Custom Cube Planter

Urban Pot Custom Aluminum planters are beautiful, lightweight and robust. Produced in heavy gauge aluminum according to size and utility, our planters are ideal for street level high foot traffic areas or other commercial applications, as well as for verandas, decks and interior spaces where design, durability, and custom dimensions are required.


 4898-007 Custom Cyliinder Planter

4898-007 Custom Cyliinder Planter

Urban Pot Custom Aluminum planters are beautiful, lightweight and robust. Produced in heavy gauge aluminum according to size and utility, our planters are ideal for street level high foot traffic areas or other commercial applications, as well as for verandas, decks and interior spaces where design, durability, and custom dimensions are required.


 4894-006 Custom Tower Planter

4894-006 Custom Tower Planter

Urban Pot Custom Aluminum planters are beautiful, lightweight and robust. Produced in heavy gauge aluminum according to size and utility, our planters are ideal for street level high foot traffic areas or other commercial applications, as well as for verandas, decks and interior spaces where design, durability, and custom dimensions are required.


Garden Ornaments

Getting creative with garden ornaments is a great way to create a truly unique space. Whether you're adding spheres, benches, or scultptures, your personality will show with each descision.

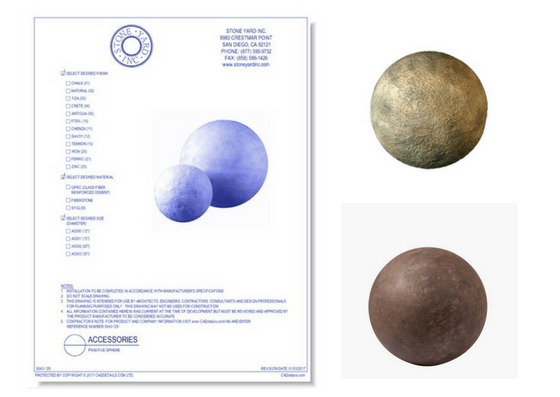

 5043-129 Primitive Sphere

5043-129 Primitive Sphere

Complete the primal look of your rustic space with our Primitive outdoor sphere. This craggy GFRC sphere accent adds a touch of imaginative whimsy. It creates a focal point when nestled among flowerbeds and plant-filled containers, leading viewers to guess at the story behind this interesting piece of archaic rock. Its perfectly round modern shape is offset by a subtly distressed surface treatment, giving it textural interest on top of pleasing geometric form.


 5043-134 Fungo Sculpture

5043-134 Fungo Sculpture

 Add a splash of nature-inspired whimsy to your décor with these delightful cast stone mushrooms. Available in three sizes, the Fungo make an eye catching set. Mix and match large, medium, and small to create your own small or large mushroom sculpture garden on a tabletop, pedestal, console, or low garden wall. They are also right at home on the patio or garden floor, surrounded by live greenery.


 5043-119 St Denis Corbel

5043-119 St Denis Corbel

Cast from an 18th century corbel from the French Basilique de Saint-Denis, the St. Denis architectural corbel draws upon ornate Gothic style to deliver both a functional and decorative piece. As seen in the thirteenth century cathedral, Gothic style employs decorative features on structural elements, with utmost attention to sculptural beauty. While these GFRC corbels can be used like traditional concrete hall table bases we- and the early European artisans- believe that it can still have breathtaking visual appeal while serving a function.


Garden Umbrellas

If you enjoy hosting parties but do not want a permanent shade structure on your property, then choosing a garden umbrella is  a great way to go.

 5129-002 Extra Large Patio Umbrella

5129-002 Extra Large Patio Umbrella

These GIANTS of the world of umbrellas are not only striking in their dimensions, but offer high wind stability, durability that last way passed their warranty. Ranging from 450 to 850 square feet, they are large enough to cover and entire patio and provide a shady oasis from the elements. Used mainly in commercial environment, these umbrellas are very cost effective.


 5129-007 Cantilever Square Patio Umbrella

5129-007 Cantilever Square Patio Umbrella

Called Cantilever, Offset or SidePost, the Uhlmann cantilever umbrellas create a one-of-a-kind outdoor oasis in any quality setting. Our SidePosts are sleek and elegant, strong and functional, - their elegant profile is eye-catching open or closed.


 5129-001b Classic Large Outdoor Patio Umbrella

5129-001b Classic Large Outdoor Patio Umbrella

The Classic Type T Uhlmann Umbrellas are available in round, square and rectangular shapes in 41 sizes. Our Classic Umbrellas are ideal for small to medium shade solutions from 4 to 27 square meters (43 to 280 square feet.) Custom sizes are also available on request.


Bird Bath

Having a bird bath in your backyard attracts birds which then help with garden pest control. They are also known to attract wasps which are good for protection your garden crops but may be undesirable if near guests. So when installing a bird bath, consider the location carefully.

 2683-117 Otter Bird Bath

2683-117 Otter Bird Bath

The original was sculpted by Shayne Haysom, well known in South Africa and the Unites States for her animal pieces. The otter awaits the turtle's submergence into the bath.


 2683-138 Alligator Bird Bath

2683-138 Alligator Bird Bath

Otters, ducks, and especially our alligators mark this distinctive collection of bird baths. Originally carved by artisans commissioned to build St. John's church in Lattingtown, New York.


 2683-192 Ladew Birdbath

2683-192 Ladew Birdbath

Originally owned by Harvey Ladew of Ladew Gardens in Monkton, Maryland, the splendor of this birdbath will have teems of birds singing as they bathe in the flower-shaped pool. Rebar is pre-installed into the base for insertion into the earth for full upright stability.
