20+ CAD Drawings to Create Your Ultimate Outdoor Living Space

20+ CAD Drawings to Create Your Ultimate Outdoor Living Space

Once summer arrives, we all want to take advantage of the weather and stay outside as long as possible. With outdoor heaters, proper lighting, and our 20+ CAD Drawings, you'll be able to design an outdoor space you'll enjoy all summer long.

*Free registration on CADdetails.com is required to obtain the models.


Outdoor Heaters



 5029-004 evenGLO Portable Series

5029-004 evenGLO Portable Series

The evenGLO patented design and technology is far superior than it’s competitors. The Foodservice Technology Center in California tested the evenGLO Series GA and it’s top competitors but it was no match.


 5029-016 evenTUBE

5029-016 evenTUBE

The evenTUBE Collection delivers long, even heat to outdoor living spaces of all shapes and sizes while maintaining a sleek, enhanced appearance. Their 0% impingement allows for a 2” Top Clearance with the most radiant output of all outdoor tube heaters!

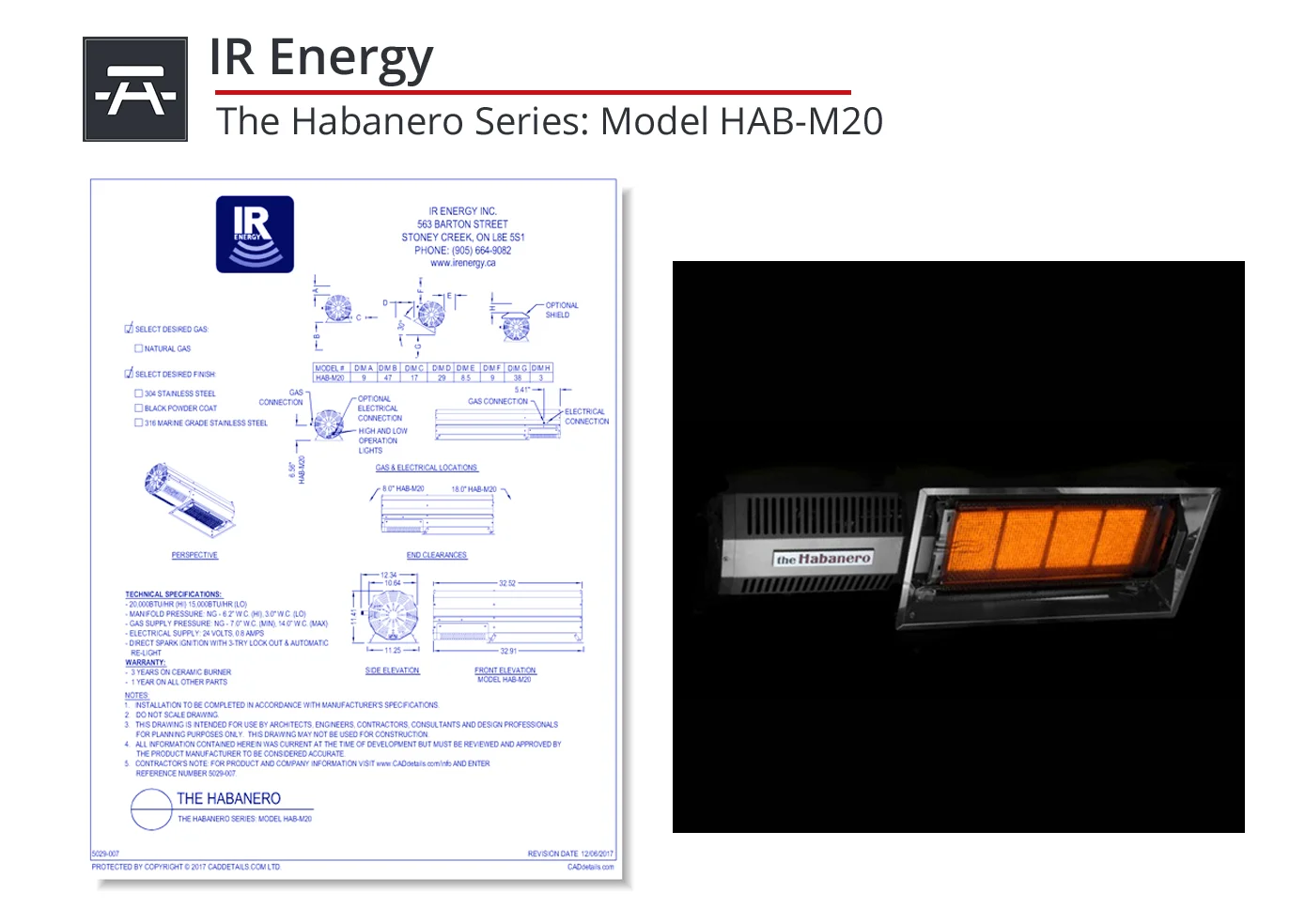

 5029-007 Habanero Series

5029-007 Habanero Series

Guarantees optimum combustion for every size of Habanero while saving you fuel costs!


Water Features

 2642-019 Mini Oak Leaf Emitter

2642-019 Mini Oak Leaf Emitter

The splendid, classically ornate Mini Oak Leaf emitter celebrates the style of the Gothic Revival Period. Handcrafted and custom made in solid cast bronze, the Mini Oak Leaf’s lobed cluster design adds a touch of architectural glamour to your water art display. This intricate emitter is sophisticated enough to serve as a breathtaking focal point for ponds, pools or spas and understated enough to enrich a wall fountain, entrance wall fountain, lobby wall fountain or garden wall fountain. Also available in a larger size. Price includes our Dura 10 Year Coating.

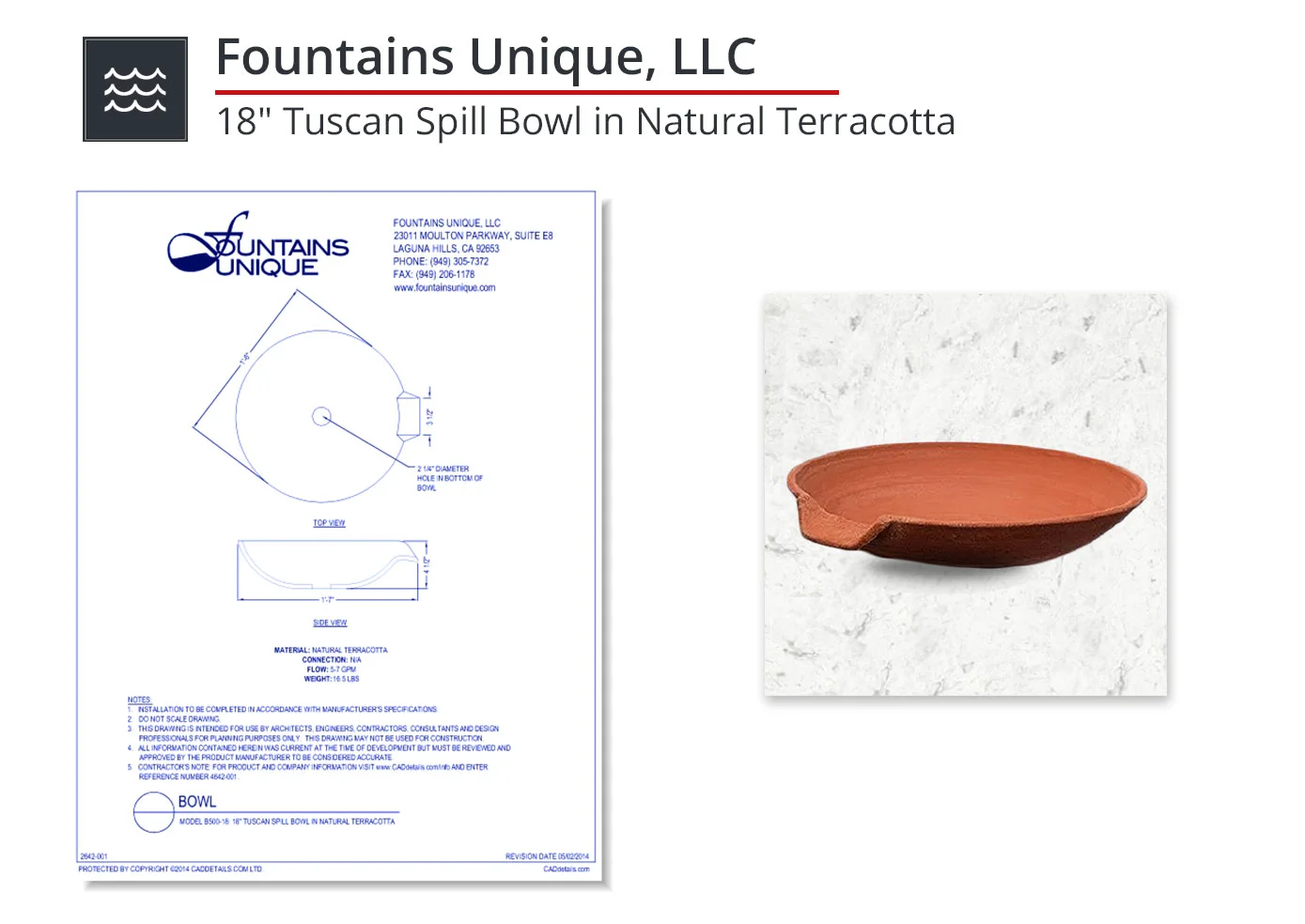

 2642-001 Tuscan Spill Bowl

2642-001 Tuscan Spill Bowl

The 18-inch Tuscan spill bowl is crafted from natural terracotta. The Tuscan spill bowl is designed with a single, sleek wide scupper that creates a soft, soothing spill and sound. The bowl creates an excellent spill effect into a pool, spa or fountain, either as a standalone spill bowl atop a column or as a waterfall effect with multiple bowls in a cascading configuration. Please note the stated size has a variance of plus or minus 1 to 2 inches due to shrinkage in the clay during the firing process. The Tuscan spill bowl is also available in a larger 24-inch version.


 2642-040 Bordeaux Emitter

2642-040 Bordeaux Emitter

Our Bordeaux emitter is a mid-sized 100% bronze emitter flush with a lush and traditional floral motif. The Bordeaux in the Oil Rubbed Bronze finish has the appearance of cast iron worn over centuries, but is actually made from non-rusting bronze. Comfortable as a solitary water feature in any Architectural and/or Outdoor Living, pool and spa and fountain designs, or repeated in a linear pattern, the Bordeaux emitter is versatile and warm. The back plate’s thickness adds rich dimension to the emitter’s overall nuance. Available in either 3/4? or 1/2? NPT connection and in a variety of finishes. Price includes our Dura Coating.


Fire Features

 5059-023 Prefabricated Fire Pits

5059-023 Prefabricated Fire Pits

Prefabricated fire pit kits are shipped as complete units. Perforated aluminum exterior provides a solid foundation to be covered with brick, stone, tile, or stucco. If you are building your own masonry foundation, we can provide the metal insert to slip into the fire pit & connect to your gas line.


 5059-027 The Torch

5059-027 The Torch

The Torch water & fire bowl has a 360° seamless lip that carries the water over the bowl in a beautiful sheet. Available in round or square, manual or automatic, and a variety of sizes.


 5059-019 Round Fire Pot

5059-019 Round Fire Pot

Our fire pots come in a variety of shapes and sizes, and can be manually lit or remotely controlled. The fire pot kits come complete with everyting you need, or can be ordered independently (without the kit)..


Planters

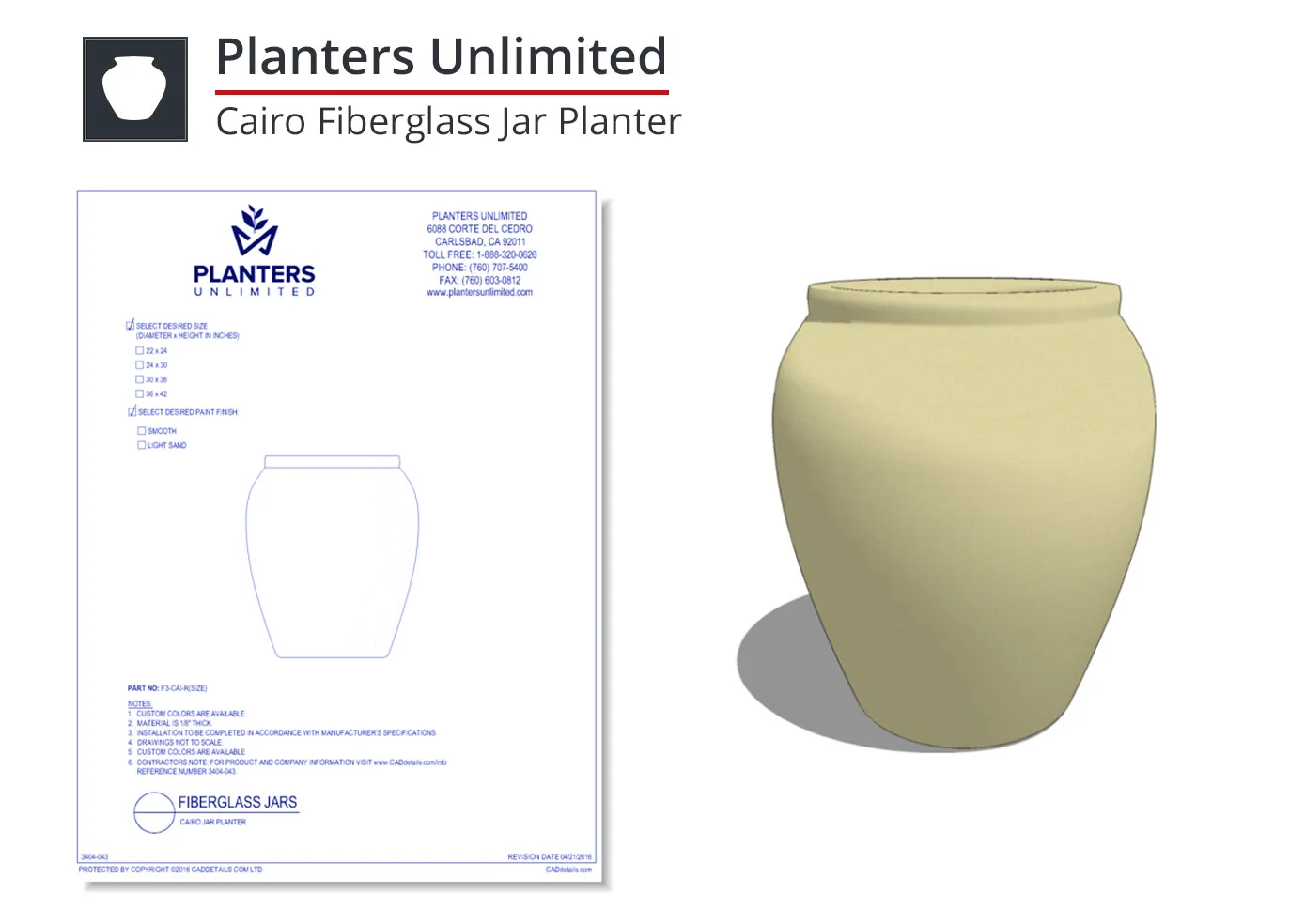

 3404-043 Cairo Fiberglass Jar Planter

3404-043 Cairo Fiberglass Jar Planter

The Cairo Vase Planter is a full-bodied commercial fiberglass planter with a classically tapered silhouette. The blueprint of these large commercial planters is derived from a design used since ancient Egyptian times that still finds modern relevance.


 3404-011 Tapered Urban Chic Composite Rectangular Planter

3404-011 Tapered Urban Chic Composite Rectangular Planter

If a modern planter or a contemporary planter style fits your site or home - these commercial grade outdoor planters could be ideal. They are some of our most popular commercial planters and are made from construction grade Premier Composite PVC. This solid wall Cellular PVC material allows us to make outdoor planters that are indistinguishable from wood, yet they will never rot, warp, degrade or corrode - they are nearly maintenance free.


 3404-002 Tapered Urban Chic Composite Square Planter

3404-002 Tapered Urban Chic Composite Square Planter

Get commercial container gardening with current appeal using the Tapered Urban Chic Composite Square Planter. This tapered square planter made from composite PVC is impervious to water, making it a great match to high-moisture applications such as lakefront property, waterparks, or a commercial resort patio.


Patio Furniture

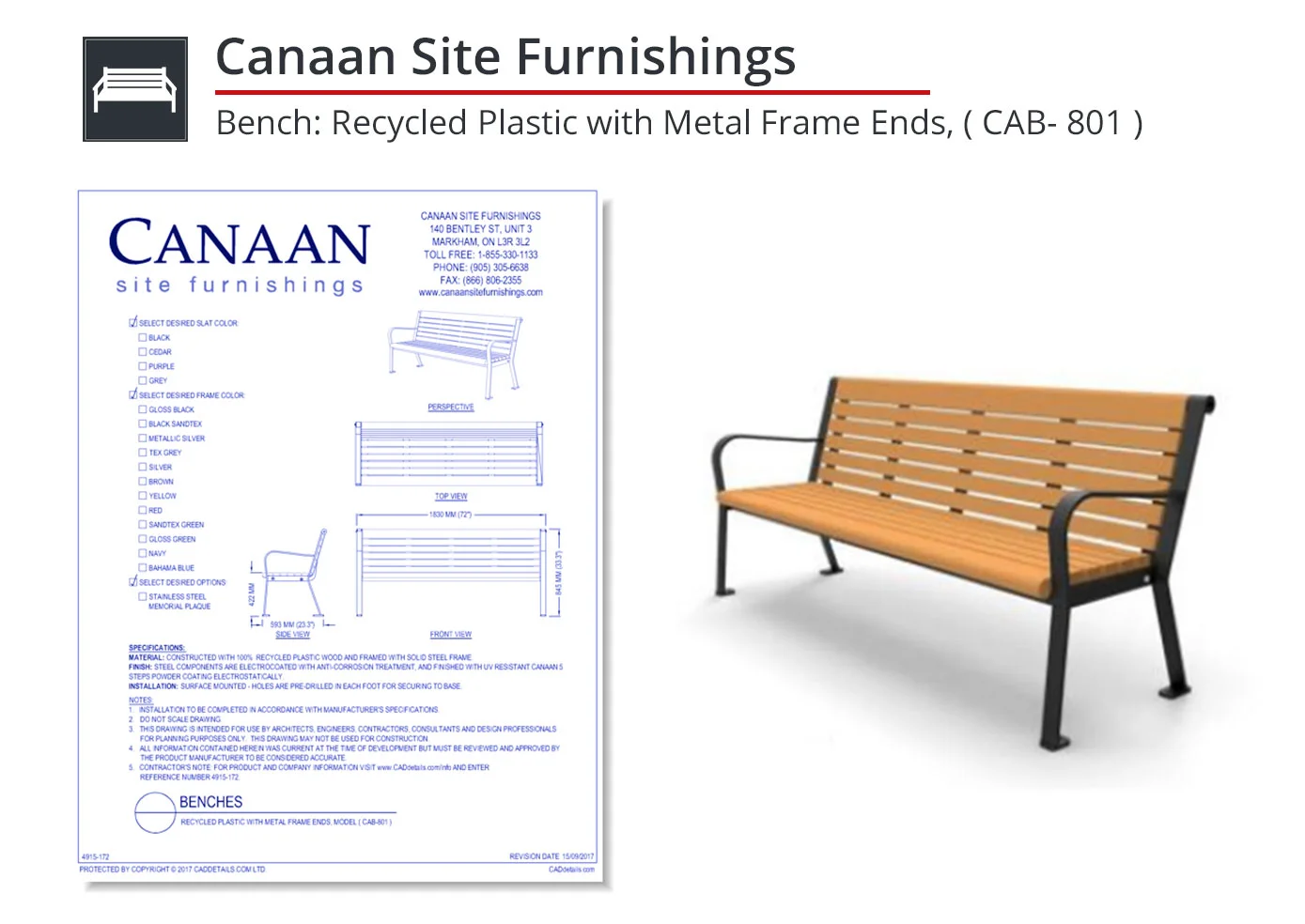

 4915-172 Recycled Plastic Bench

4915-172 Recycled Plastic Bench

CAB-801 is a bench that's perfect for playgrounds. Low maintenance and environmentally friendly.


 4915-167 Steel Bench

4915-167 Steel Bench

 CAL-858 is an appealing metal bench with standard armrest for full-body support.

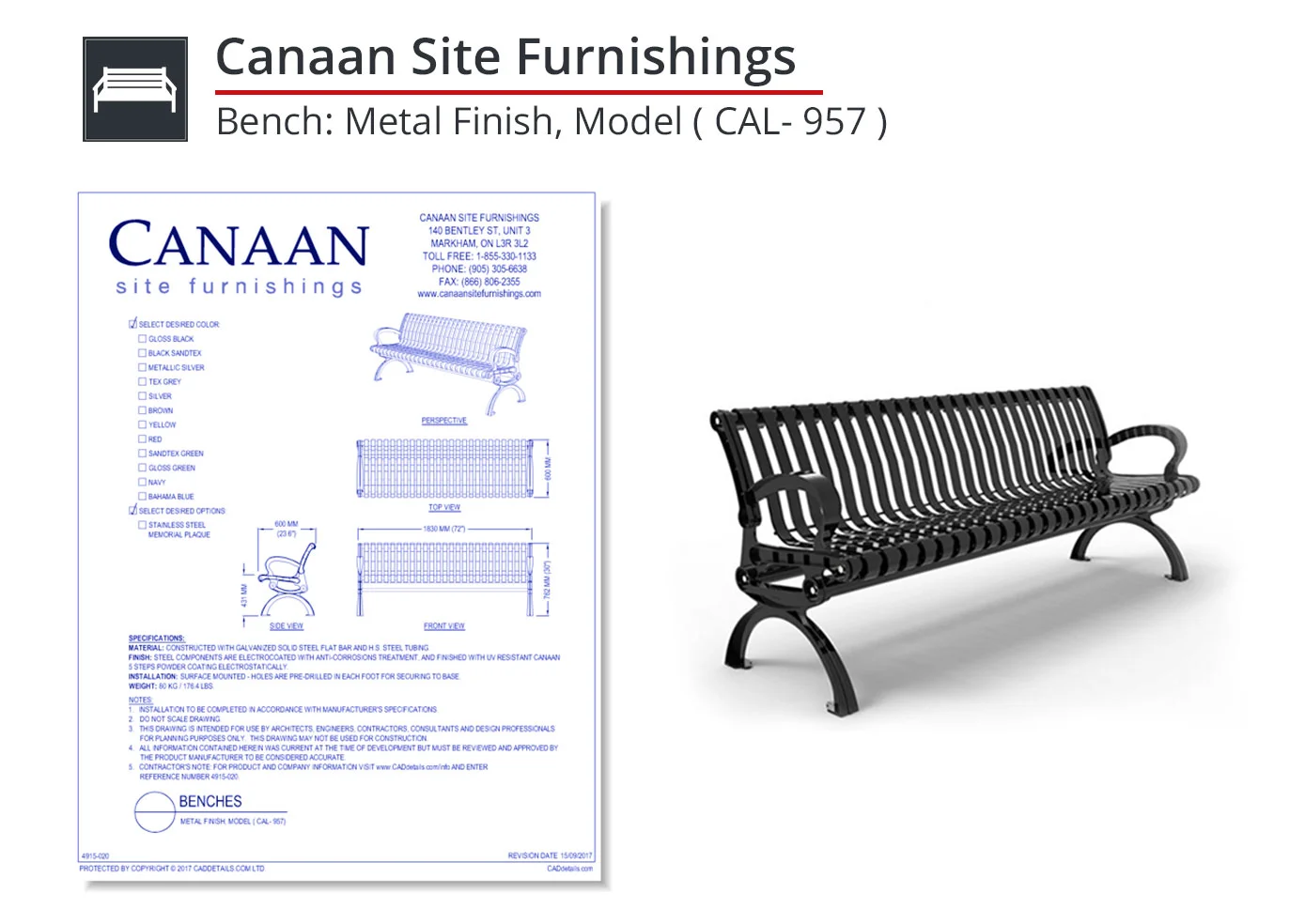

 4915-020 Metal Finish Bench

4915-020 Metal Finish Bench

CAL-957 is a sophisticated metal bench with a vintage look and rolled seat edges for comfort.


Pergola

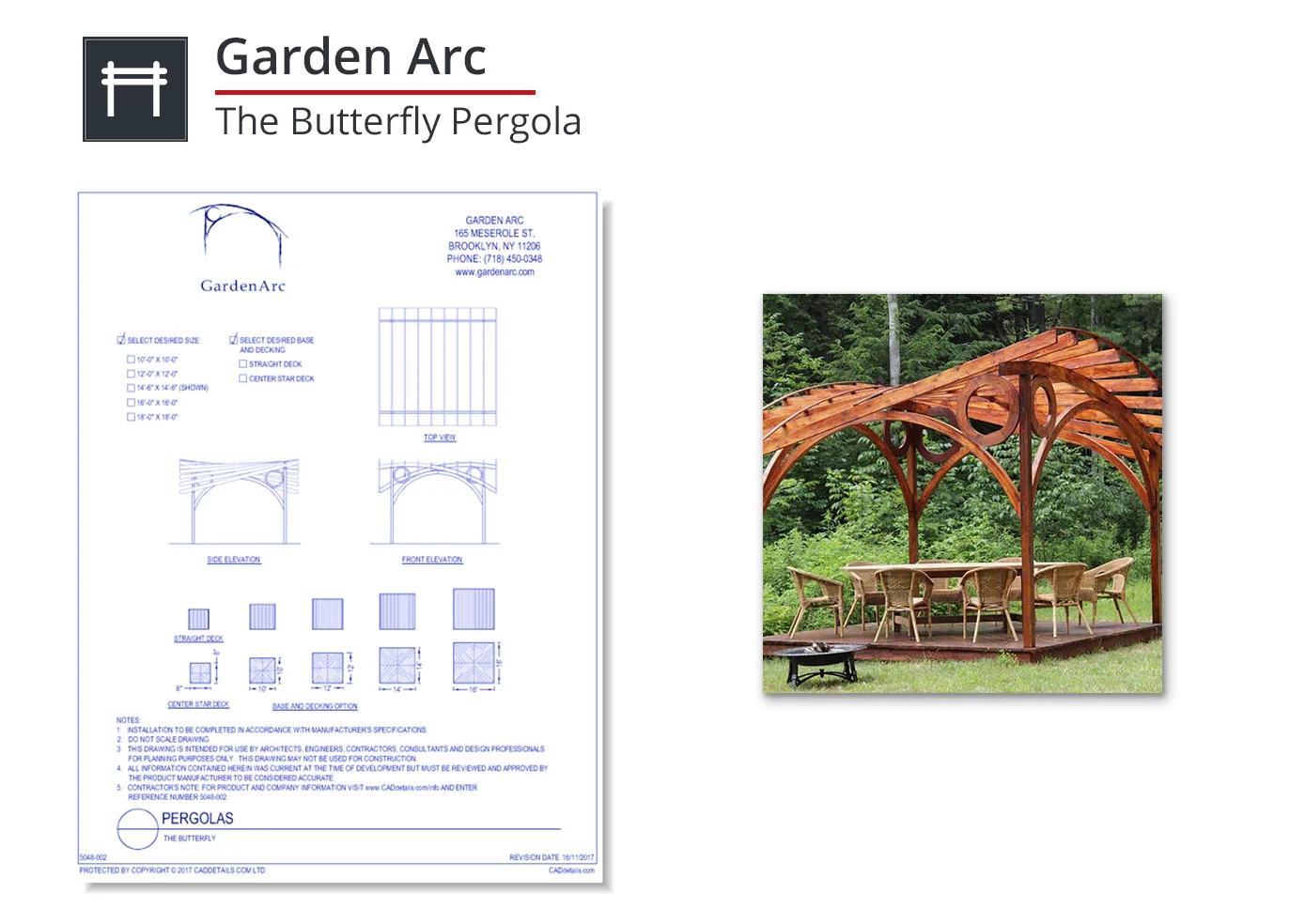

 5048-002 Butterfly Pergola

5048-002 Butterfly Pergola

The Butterfly Pergola Pavilion can accommodate a 8 place dining table with room to spare. It is ideal for weekend barbecues, family get-togethers, birthday parties, after dinner drinks, or just a regular evening meal. It can be used as a reading nook, for meditation, relaxation, yoga or just an excuse to enjoy the outdoors any time of year.

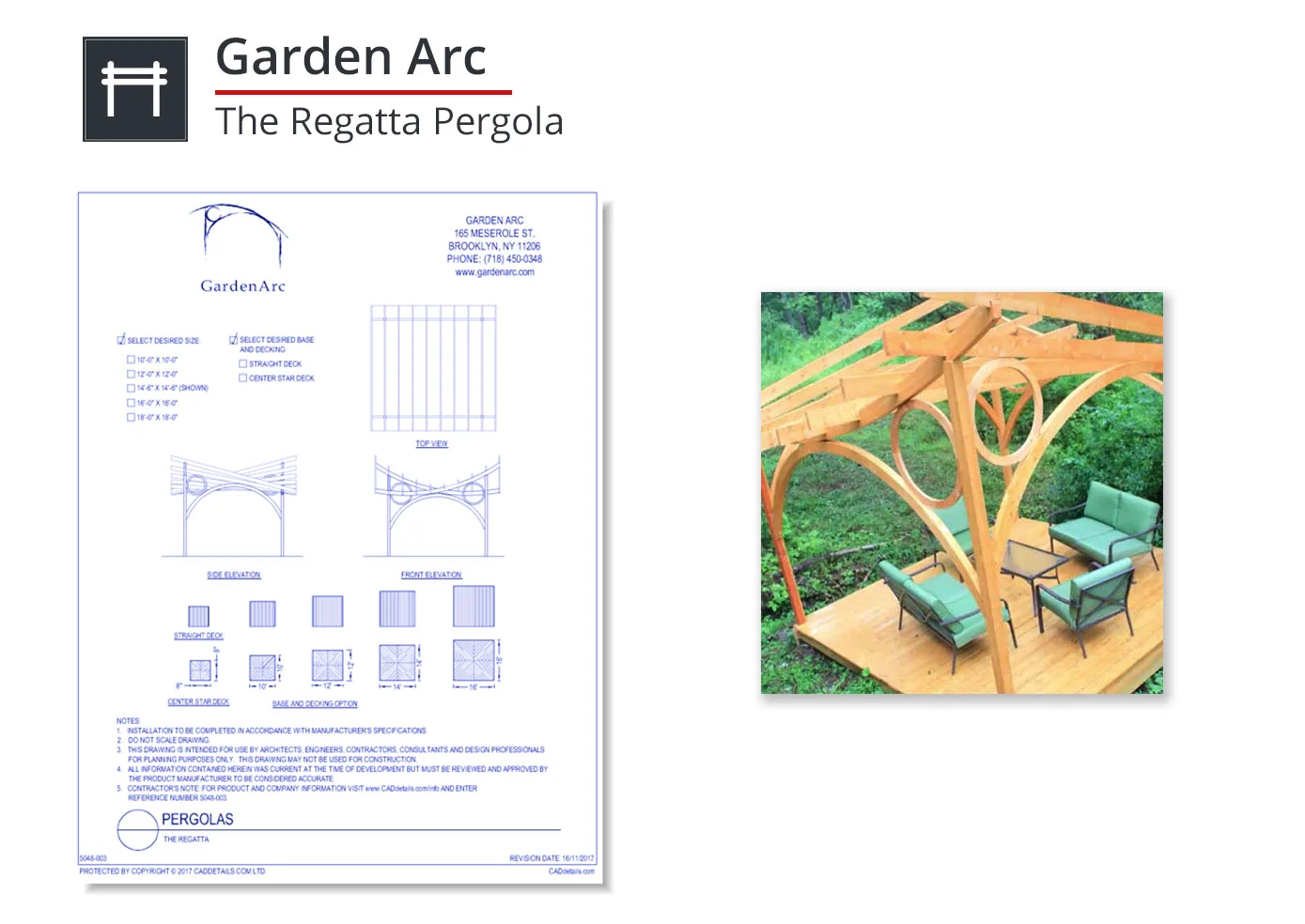

 5048-003 Regatta Pergola

5048-003 Regatta Pergola

The Regatta Pergola is 14.5 feet x 14.5 feet Pergola, with a 12'x12' base and canopy.


 5048-004 Safari Pergola

5048-004 Safari Pergola

Safari Pergola 14.5 feet x 14.5 feet with a 12'x12' base.


Lighting

 5055-027 CP0401 Light

5055-027 CP0401 Light

The CP0401 has an IP66 rating which means that the optical system of this product is protected against the ingress of dust and high pressure water jets from any direction. It meets light pollution requirements and gives users wireless control of the device.


 5055-006 LUUMA Light

5055-006 LUUMA Light

The Luuma series offers an impressive family of luminaires for your distinct designs and any type of project.


 5055-010 RL Series Light

5055-010 RL Series Light

Lumca’s latest RL series is synonymous with ultra modern lighting. Blending clean lines with an elegance that stands the test of time, the RL series is the perfect solution for a truly distinctive look.
