Whether you're lounging by a pool, sitting near a fire pit, or cooking at a BBQ, no backyard is complete without an outstanding patio design. That's why we've gathered these 30+ CAD Drawings for designing a patio.

*Free registration on CADdetails.com is required to obtain the models.


Barstools


Outdoor/Indoor Barstool

Clear Lacquered Brushed Aluminum finish
Frame: Square Tube Aluminum
Seat/Back: Aluminum



Outdoor/Indoor Stacking Barstool

E-coated powder coat finish
Made in Italy
Frame: Tubular Steel
Seat/Back: Steel Slats
Stackability: 8
Cushion Availability: Yes



Outdoor/Indoor Barstool

Clear Lacquered Brushed Aluminum finish
Frame: Square Tube Aluminum
Seat/Back: Aluminum


Patio Chairs


This Hanna chair option is 100% ALUMINUM and comes in a large square perforated back and seat. These chairs are stackable and come in our AAMA 2604-05 compliant Powder-Coating



This Hanna chair option is 100% ALUMINUM and comes in a large square perforated back and seat. These chairs are stackable and come in our AAMA 2604-05 compliant Powder-Coating



Refined charm is the key to the Winchester design. Our Winchester Arm Chair was design to be used with any of our Winchester dining tables. The chair is 100% aluminum and is coated in our AAMA 2604-05 compliant powder-coating. It can be ordered in our FAUX-WOOD or HORIZONTAL SLAT patterns.


Patio Benches

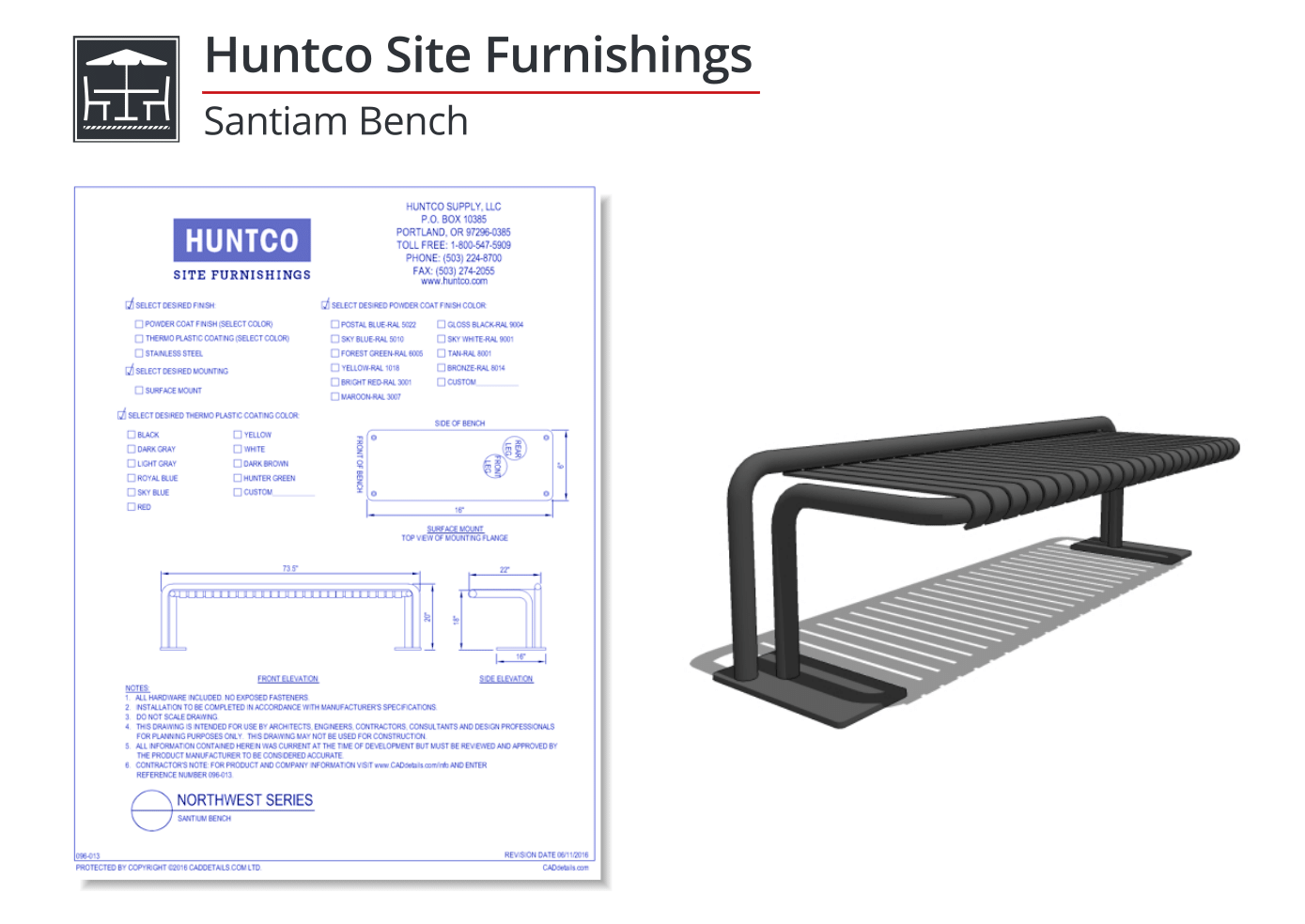

This contemporary bench is quite distinctive in its appearance but versatile enough to complement many modern architectural sites. The Santiam has an exciting sense of balance and proportion. 73.5" long, 22" deep, 20" high. Custom lengths are available.



The gracefully curved back of this bench from our Northwest Series gives it the sophisticated appearance of a bygone era. But it's strong! Made of schedule 40 all steel construction, using rectangular tubes and flat bars, the Nehalem can take extreme weather and usage.



Each unit is constructed of .125" sheet metal, .25"x 3" mild steel flat bar and 1.5"x.125" mild steel tube.


Patio Sofas

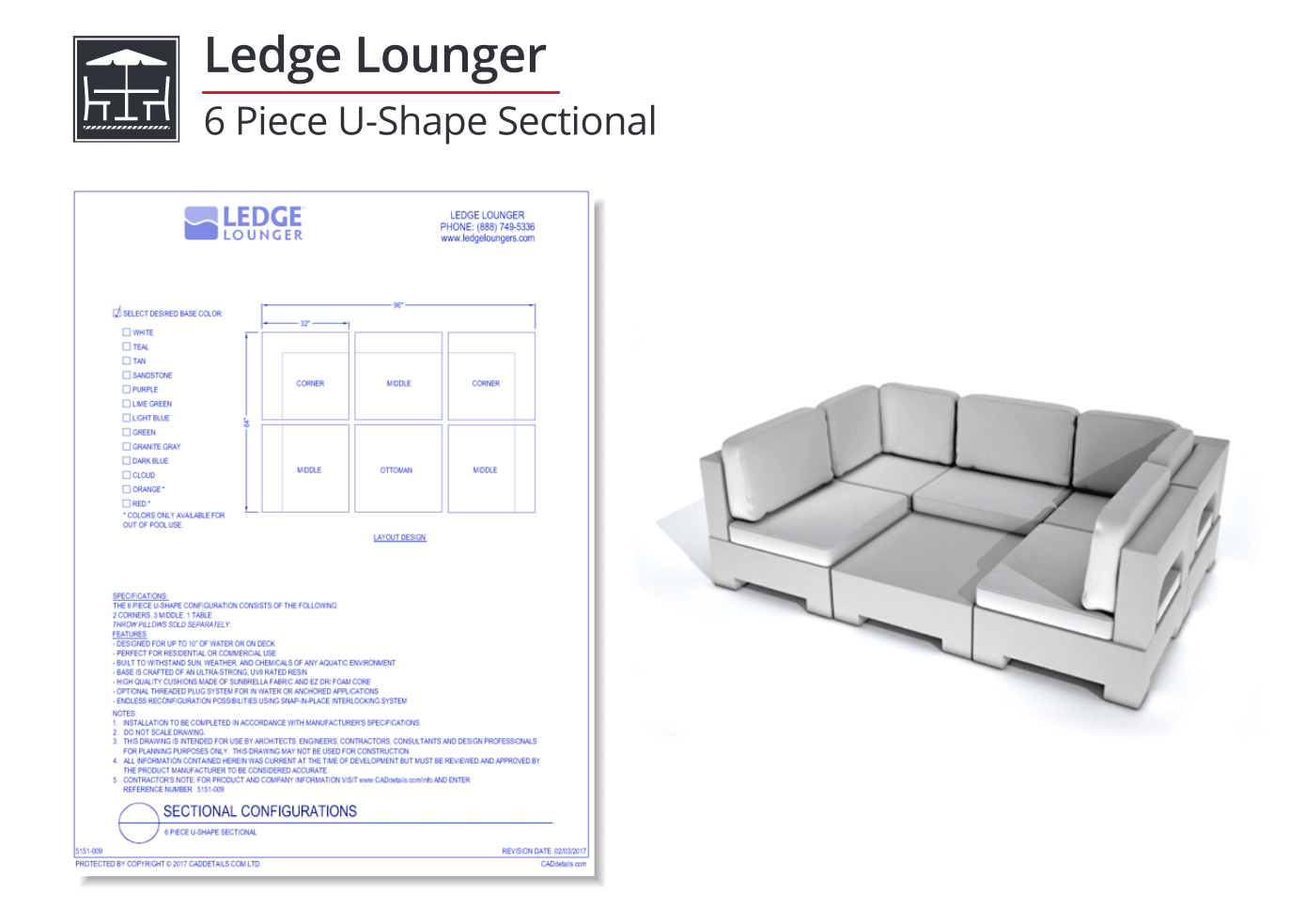

Our modular Sectional is unique, versatile, and completely customizable. Create endless configurations using Middles, Corners, Ottomans, and Tables, then arrange and rearrange as often as you’d like. Pieces lock together and cushions stay in place using our unique snap-in-place interlocking system. The sectional is designed for use in water up to 10 inches deep, and also works great on the deck, patio, or any outdoor environment.



Our modular Sectional is unique, versatile, and completely customizable. Create endless configurations using Middles, Corners, Ottomans, and Tables, then arrange and rearrange as often as you’d like. Pieces lock together and cushions stay in place using our unique snap-in-place interlocking system. The sectional is designed for use in water up to 10 inches deep, and also works great on the deck, patio, or any outdoor environment.



The 8 Piece L-Shape arrangement consists of the following:

  • 2 Corners

  • 3 Middles

  • 1 Ottoman

  • 2 Tables


Patio Tables


This Luxembourg Small Low Table doubles as a footrest for the Luxembourg Low Armchair and a garden bench. It is made of an aluminum tubular frame. Its size is 34" x 17"


Avanti-Systems-USA-Frameless-Glass-Partition-Systems-Solare-Acoustic-Double-Glazed.jpg

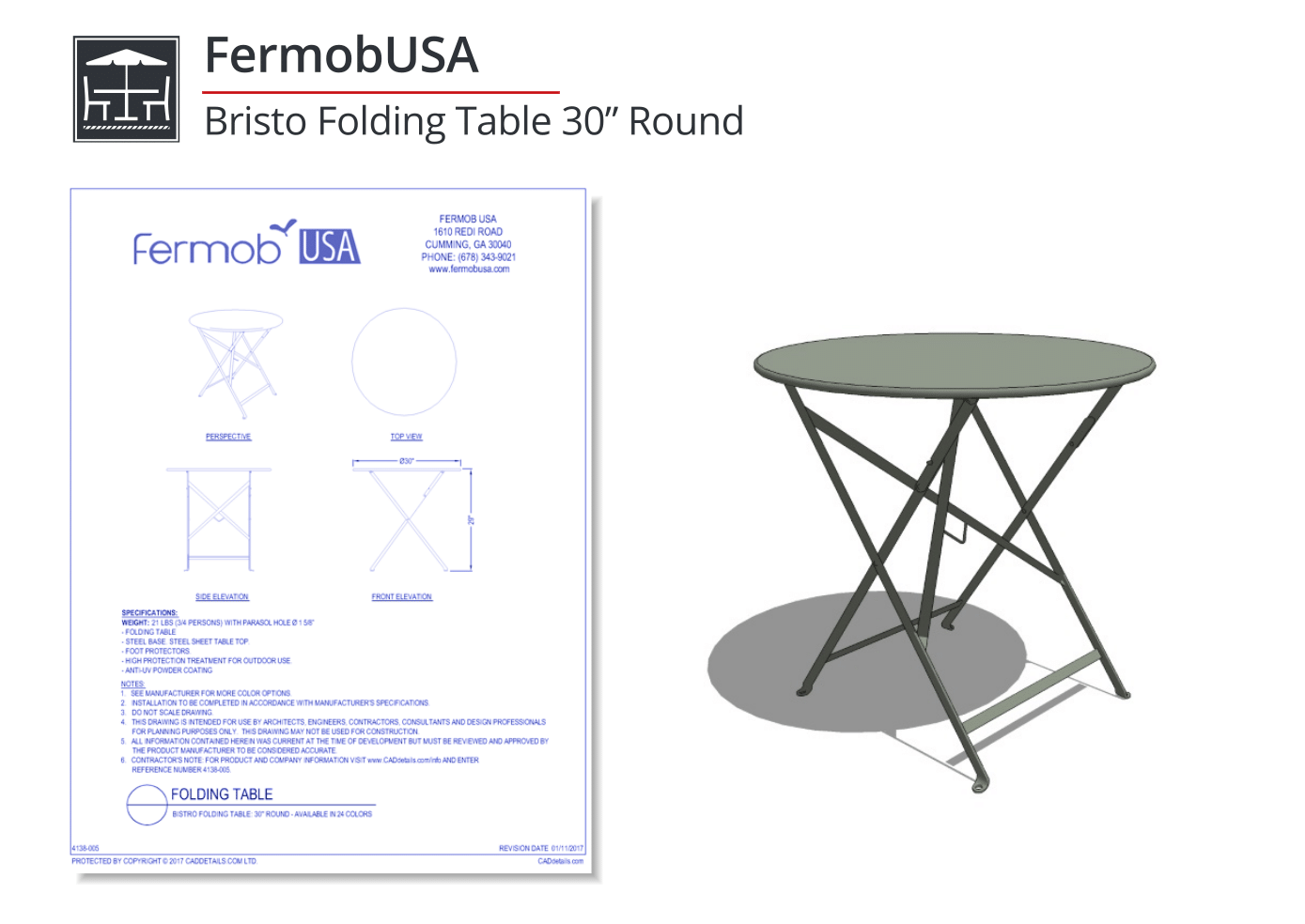

The round 30" folding Bistro table is made of lacquered steel and includes a parasol hole. Seats two for dinner and four for drinks.

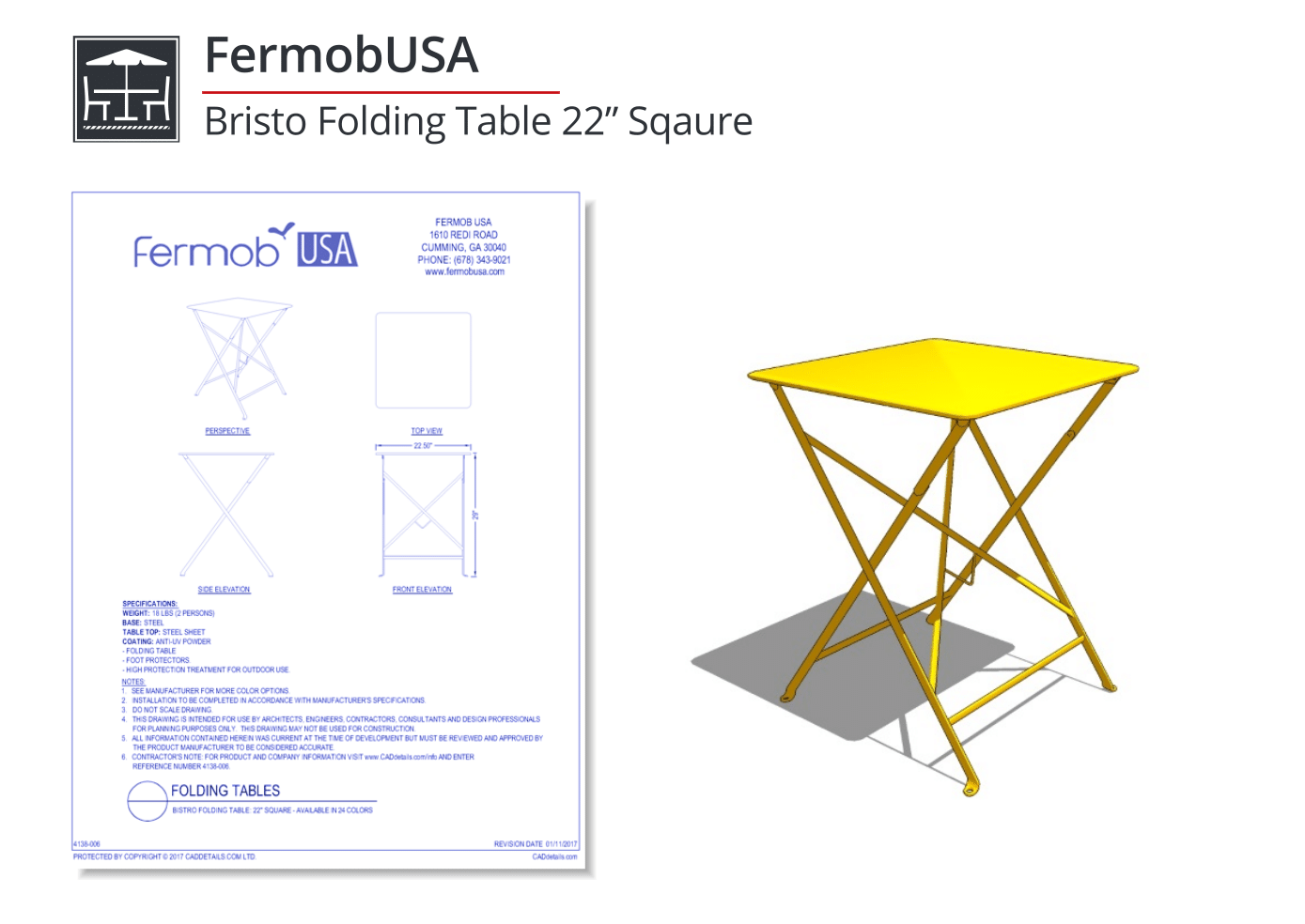

This little 22 x 22" square folding Bistro table is made of lacquered steel. Seats two people for drinks.


Umbrellas


The Sunset range is our line of center-post, retractable umbrella structures. These umbrellas feature an all-aluminum frame that is perfect for marine environments. The umbrella column is a sturdy 3.5 inch aluminum extrusion that has internal channels to allow the umbrella to be wired for heating or misting. Sunset umbrellas are designed to withstand strong winds, but can be closed in approximately 30 seconds by using our removable crank handle located 30 inches above the baseplate.



Our Dual Column Umbrella is the perfect structure to shade park benches or picnic tables. This two-column umbrella is available in the following sizes with 8' or 10' eave heights: 16’ x 12’, 18’ x 12’, 20’ x 10’, 20’ x 12’, 20’ x 14’, and 24’ x 14’. Our Dual Column Umbrellas come with or without our Glide Elbow™ mechanism, which makes it faster to remove the cover in bad weather. These umbrellas are available in pre-engineered standards with wind ratings of up to 105 mph for coastal regions.



Square umbrellas provide great shaded space and are ideal for hotels, restaurants, parks, and other outdoor spaces. From the classic Horizon Umbrella to the unique Hypar Umbrella, Superior Shade has a variety of square shade umbrellas to choose from. Browse our products or contact us to get your project started!


Outdoor Kitchens


Brown Jordan Outdoor Kitchens manufactures highly engineered stainless and tubular steel cabinets and carts for the hospitality industry worldwide. Available in stationary or mobile configurations for resorts, branded residential complexes, casinos, hotels, country clubs, restaurants and other hospitality venues, these innovative units are designed for durability, beauty and functionality.



Brown Jordan Outdoor Kitchens manufactures highly engineered stainless and tubular steel cabinets and carts for the hospitality industry worldwide. Available in stationary or mobile configurations for resorts, branded residential complexes, casinos, hotels, country clubs, restaurants and other hospitality venues, these innovative units are designed for durability, beauty and functionality.


Heaters


With a variety of sizes to choose from, it is important to select the proper W-Series single element heater in order to provide the coverage and intensity necessary for optimum comfort. Some home or business owners may need to use multiple heaters, in order to completely cover larger areas. W-Series heaters range from 1,500 to 4,000 watts.

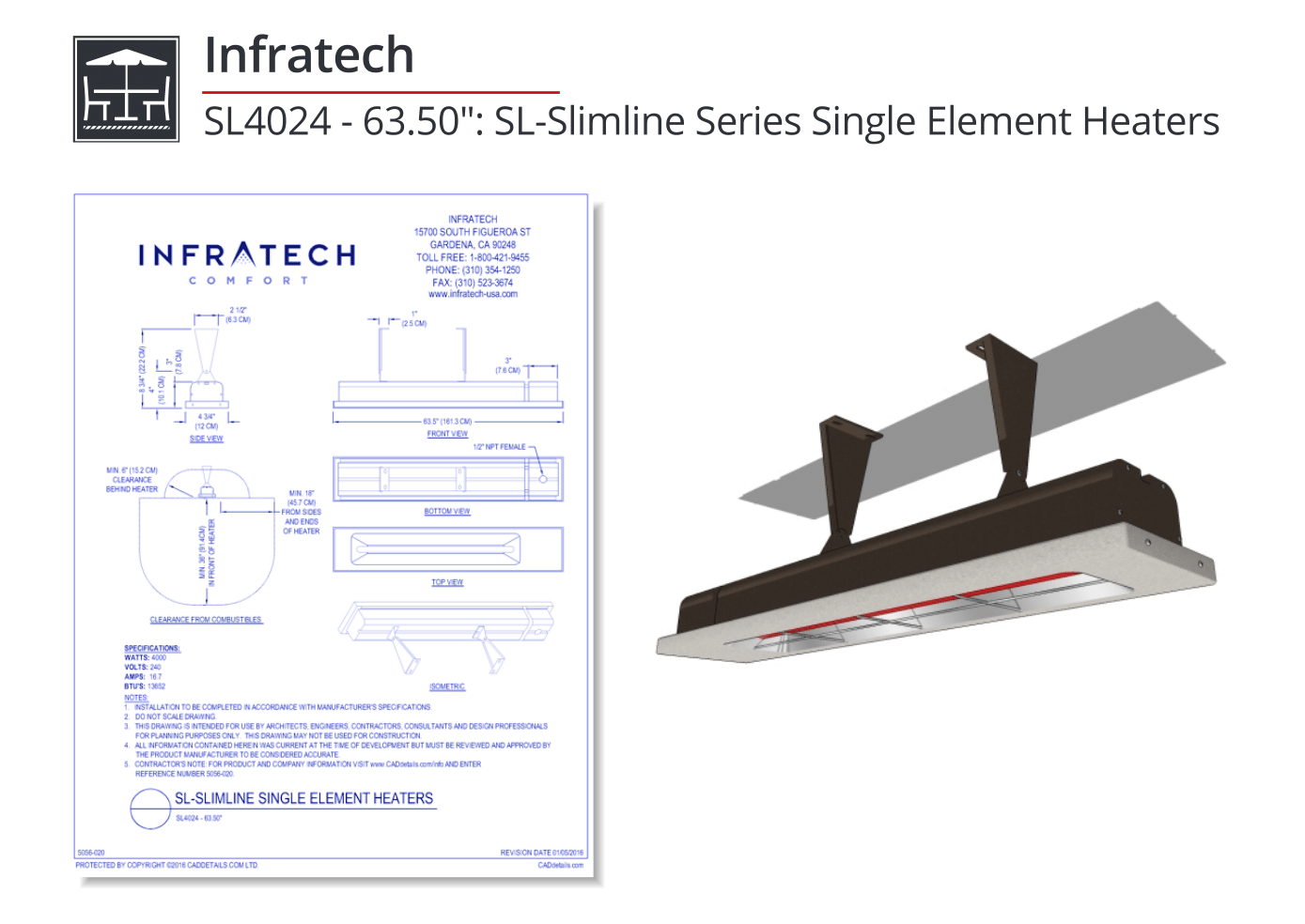

With crisp, modern styling, an anodized aluminum housing and narrow profiles, Slimline heaters virtually disappear into the surrounding décor, and are capable of withstanding years of outdoor use. Slimline heaters are ideal for surface mount applications up to eleven feet, and feature a T-slot for flexible mounting options using the included brackets. Available in 1,600, 2,400, 3,000 and 4,000-watt models.

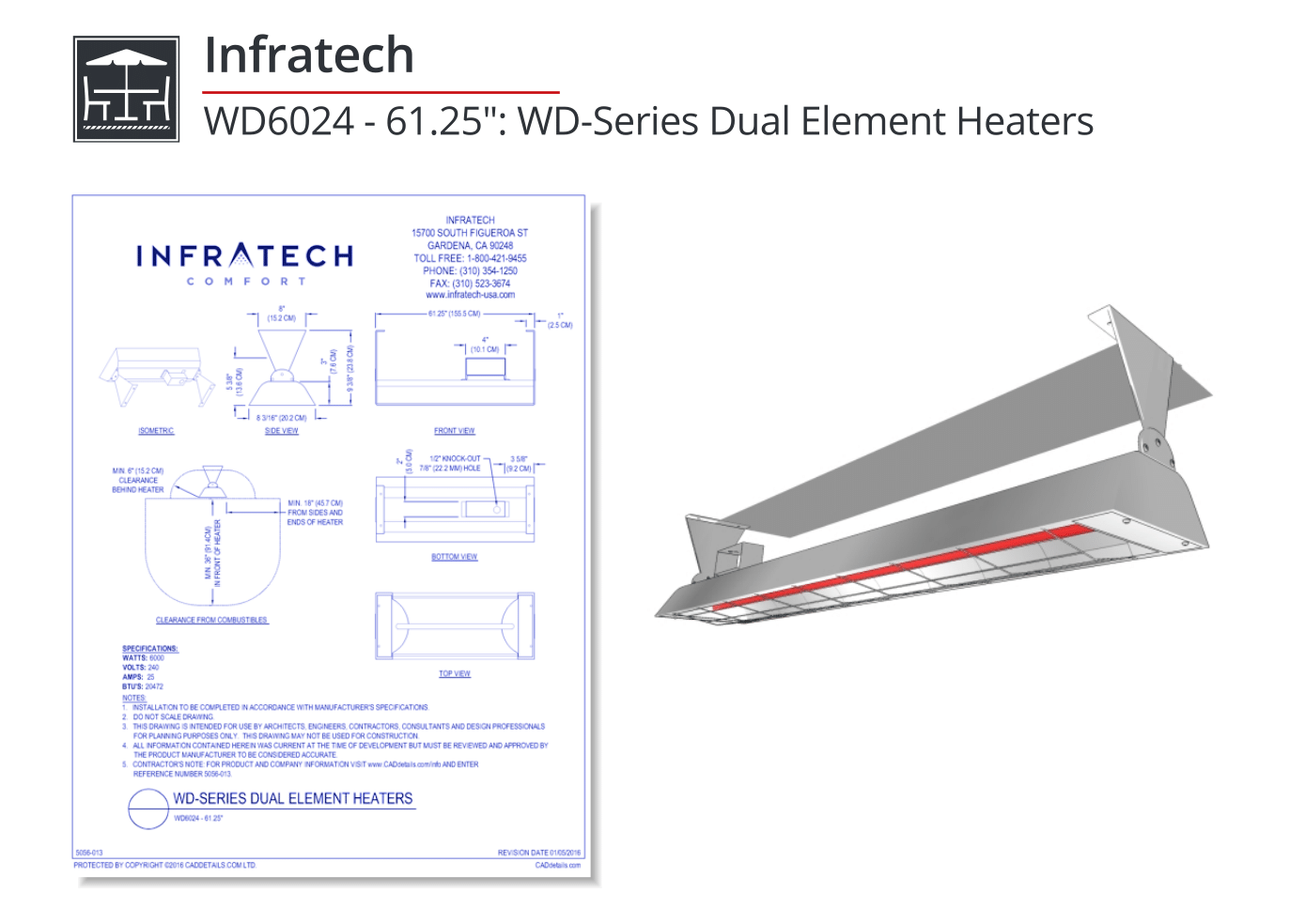

Dual element fixtures produce more concentrated heat and can be mounted up to 14 feet high. These fixtures are ideal for use in settings that require higher mounting height requirements, or when more intense directional heat is desired. Dual element heaters are available in 3,000, 4,000, 5,000 and 6,000 watt models.


Fire Pits


The Kalea Bay outdoor linear fireplace by Firegear Outdoors is so versatile, it can be installed single-sided or as a see-through fireplace.



The Kalea Bay outdoor linear fireplace by Firegear Outdoors is so versatile, it can be installed single-sided or as a see-through fireplace.



The KWST42 System is a great choice for your outdoor gathering area. Included is a Steel Stud Framing Kit to add some extra pizzazz to this stylish model. The fireplace itself features stainless steel reflective sidewalls as well as a stainless steel ceiling panel. The fireglass, glass windshield, and glass windshield cover are also included.


Outdoor Fans


This rustic 44 inch Hatteras Bay™ Patio fan is a charming accent piece that will complement any space. Featuring a rich, Weathered Copper Powder Coat finish and a broad Fresnel Lens, this design is sure to leave an impression in your home.


Looking for even more design files for the patio? Browse CADdetails' CAD Drawings library, or immediately download a large selection of patio design files by clicking  here
