Design an Inclusive Play and Recreation Space with These Top 20+ CAD Drawings

Design an Inclusive Play and Recreation Space with These Top 20+ CAD Drawings

Are you building an atmosphere of welcome that builds communities via play and recreation? Explore different playground accessories, site decor, and more. You can browse and download the top 20+ CAD drawings from the CADdetails product selections for use in any of your design projects.

At GameTime, They enrich the lives of children and communities through play. Because as product engineers and parents, manufacturers, and members of our home communities - They believe in play. Since 1929, They have brought meaningful research around the importance of play to the design, engineering, manufacture, and delivery of play equipment. Their work has elevated industry standards on safety, physical and mental development, inclusion, and intergenerational interaction. Uniting deep research with fun, information with inspiration, and science with play.

PLAY STRUCTURES


Greenfields Outdoor Fitness is a leading provider of outdoor fitness equipment to parks, schools, senior centers, greenspaces, colleges and universities, and the U.S. Military. Greenfields; commitment to inclusive fitness is reflected in its patented Signature Accessible line (U.S. patents 9,079,069 and 11,130,039), which allows those in wheelchairs to exercise alongside others without having to transfer. The product line includes machines designed to both strengthen the upper body muscles uses to propel manual wheelchairs and also exercise the reverse muscles to help prevent injuries. Include the whole community by pairing Greenfields’ Signature Accessible line with Functional Fitness units, the Legacy Series units, or Professional Series units. Greenfields offers the largest selection of outdoor fitness activities for users of all levels of fitness.

EXERCISE EQUIPMENT


A solid bike rack with a minimal footprint, the 2900 Series – MUG Bike Rack from Maglin Site Furniture features a vertical design allowing for single units in smaller spaces or grouped configurations. The all-steel welded frame and tube post design can perform double duty as a bollard option for pedestrian areas and may be powdercoated in contrasting colors. The MUG Collection is designed by Gibillero Design. With lightweight looks and luxurious lines, L-Series benches give off a legendary sit-and-stay-awhile vibe. Choose between backed and backless benches in two different lengths. Optional end and center arms are easy to add to a standard bench and built wide for maximum comfort. Mild steel lasered and formed ends are e-coated and powdercoated for protection. The L-Series slats and frame can be painted to help you stand out or blend in. Also available in Ipe and Thermally Modified Ash wood. The L-Series is designed by Geoffrey Lilge.

SITE FURNISHINGS


Outdoor-Fit Exercise Systems is a leading manufacturer of compact, safe, and super durable outdoor fitness equipment that can withstand any coastal, arctic, or desert climate. Their equipment has been installed in hundreds of cities across North America and is a unique and functional addition to any park, pocket park, school campus, corporate campus, HOA, or resort. Outdoor-Fit believes that outdoor fitness equipment should provide users of any fitness level and ability with the same fitness benefits they would get using indoor fitness equipment. This is why they incorporate adjustability, resistance, and assistance into the design of all their products. All Outdoor-Fit's products are ASTM F3101-21a approved. All pinch points, entrapment areas, and crush zones have been eliminated as building safe and low-maintenance equipment is always top of mind. Outdoor-Fit doesn't build play equipment for adults. They build commercial indoor fitness equipment built for the great outdoors.

OUTDOOR FITNESS & PLAY EQUIPMENT

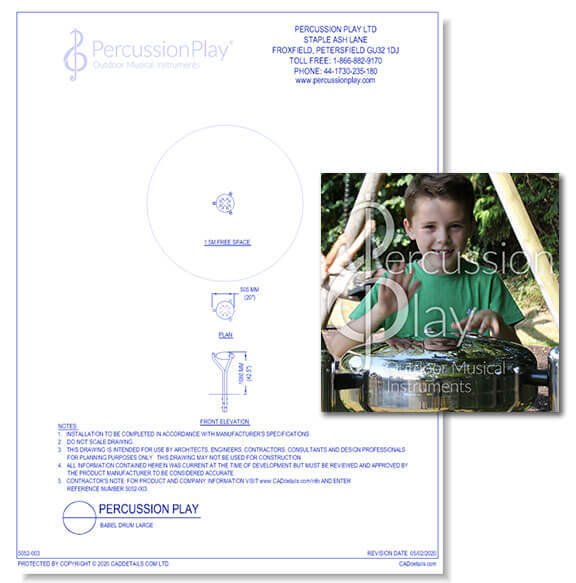

Percussion Play has created a diverse group of outdoor musical instruments which make perfect additions to an abundance of settings. Percussion Play instruments make musical expression accessible to everyone, everywhere. There is no need for musical direction and any combination of our musical instruments can be played together harmoniously, these are enjoyable and attractive musical instruments which you’ll want to come back and play again and again.

MUSICAL PLAY EQUIPMENT


Their playgrounds are made from high-quality recycled materials that are built to last because they care about the environment and the children they serve. Their commercial playground equipment can last up to two times longer than traditional steel playground equipment. With a longer life span and eco-friendly initiative, it’s easy to see why more people are trusting EcoPlay Structures for their playgrounds.

PLAYGROUNDS


An important step in creating a safer play space is selecting the right playground surfacing solution. Surfacing products from GT Impax are engineered to work with GameTime play systems and are matched to the specifications required for adequate safety surfacing, including the correct calculation of play equipment fall heights. Their playground surfaces are certified to meet all applicable ASTM standards, including F1292 for impact attenuation and F1951 for wheelchair accessibility.

PLAYGROUND SURFACING


A world leader in the design and manufacturing of innovative commercial playgrounds and outdoor recreation equipment for over 40 years! KOMPAN offers innovative, high-quality products that combine low-maintenance, stringent environmental standards with exceptional safety and play value. KOMPAN's innovative products motivate active play to promote and support health, learning, and social development. KOMPAN Playgrounds' research-based designs ensure optimal play value for ages 6 months to adult.

CAROUSELS


Specified Play Equipment Company™ was founded by David Yosso. The type of manufacturer's SPEC™ chooses to work with provides self-regulated play experiences for all ages and abilities to exercise risk, failure and mastery. SPEC is the Exclusive Partner and Distributor of Berliner, BCI Burke, Lappset, Free Play and mmcité. SPEC hand selects manufacturers that share his philosophy on play, landscape and sport/fitness. In addition, SPEC created Black Locust™ which designs, develops and engineers custom native black locust wood play pieces for truly sustainable, eco-friendly, nature-based experiences.

SWINGS


The name Shaw is becoming the definitive brand in the synthetic turf market and Shawgrass is leading the way with a mix of products for residential/commercial landscape applications, pets, recreation and golf. Shawgrass products are designed and developed by the same research and development team that is responsible for the world-class athletic fields created by Shaw Sports Turf. Shawgrass products are designed to provide the look of natural grass and the performance characteristics that deliver extreme durability. Shawgrass products are also cooler, thanks to innovative technology like HydroChill, designed to keep you comfortable, even in extreme heat.

TURF


Interested in more CAD Drawings? Download CADdetails’ QuickPacks to instantly receive design files ready for use in your next project.
